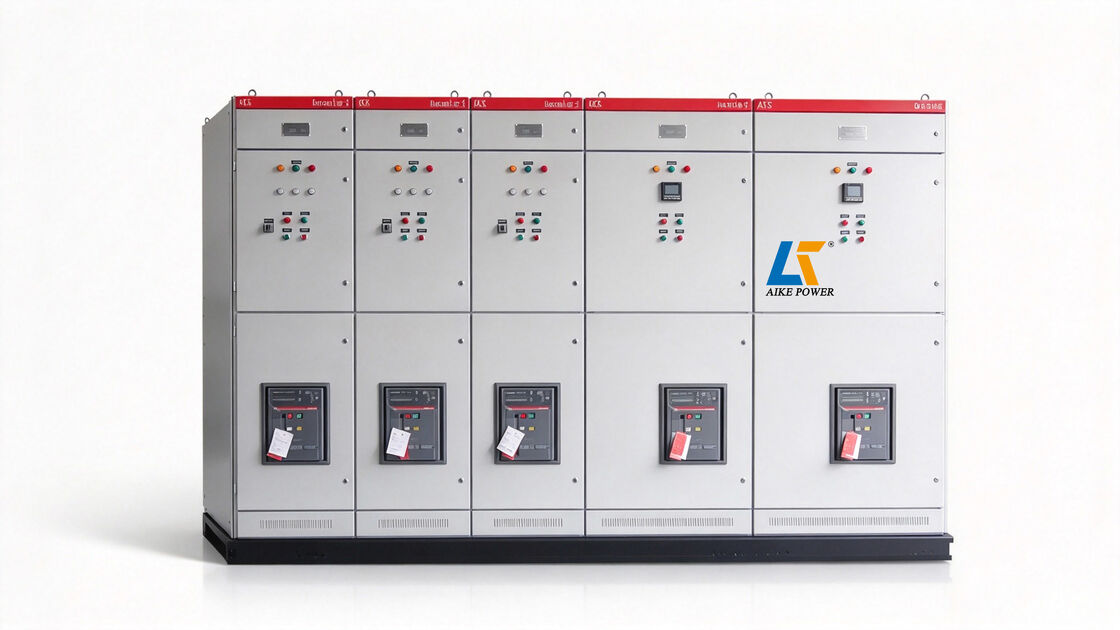

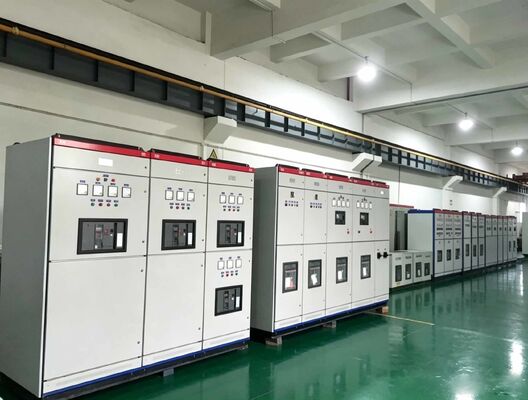

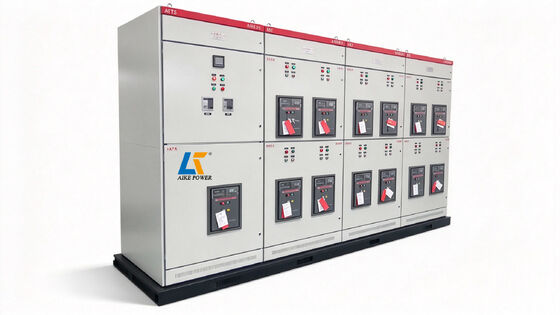

Multi-Generator Parallel Busbar Cabinet

Our Multi-Generator Parallel Busbar Cabinet is custom power distribution panel specially developed for multi-genset parallel projects in data centers and large power stations. It realizes synchronous power confluence of multiple generator sets, with full electrical protection integrated inside. The cabinet supports seamless matching with many well-known genset brands including Yuchai, Weichai, Perkins, MTU, SDEC and CSSC.

This busbar cabinet balances load distribution among multiple running gensets, automatically synchronizes voltage and frequency, isolates faulty units instantly, and guarantees stable continuous power supply for large-scale power projects. We can customize rated current, cabinet dimension and protection configuration to match your site requirement.

1600A ATS distribution cabinet；Deepsea parallel controller

• ✅ Multi-genset synchronous confluence & automatic load sharing, stable parallel operation for multiple generator units
• ✅ Strong cross-brand compatibility, adaptable to most mainstream diesel / gas generator brands
• ✅ Comprehensive electrical protection: reverse power, short circuit, over current & voltage protection to secure the whole power system
• ✅ High-quality copper busbar, low resistance, high current carrying capacity and excellent heat dissipation
• ✅ Modular cabinet structure, simple installation, convenient maintenance and easy on-site expansion
• ✅ Customizable rated current, IP grade and control solution for different large power engineering projects
• ✅ Perfect matching with ATS distribution cabinet and genset parallel controller to build a complete power backup system

This Multi-Generator Parallel Busbar Cabinet is designed for projects requiring multiple generators to run in parallel, widely applied in:

1. Data Center standby continuous power supply
2. Large industrial power station & off-grid power plant
3. Mining field multi-genset power supply system
4. Commercial complex uninterrupted power supply project
5. Remote island large-scale power generation projects

The cabinet meets 50Hz/60Hz different grid standards, suitable for global engineering projects in Middle East, Africa, Southeast Asia and Central Asia.

1. 12 months warranty for the whole cabinet from the date of shipment.
2. 24 months quality guarantee for core copper busbar components.
3. Lifetime free technical consultation, remote on-site parallel debugging guidance.
4. Cost-price spare parts supply after the warranty expires.
5. Free pre-sales technical service: load analysis and parallel power system scheme design.

Q1: What is multi-generator parallel busbar cabinet used for?

A: It is a power distribution panel to connect multiple generator sets, realize synchronous parallel running. It collects power from each genset through copper busbar and distributes power to loads. It can automatically share load between generators and cut off faulty unit to ensure power safety.

Q2: Can this cabinet work with Yuchai, Perkins, MTU generator sets?

A: Yes. Our parallel busbar cabinet supports most mainstream genset brands including Yuchai, Weichai, Perkins, MTU, SDEC, CSSC. We will match corresponding parallel controller according to your generator brand and model.

Q3: How many generator sets can this parallel cabinet support?

A: Standard version supports 2~8 units genset parallel. If you need more units, we customize busbar structure and control system.

Q4: Can you customize rated current of the busbar cabinet?

A: Yes. We can customize 630A,1000A,1600A,2000A and higher current cabinet according to your project load demand. Cabinet size, protection grade also can be customized.

Q5: What accessories need to match with this parallel busbar cabinet?

A: It usually works with ATS distribution cabinet and generator parallel synchronizing controller. We can provide the complete power system solution together.
