Fully Automatic Power Transfer ATS Control Cabinet with Unattended Operation and Compact Integrated Design

This ATS (Automatic Transfer Switch) control cabinet automatically switches electrical load between utility mains power and a backup diesel generator. When the mains supply fails or goes out of tolerance, the cabinet signals the generator to start, then transfers the load to the generator. When mains power returns to normal, it transfers the load back and shuts down the generator after a cool-down period.

Designed for unattended operation, this ATS cabinet eliminates the need for on-site personnel during power outages. It is widely used in commercial buildings, hospitals, factories, and residential complexes across Nigeria, Southeast Asia, and other regions with unreliable grid power.

Core Features

1. Fully Automatic Power Transfer

   • Continuous monitoring of mains voltage and frequency
   • Automatic generator start command upon mains failure
   • Smooth load transfer between mains and generator
   • Automatic re-transfer to mains when power is restored
   • Adjustable time delays for engine warm-up and cool-down

2. Unattended Operation

   • No manual intervention required during power outages
   • LED status indicators: Mains OK, Generator OK, Transfer Position, Fault
   • Designed for 24/7 automatic operation
   • Suitable for sites without dedicated power station staff

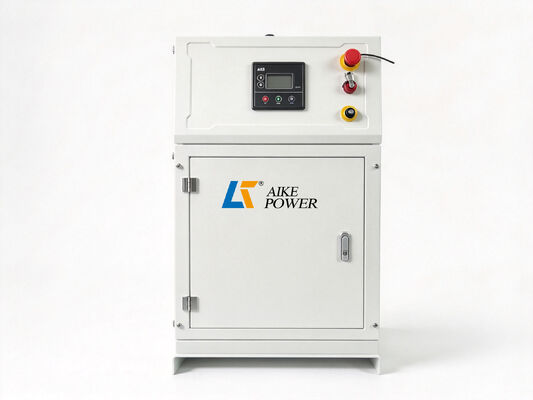

3. Compact Integrated Design

   • All-in-one cabinet: ATS switch, controller, protection devices, terminals
   • Single-door cabinet with lockable handle
   • Clean front panel with minimal controls
   • Space-saving footprint for commercial electrical rooms

4. Reliable Protection

   • Over-current and short-circuit protection
   • Under-voltage and over-voltage protection
   • Phase failure protection (3-phase models)
   • Mechanical interlock prevents simultaneous connection of both sources

Technical Parameters

Application Scenarios

• Nigeria: Commercial building backup power in Lagos, Abuja
• Southeast Asia: Factory and mall emergency power systems
• Africa: Hospital, bank branch, telecom base station backup power
• Industrial: Small-to-medium sized plants with unreliable grid supply

FAQ
