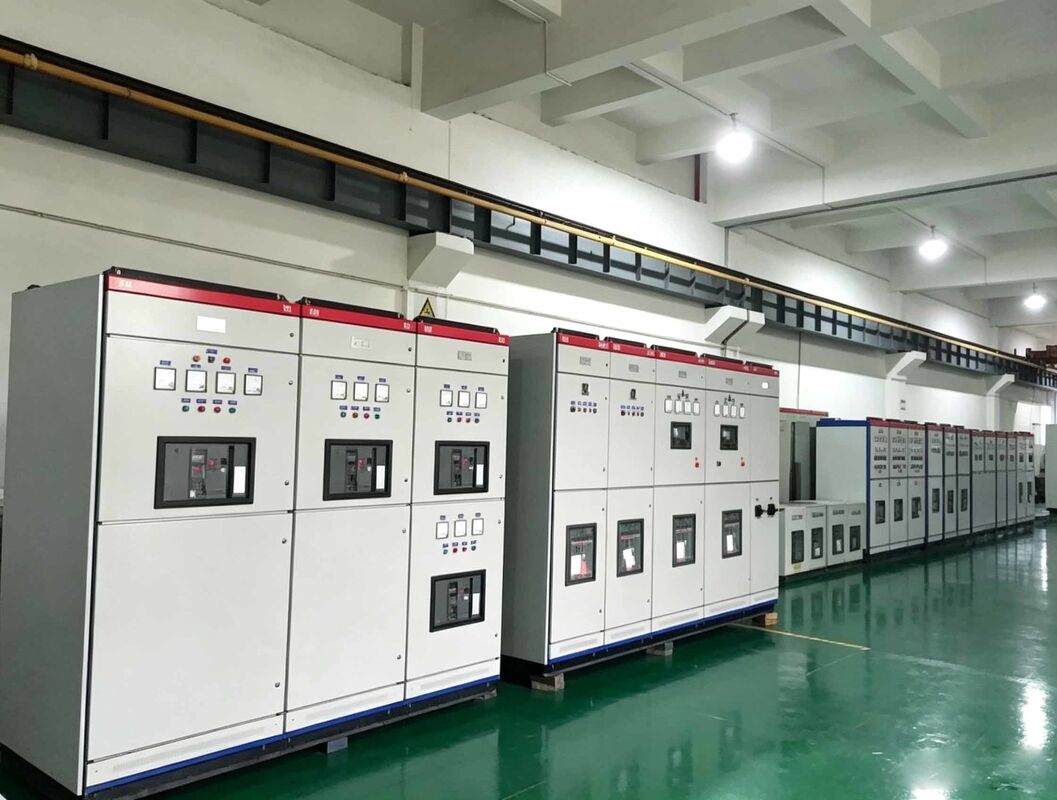

1600A ATS Automatic Transfer Switch Cabinet

Short Description

Aike Power 1600A ATS Automatic Transfer Switch Cabinet is an automatic mains-generator changeover distribution panel. It automatically detects mains failure and triggers backup genset startup and power switching to avoid blackout losses. Fully compatible with multi-brand diesel and gas generator sets, it is widely used for factory, hospital, and oilfield emergency backup power projects worldwide.

Product Overview

Different from generator host equipment, the 1600A ATS automatic transfer switch cabinet is a core supporting power distribution device for emergency power systems. It realizes fully unattended switching between utility mains power and backup generator power.

When the municipal power grid fails, drops in voltage or loses phase, the ATS cabinet will instantly send a starting signal to the standby generator set. After the genset stabilizes voltage and frequency, the system automatically switches the load to generator power supply. Once grid power recovers normally, it automatically switches back to mains power and shuts down the generator set to save fuel consumption.

This 1600A ATS panel adopts universal electrical logic and reserved standard signal interfaces, achieving high compatibility with diesel generators, gas generators and container power units of all mainstream brands. It is the most widely used distribution solution for industrial backup power, medical emergency power and oilfield remote power supply projects.

Related Links:

Data center silent generator unit

Yuchai 200kW plastic factory generator set

Core Advantages

1. Fully Automatic Unattended Switching Real-time monitoring of grid voltage, phase sequence and power status. The whole process of genset start-up, power switching and grid recovery switching is fully automatic without manual duty, solving the problem of delayed power supply in remote oilfields and unattended factories.
2. Dual Mechanical & Electrical Interlock Safety Design Equipped with mechanical interlock and electrical interlock protection structure to completely prevent parallel connection of mains power and generator power. It eliminates short-circuit risks and ensures zero safety accidents during frequent switching in hospital and industrial critical power scenarios.
3. Ultra-Wide Generator Compatibility Adaptable to all brands of diesel and gas gensets including Yuchai, CCEC, Weichai, SDEC, Perkins and MTU. Compatible with Deepsea and ComAp intelligent control systems, supporting seamless docking with open frame, silent and container generator units.
4. Industrial-Grade Durability & Global Environmental Adaptability The cabinet adopts thickened cold-rolled steel plate and anti-corrosion electrostatic spraying process. Standard IP30 protection grade, customizable IP54 outdoor waterproof and dustproof grade, adapting to high temperature, humid and dusty working conditions in oilfield and industrial park environments.
5. Remote Monitoring & Expandable Function Reserved RS485 communication interface, supporting remote cloud data monitoring, switching record query and fault alarm. It can be matched with multi-unit parallel power station system to realize centralized management of large-scale factory and park power supply.

Technical Parameter Table

Application Scenarios

This 1600A ATS switch cabinet is designed for global industrial emergency power supporting scenarios, widely adapted to various high-reliability power demand sites.

Factory Production Park: Prevent production shutdown and economic losses caused by sudden power failure, ensure continuous operation of assembly lines and automation equipment.

Hospital & Medical Center: Guarantee uninterrupted power supply for operating rooms, ICU and precision medical equipment, meeting medical power safety standards.

Oilfield & Mining Station: Support remote unattended oil and gas field backup generator system, adapting to complex outdoor working conditions.

Commercial & Data Center: Cooperate with silent container generator sets to build high-reliability emergency power guarantee system.

FAQ

Q1: Is this 1600A ATS cabinet compatible with gas generator sets?

A: Yes. The ATS panel supports both diesel generators and various gas generator units including coal mine gas and associated petroleum gas gensets. We can customize signal logic according to different controller brands.

Q2: Does the ATS support manual switching operation?

A: Yes. It adopts automatic and manual dual design. Manual operation can be used for equipment maintenance, debugging and emergency switching, with double interlock protection to ensure operational safety.

Q3: Can this ATS cabinet be used outdoors for oilfield projects?

A: Standard version is IP30 indoor type. We support customized IP54 waterproof, dustproof and sun-proof outdoor cabinet, specially suitable for oilfield and open-air industrial projects.

Q4: What power generator does 1600A ATS match?

A: It is mainly suitable for 800kW to 1200kW large and medium-sized generator sets, supporting single unit standby and multi-unit parallel power station systems.

Q5: Does the ATS cabinet support remote monitoring?

A: Yes. Standard reserved RS485 communication interface supports remote real-time monitoring of power status, switching records and equipment faults, realizing intelligent unattended management.

Warranty & Service

All Aike Power power distribution cabinets are 100% factory tested and inspected. Standard warranty period: 15 months after delivery or 1000 working hours (whichever comes first). We provide global technical guidance, wiring drawings, installation guidance and lifelong after-sales consulting services for overseas factory, hospital and oilfield supporting projects.
