Fortrust GEC6110D Generator Control Cabinet with IP54 Protection and Manual & Auto Operation for Diesel Generators

This Fortrust GEC6110D generator control cabinet is a complete, factory-wired control solution for diesel generator sets. Built around the Fortrust GEC6110D industrial controller, it provides full manual and automatic start-stop control, real-time engine parameter monitoring, and comprehensive fault protection for standalone generator applications.

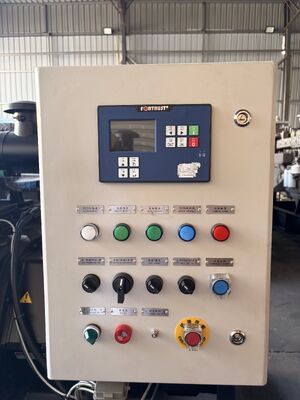

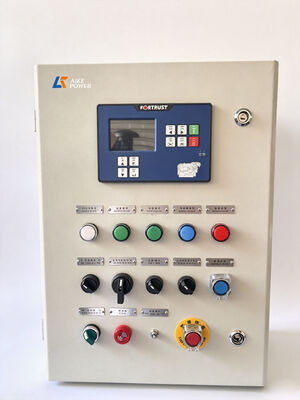

Designed for harsh environments, this control cabinet is widely used in mining sites, oil field power stations, and remote industrial projects across Africa and the Middle East. The rugged steel enclosure with front-panel pushbuttons, rotary switches, and an emergency stop button makes on-site operation safe and straightforward for power station technicians.

Core Features

1. Genuine Fortrust GEC6110D Controller
   • 3.5-inch color LCD display with backlight
   • English & Chinese interface selectable
   • Real-time monitoring: voltage, current, frequency, power, engine speed, oil pressure, coolant temperature
   • Four-level protection: low oil pressure, high engine temperature, over speed, start failure
2. Complete Manual & Auto Operation
   • Manual mode: local start/stop, emergency stop for on-site operators
   • Auto mode: automatic start upon remote start signal or mains failure
   • Front-panel pushbuttons: Start, Stop, Reset, Manual/Auto selector
   • Rotary switches for control mode selection
3. Robust Industrial Enclosure
   • Powder-coated cold-rolled steel cabinet
   • IP54 protection rating: dust-protected, splash-proof from all directions
   • Lockable door for unauthorized access prevention
   • Designed for 24/7 continuous operation in dusty, high-temperature environments
4. Comprehensive Protection & Alarm
   • Visual and audible alarm indicators on front panel
   • Fault history recording on controller display
   • Emergency stop button (red mushroom head, twist-to-release)
   • Pre-alarm and shutdown protection logic

Technical Parameters

Application Scenarios

• Africa: Mining site power stations in Nigeria, Ghana, Congo
• Middle East: Oil field off-grid power projects in Saudi Arabia, UAE, Oman
• Southeast Asia: Manufacturing plant backup power systems
• Remote areas: Off-grid industrial facilities requiring on-site operator control

FAQ

Warranty Terms
