DSE8610 Multi‑Genset Parallel Synchronization Panel | Aike Power

Aike Power supplied DSE8610 Multi‑Genset Parallel Synchronization Panel (DSE8610 MKII) supports synchronizing up to 32 generator units with active & reactive load sharing. Perfect for large power station, data center multi‑genset redundant power system, compatible with electronic and non‑electronic diesel & gas gensets.

Product Overview

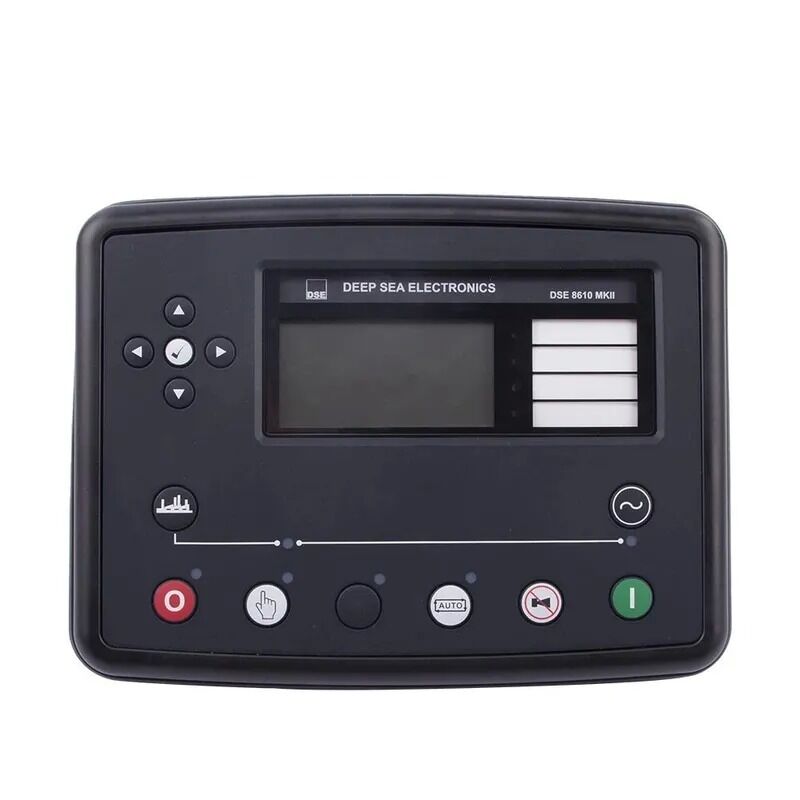

DSE8610 MKII is a high‑performance synchronizing and load‑sharing control module, widely used for multi‑generator parallel power plant projects. It can automatically complete voltage, frequency and phase detection, realize precise synchronization and equal load distribution among multiple gensets, avoiding overload or idle operation of single unitDeep Sea E....

Different from ordinary generator auto‑start controllers, this parallel synchronization panel integrates built‑in PLC editor, multi‑channel CAN / Ethernet / RS485 communication ports, supporting complex power station logic customization. It works with open‑type, silent, container diesel and gas generator sets for data center, utility‑scale standby power and remote industrial power projects globally. Aike Power provides full‑set matching debugging technical service for overseas EPC contractors.

Core Technical Parameters Table

Core Advantages

• Supports up to 32‑unit parallel & precise load sharing Real‑time active and reactive power distribution among gensets. Prevent single‑unit overload, optimize fuel consumption and extend whole fleet service life, ideal for expanding large‑scale power stations.

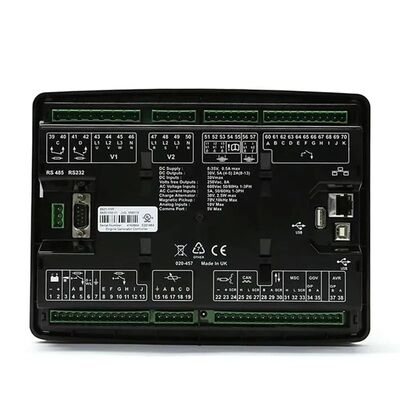

• Rich communication & remote monitoring capability Multiple communication ports work simultaneously. Support Modbus protocol docking with BMS building management system, remote parameter configuration, historical alarm log query via PC configuration software.
• Built‑in PLC for custom project logic Powerful internal PLC editor enables custom‑tailored working logic for special projects, such as coal‑bed methane power station, low‑temperature cold‑region power plant, customized startup‑shutdown sequence.
• Wide generator compatibility Seamlessly match diesel, gas, HFO generator sets of Yuchai, CCEC, SDEC, Perkins, MTU. Support both open‑frame and container genset parallel transformation projects.
• Complete protection & event record 250 pieces historical event storage, reverse‑power protection, over‑load alarm. Quick fault diagnosis for unattended large‑scale power station sites, reduce on‑site maintenance difficulty.

Typical Application Scenarios

• Large‑scale industrial standby power station:Multi‑unit redundant power supply for heavy‑industry park
• Data Center(IDC):Multi‑container genset parallel backup power guarantee
• Remote mine & oilfield power plant:Expandable multi‑genset off‑grid power system
• Commercial complex, hospital central power system:High‑reliability multi‑source emergency power solution

Target regional markets:Europe, Southeast Asia, Middle East large‑scale EPC power projects, global generator system integrators.

Related Products

• Multi‑unit Parallel Silent Container Generator
• Full Deepsea Controller Series

FAQ

1. Q1: How many generator sets can DSE8610 MKII synchronize at maximum?
2. A: It can realize parallel synchronization and load‑sharing for up to 32 generator units, supporting phased expansion of power station capacity.
3. Q2: Does DSE8610 work with gas generator sets?
4. A: Yes. It is compatible with diesel, coal‑bed methane, associated petroleum gas generator sets. Custom PLC logic can be adjusted for gas engine special requirements.
5. Q3: Can I monitor the controller status remotely?
6. A: Equipped with Ethernet, RS485 interfaces, support Modbus TCP/RTU for remote monitoring and parameter modification via PC configuration software.
7. Q4: Does Aike Power provide on‑site commissioning guidance?
8. A: We supply parameter setting documents and overseas remote technical guidance for multi‑genset parallel projects. Engineering support drawings are available for EPC partners.
9. Q5: Is heated display version available for cold‑region projects?
10. A: Optional heated‑display variant for sites down to‑40℃, suitable for Russia and northern low‑temperature power station projects.

Warranty & Service

Aike Power supplies genuine DSE series control modules. Every unit undergoes function testing before shipment. Standard 12‑month warranty. We provide technical documentation, parameter configuration guidance and spare‑parts support for global power station integrators.
