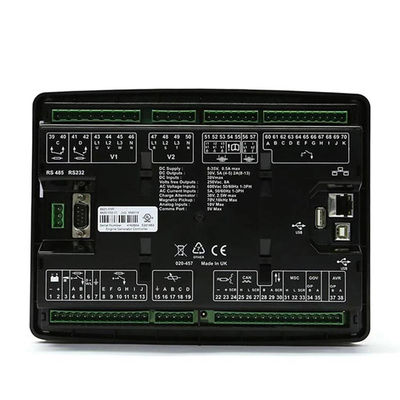

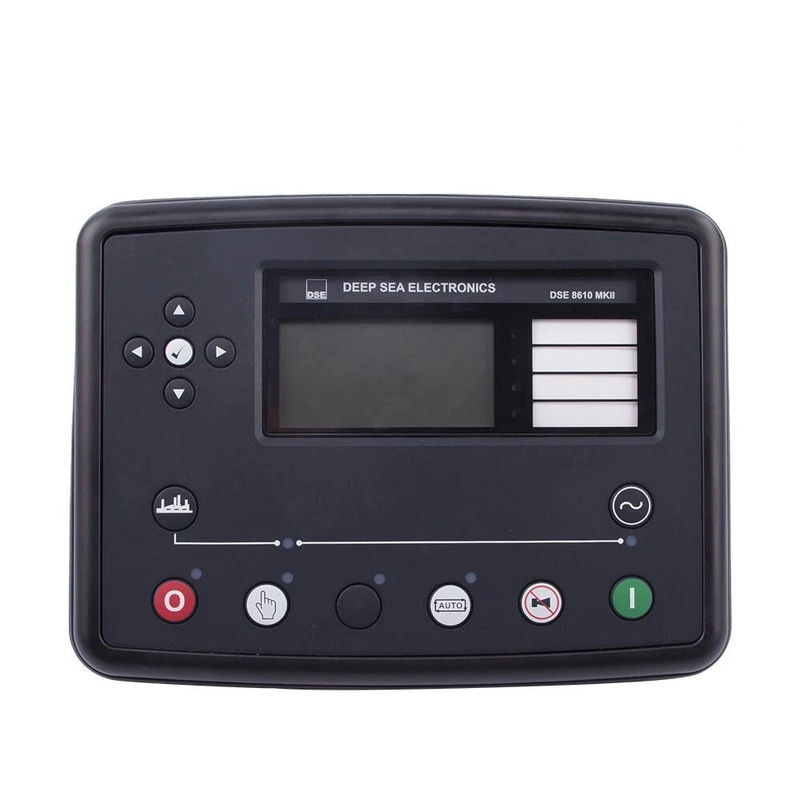

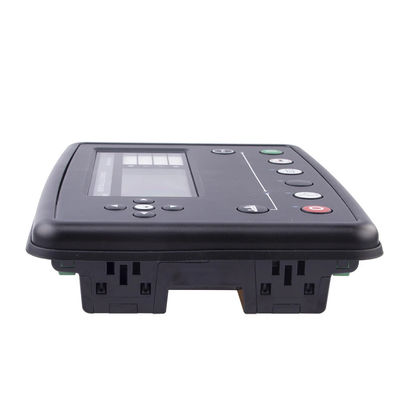

Deepsea DSE8610 MKII Auto Start Diesel Generator Controller Module Generator Set

DSE8610

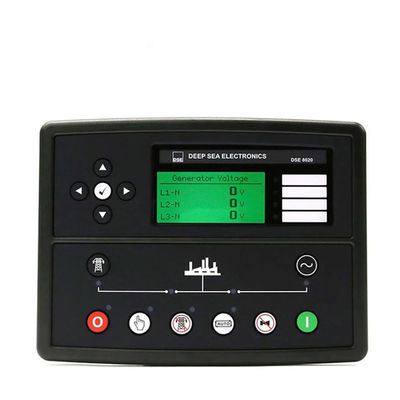

Deepsea DSE8610 DSE8620 MKII Auto-Start Diesel Generator Controller Module Generator Set Parallel Control Panel Panel Multifunction

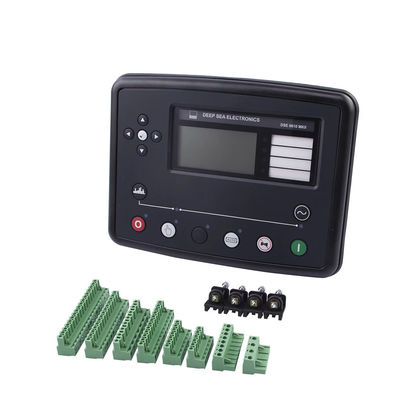

Deepsea DSE8610 MKII Diesel Generator Controller Module AC Generator Control Panel Panel Accessories
The DSE8610 self-starting load sharing parallel module can be used to control EFI or non-EFI and gas engines, providing advanced engine monitoring and protection functions. It realizes intelligent load distribution control, with advanced functions, convenient debugging, simple and easy to use.
The module intelligently distributes loads, relying on the synchronization indicator and load distributor inside the module to automatically achieve parallel connection. The module has flexible output and can be directly connected to commonly used governors and voltage regulators
The module supports up to 32 generator sets and 32 parallel mains lines, and one system supports up to 40 power lines. For example, 32 generator sets are connected in parallel with 8 mains (8860 module is required to manage the parallel connection of mains and generator sets)
• With manual/automatic function
• With controller, load distributor and synchronizer functions (3 functions in one)
• Intelligent and user-friendly parallel operation, simple operation, similar to a "point-and-shoot camera"
• Supports EFI or non-EFI or gas engines
• Displays engine parameters, generator parameters, unit power and bus parameters without any instrument
• Supports multiple languages, and the display content can be edited (including Chinese)
• With clipping peak adjustment function
• With engine and generator monitoring and protection functions
Engine speed, engine oil pressure, engine water temperature, battery voltage, generator voltage, generator current, engine frequency
• RS232, RS485, program setting port, network port, and U disk port can be used at the same time
• Through DSE8005 monitoring software (free), network monitoring (centralized monitoring) can be realized



Power Supply:DC(8-35)V

Case Dimensions: 300x 400 x 100(mm)
Panel Cutout: 68x 68(mm)

PARAMETER LIST



Function Item Parameter



Display	LCD(132*64)
Operation Panel	Silicon Rubber
Language	Chinese & English & Others
Digital Input	5
Relay Output	6
Analogue Input	3
AMF	-

AC System 1P2W or 2P3W or 3P3W or 3P4W
