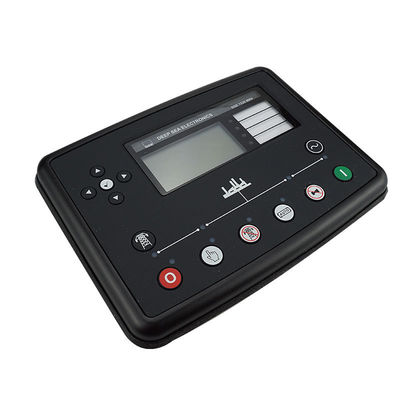

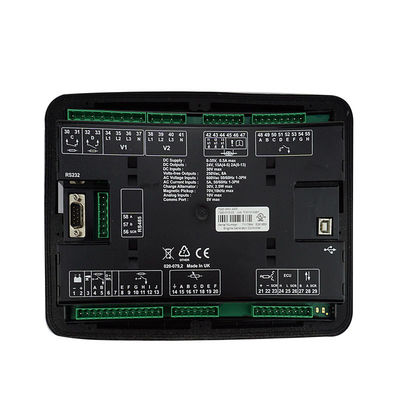

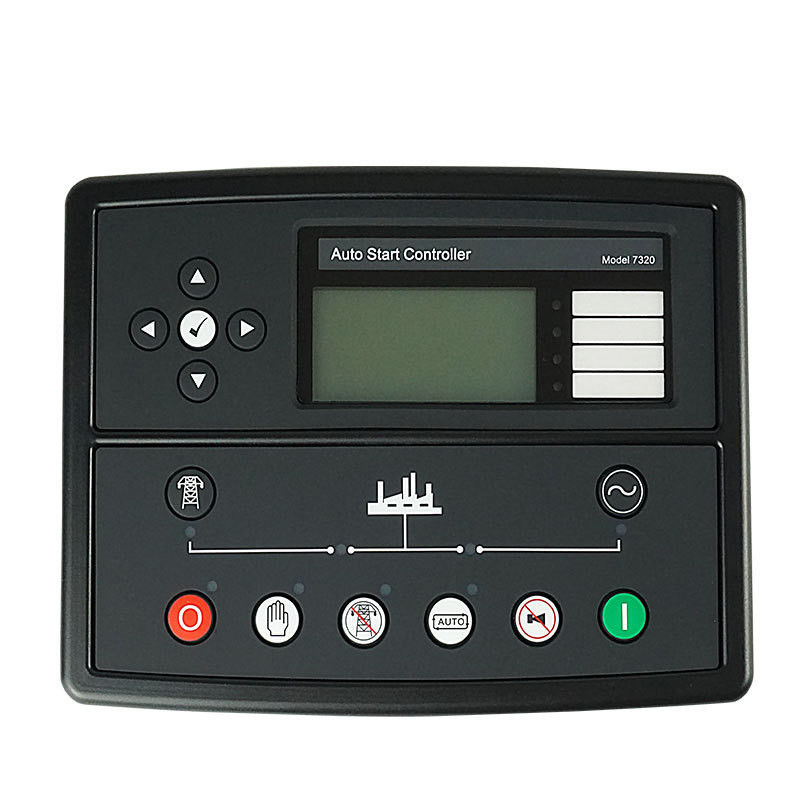

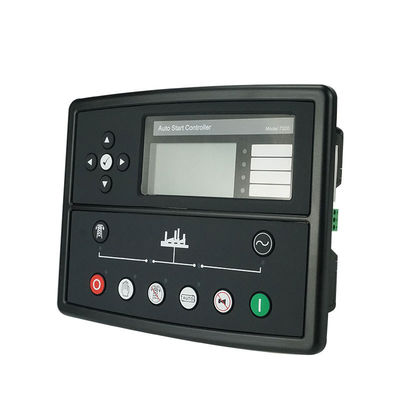

DSE7320 Control Panel Self-starting Controller Generator Accessories Control Module

Name: DSE7320 Control Panel Self-starting Controller Generator Accessories Control Module
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: DSE7320
Availability: InStock

Brand Name:	Deep sea
Model Number:	DSE7320
MOQ:	1
Price:	USD
Supply Ability:	10000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Package:

Box

Name:

Control Module

Supply Scope:

Complete Solution

After-sales Service Provided:

Spare Parts

Packaging Details:

Box

Supply Ability:

10000

Highlight:

Generator Accessories Control Module

Generator Control Module

Product Description

DSE7320

DES7320 series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carryout functions of

automatic start/stop, data measurement, alarm protection and three “remote” (remote control, remote measure and remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French with easy and reliable operation.

Power Supply:DC(8-35)V

Case Dimensions:240 x 181 x 42(mm)
Panel Cutout:132 x 64(mm)

Operating Temp. :(-30~70)℃
Weight:1kg

COMPLETE DESCRIPTION

DES7320 series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carryout functions of

DSE7320 series automatic controller uses micro-processing technique which can achieve

precision measurement, value adjustment, timing and threshold setting etc.. All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjust via PC. It can be widely used in all types of automatic control system for its compact structure, simple

connections and high reliability.

PARAMETER LIST

Function Item Parameter

Display	LCD(132*64)
Operation Panel	Silicon Rubber
Language	Chinese & English & Others
Digital Input	5
Relay Output	6
Analogue Input	3
AMF	-

AC System 1P2W or 2P3W or 3P3W or 3P4W

Alternator Voltage (15~360)V(ph-N)

Alternator Frequency	50 or 60Hz
kW/Amp Detecting & Display	-
Programmable Interface	USB
RTC & Event Log	-
Scheduled Start Genset	-
Maintenance	-
DC Supply	DC(8~35)V
Case Dimensions(mm)	24018142
Panel Cutout(mm)	240*181
Operating Temp.	(-30~+70)℃
