1000L Horizontal External Generator Fuel Tank | Aike Power

Aike Power 1000L Horizontal External Generator Fuel Tank is compact auxiliary fuel storage for 200‑500kW diesel generator sets. Equipped with visual transparent level gauge, it extends continuous running hours for construction sites and small remote mine projects. Single‑wall carbon steel as standard, bunded double‑wall anti‑leak structure optional to meet overseas site environmental requirements.

Different from the small built‑in base tank of generator sets, this 1000L horizontal external fuel tank acts as independent auxiliary fuel storage solution for medium‑power gensets. It solves the problem of short working hours of original generator fuel tank, greatly reducing frequent refueling work for construction sites, small open‑pit mines and off‑grid remote worksites.

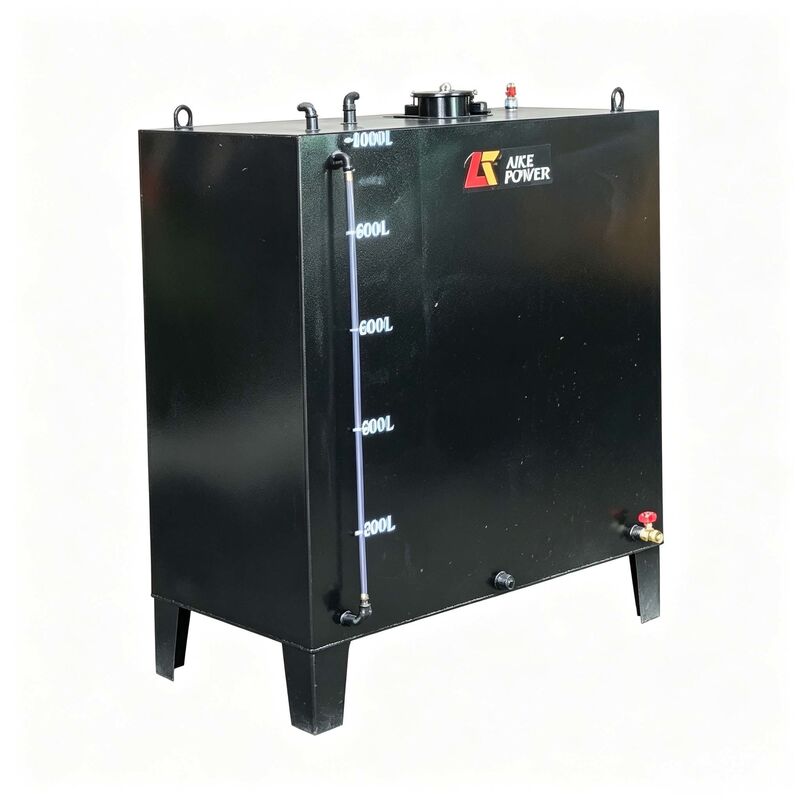

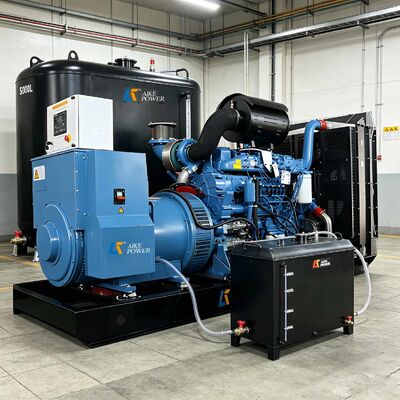

Adopting ground‑mount horizontal layout, this tank can be placed beside open‑type or silent generator units, connected to genset via external fuel pipelines. Transparent visual level gauge comes as standard for real‑time fuel‑level observation. Single‑wall carbon steel is standard configuration, bunded double‑wall leak‑proof version is optional for regions with strict environmental rules. Aike Power supports port modification to match Yuchai, CCEC, SDEC, Weichai series generator sets.

• ✅ Compact size for medium‑power gensets Compact footprint fits limited‑space construction sites and small mine projects. Perfect match for 200‑500kW generator sets, effectively prolong continuous working cycle without frequent refueling.
• ✅ Visual real‑time fuel monitoring Equipped with transparent liquid level gauge as factory standard. Operators can directly check remaining fuel without extra instruments, convenient for daily site operation.
• ✅ Optional bunded double‑wall leak‑proof design Optional secondary containment bunded structure prevents fuel leakage risk, complies with environmental requirements for overseas construction and mining projects. Heavy‑duty anti‑corrosion coating adapts outdoor dusty working conditions.
• ✅ Wide compatibility & easy installation Reserved standard pipeline interfaces, compatible with multiple brands of medium‑power generator sets. Simple ground installation, Aike Power provides connection suggestion drawing for field engineers.
• ✅ Customizable auxiliary options Upgrade with remote level sensor, leak detector or heating trace for low‑temperature sites. Custom port position and paint color are available for project EPC orders.

• Construction temporary power site:Match silent / open‑type genset for urban and rural engineering projects
• Small‑scale open‑pit mine:Medium‑capacity fuel storage for remote small mining operations
• Off‑grid remote work camp:Auxiliary fuel storage for backup power supply system

Target markets:Southeast Asia, Africa small‑medium engineering contractors, regional mine EPC projects.

• 5000L Horizontal External Generator Fuel Tank
• Generator Spare Parts

Q1: What generator power is this 1000L fuel tank suitable for?

A: Mainly designed for 200‑500kW diesel generator sets. Our engineering team can calculate actual runtime according to genset fuel consumption data.

Q2: How many running hours can 900L usable diesel support for 300kW genset?

A: Approximately 14‑15 hours continuous runtime for 300kW generator set.

Q3: Does this tank support light heavy fuel oil storage?

A: Yes, it stores diesel and light HFO. Internal anti‑corrosion treatment will be adjusted for heavy fuel oil application.

Q4: Is double‑wall bunded version available?

A: Bunded double‑wall anti‑leak structure is optional, to satisfy local environmental protection regulations.

Q5: Can it be used in cold weather sites?

A: Standard model works from ‑30℃ to +55℃. Heating trace system can be selected for extreme cold locations to avoid fuel waxing.

Every Aike Power fuel tank completes pressure and leakage test before shipment. Standard 12‑month warranty period. We supply technical drawings, field installation guidance and global spare‑parts support for overseas customers.
