1.5MW Yuchai Container Gas Generator Set | Skid Mounted for Russia Cold Climate

Product Description

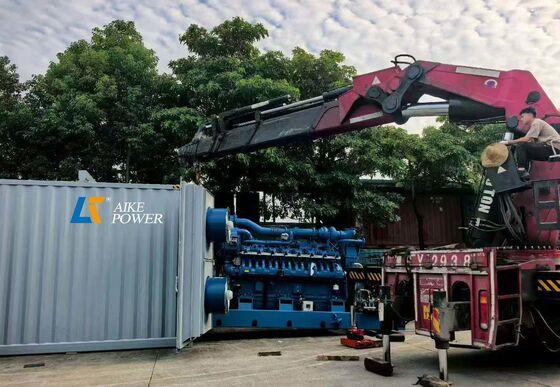

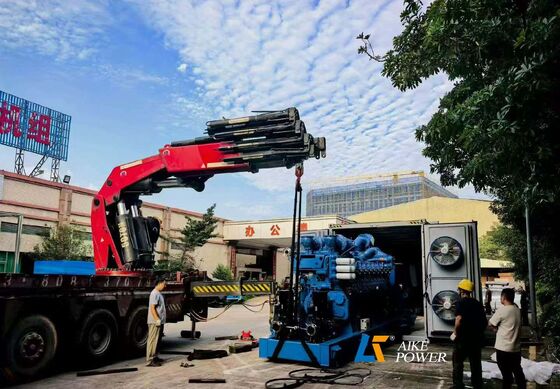

This 1.5MW containerized gas generator set adopts skid rail pre-assembly technology. The whole genset is fully mounted on the steel skid frame before loading into the insulated container, greatly simplifying on-site installation work for Russia remote power projects.

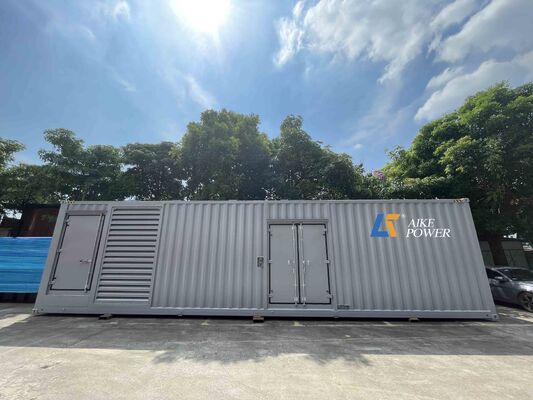

The container is tailor-made for Russia frigid environment. The container door adopts 5cm thick thermal insulation structure to prevent freezing and frost penetration. Multiple constant temperature heating plates and heating air conditioner are installed inside the cabin, to maintain stable internal ambient temperature for all electrical & gas components under sub-zero climate.

Inside the insulated container, all auxiliary parts are professionally arranged and fixed:

• Gas inlet valve group for gas pressure regulation
• Gas leak detection device for real-time gas leakage monitoring
• Genset intelligent controller for operation monitoring
• Motorized louver, easy manual & automatic operation for ventilation control

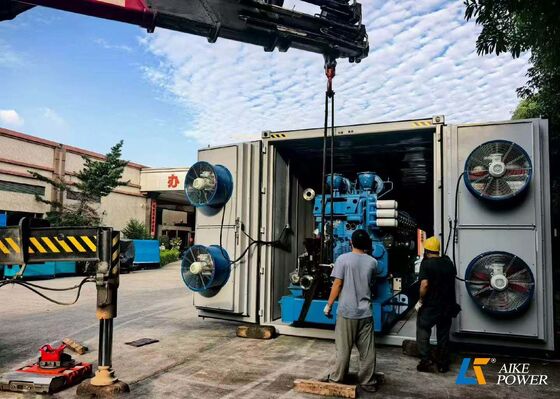

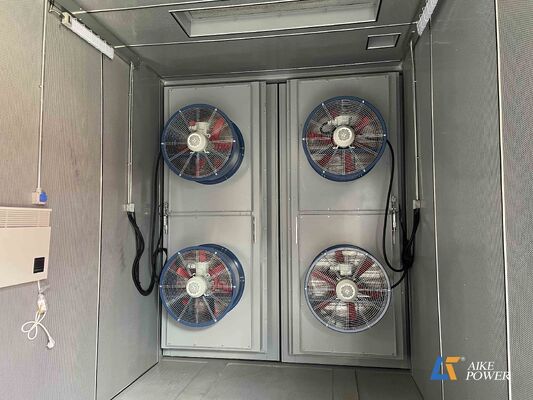

• 4 side-mounted exhaust fans for internal heat dissipation
• Horizontal radiator mounted on the top of container for cooling circulation

Every component inside the container is pre-wired, pre-piped and fixed at factory. After arrival at Russia project site, users only need to connect gas pipeline and power cable to put the power station into operation. The complete internal assembly design reduces site construction work and lowers failure risks in cold region.

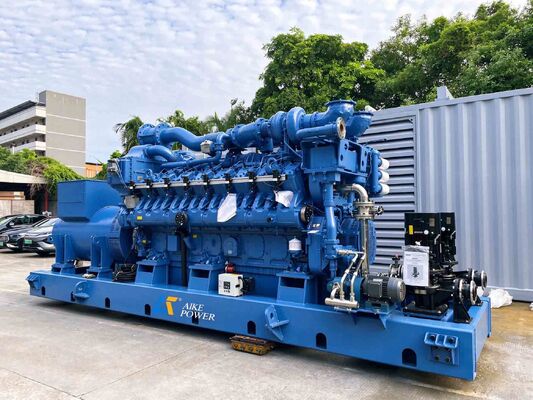

The unit is powered by Yuchai YC16VCG gas engine, matched with Firstall brushless synchronous alternator. It is designed for long-time continuous operation for natural gas power station projects in Russia.

Internal component gallery: Engine, Gas Valve Group, Flame Arrestor, Constant Temperature Heating Plate, Gas Detector, Motorized Louver, Exhaust Fan, Genset Nameplate, Top Horizontal Radiator, Container Assembly.

Technical Specification Table

Key Selling Points

1. Skid Rail Pre-assembly for Easy Container Loading

The whole genset is fixed on steel skid rail at factory. Complete assembly before entering container, minimize on-site assembly work in Russia cold site.

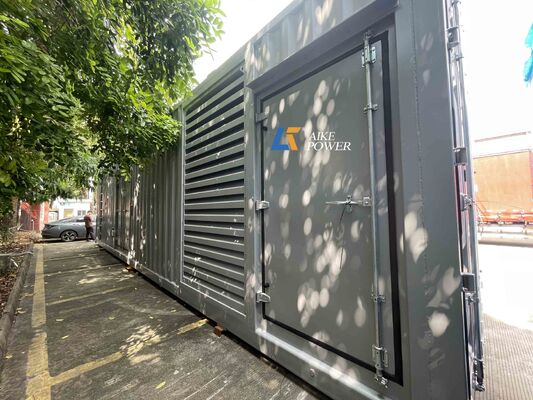

2. 50mm Thick Insulated Container Door, Anti-freezing Structure

Thickened thermal insulation door block cold wind and frost, protect all internal equipment from extreme low temperature.

3. Full Set Pre-installed Internal Components

Controller, gas valve group, gas leak detector, motorized louver, 4 side exhaust fans, heating plates and heating AC are all mounted inside container in factory. All pipeline & wiring finished before shipment.

4. Dual Cabin Heating Solution

Multiple constant temperature heating plates plus heating air conditioner, keep stable temperature inside container, guarantee normal startup and running of gas & electrical components in Russia winter.

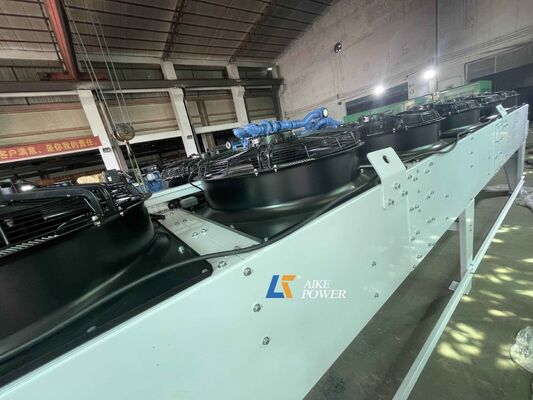

5. Top Horizontal Radiator Layout

Horizontal water radiator installed on container roof, save inner space of container, stable heat dissipation.

6. Integrated Gas Safety Protection

Gas pressure regulating valve group + gas leak detection alarm system, real-time monitoring of gas pipeline safety, meet Russian power station safety requirements.

Application

This skid-mounted 1.5MW Yuchai container gas genset is customized for Russia natural gas power projects, widely used for remote unattended gas station, oil & gas field power supply, industrial factory continuous power, remote mining power station.

Suitable for areas with extreme cold winter, where on-site construction condition is limited. The fully pre-assembled container design greatly shorten project commissioning cycle.

8. Warranty Commitment

Warranty period: 12 months or 1500 working hours, whichever comes first, starting from the date of goods arrival at Russia project site.

We supply spare parts for all internal components (heating plate, gas detector, valve group, exhaust fan, controller) after sales. Provide remote technical guidance for component installation, debugging and maintenance.
