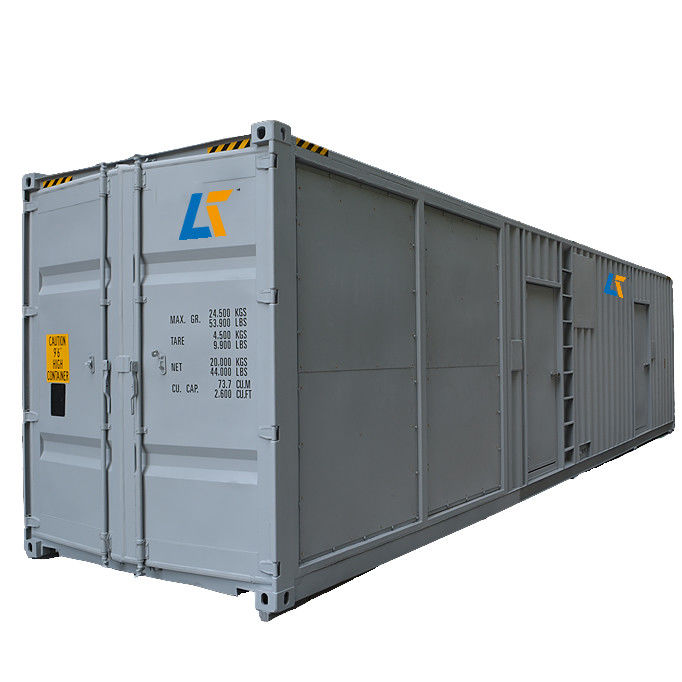

Industrial Container Diesel Generator Set Outdoor Containerized Genset For Hotel

Brand Name:	AIKE POWER
Model Number:	AP2500
MOQ:	1
Price:	USD
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Name:

Container Diesel Generator Set

Control Panel:

Smartgen,Deepsea

Dimensions:

20ft Container

Fuel Consumption:

≤208g/kw.h

Fuel Tank Capacity:

2000L

Noise Level:

75dB

Output Type:

AC Three Phase

Power Output:

1000kW

Rated Frequency:

50Hz/60Hz

Rated Power:

1000KW

Speed:

1500/1800rpm

Starting System:

Electric Start

Voltage:

400V

Warranty Time:

1 Year/ 1000 Running Hours

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Industrial Container Diesel Generator Set

Containerized Generator Set

Containerized Genset

Product Description

Container Type Genset,Industrial Generator Set,Genset For Hotel,Container Generator Set,Outdoor Diesel Genset

Perkins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

The engine can be Perkins,Cummins,Yuchai,Shangchai and so on

Genset for hotel,factory and data center,power plant and so on.

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set	Genset Model	AP2500
	Rating Power (KW/KVA)	1800/2250
	Standby Power(KW/KVA)	2000/2500
	rating Ammeter(A)	3247@400V
Diesel Engine	Engine Model	4016-61TRG3
	Prime Power(KW)	1975
	Standby Power(KW)	2183
	Bore X Stroke (mm)	160X190
	number of Cylinder & Configuration	16 V
	Displacement(l)	61.1
	Compression Ratio	13.6:1
	Aspiration	Turbocharged & Aftercooled
	Max. intake depression(kPa)	6
	Combustion air Volume(m³/min)	175
	Max. Exhaust back Pressure(kPa)	10
	Exhaust Gas Flow(m³/min)	490
	Max. Exhaust Gas Temperature(℃)	560
	Cooling	Water cooled with Radiator
	Fan cooling air flow(m³/min)	2208
	Total Coolant capacity(l)	95
	Max. temperature of coolant(℃)	98
	Max. permissible oil temp.(℃)	100
	Total oil capacity(l)	237.2
	Rating Fuel Consumption(g/kW.h)	209
	Governing Type	Electrics
Alternator	Rating Voltage(V)	400/230 adjustable
	Alternator Model	LSA 51.2 VL85
	Rating Capacity(KW/KVA)	1800/2250
	Eff.%	96.4%
	Power Factor	0.8 lagged
	Exciting type	Brushless, PMG exciter, DVR
	Voltage regulation	±0.5%
	No. of Phase	3 phase 4 wire
	Enclosure Class	IP23
	Class of Insulation	H
Battery	Rating Capacity(AH)	4X200AH 12V
Dimension	Generator set dimension (LXWXH)	6200X2300X2800 mm
Soundproof Canopy	40HQ for soundproof canopy	Self designed inside
Weight	Generator set Net Weight (kg)	16000
