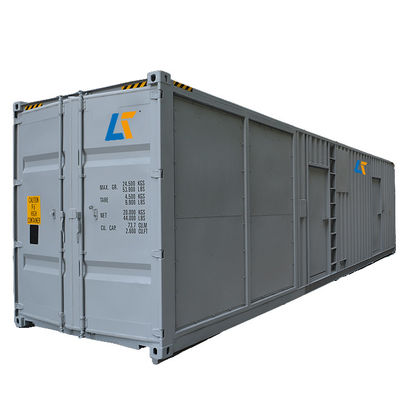

Outdoor Container Diesel Generator Set Three Phase with Digital / Electric Control System

Brand Name:	AIKE POWER
Model Number:	AC1375
MOQ:	1
Price:	USD
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Voltage:

220/380/400V Adjustable

Control System:

Digital/Electric

Fuel Type:

Diesel

Noise Level:

≤70dB

Name:

Container Diesel Generator Set

Output Type:

AC Three Phase

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Outdoor Container Diesel Generator Set

Container Diesel Generator Set Three Phase

ISO Containerised Generator Set

Product Description

Outdoor Diesel Generator , Emergency Generator Set, Super Silent Genenerator Set

DC to AC: In this case, the DC motor is coupled to the alternator or alternator (in special cases).
AC to AC: One AC source frequency to another AC source frequency.

DC to DC: DC power supply of one voltage level to DC power supply of another voltage level.
Fixed AC voltage to variable AC voltage.
Single-phase alternating current to three-phase alternating current.
Create or balance a three-phase DC system.

Genset for hotel,factory and data center,power plant and so on.

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24/28/36 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set		Genset Model	AC1375
		Rating Power (KW/KVA)	1000/1250
		Standby Power(KW/KVA)	1100/1375
		Rating Ammeter(A)	1804
Diesel engine	General data	Engine model	KTAA38-G9A
		Prime Power(KW/HP)	1097/1196
		Standby Power(KW/HP)	1207/1360
		number of Cylinder & Configuration	12V
		Bore X Stroke (mm)	159X159
		Displacement(l)	38
		Compression Ratio	13.9:1
		Governor type	Electronic governor
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	245
		Max. Exhaust Gas Temperature(℃)	460
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbo &Air-Air cooled
		Max. intake depression(mbar)	6
		Combustion air Volume(m³/min)	91
	Fuel system	Rating Fuel Consumption(l/h)	233
	Fuel system	75% full Fuel Consumption(l/h)	235
	Lubrication system	Total oil capacity(l)	135
		Max permissible oil temp(℃)	121
		Oil pressure at rated rpm(KPA)	241-345
	Cooling system	Total Coolant capacity(l)	308
		Max. temperature of coolant(℃)	100
		Fan cooling air flow(m³/min)	1380
Alternator		Alternator model	LVI634G
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	1000/1250
		Eff.%	95.1%
		Power Factor	0.8
		Exciting type	Brushless self-exciter AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	4X150AH 12V
Dimension		Generator set dimension (LXWXH)	4800x1950x2300
Weight		Generator set Net Weight (kg)	9850
