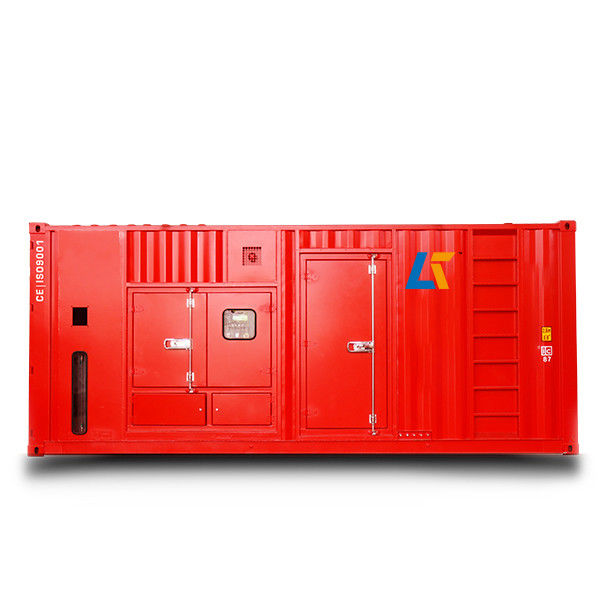

1200kW Outdoor Electric Generator , Container Diesel Genset Manufacturers

Brand Name:	AIKE POWER
Model Number:	AP1375
MOQ:	1
Price:	USD
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Name:

Outdoor Electric Generator

Rated Voltage:

415V/ 440V/ 480V/ 660V

Starting Method:

Electric

Voltage:

220/380V Adjustable

Engine:

Perkins/ CUMMINS/Deutz/ Yuchai/ Weichai

Engine Brand:

Cummins

Engine Model:

KTA38-G9

Fuel Consumption:

≤208g/kw.h

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

1200kW Outdoor Electric Generator

Outdoor Diesel Generator Genset

Container Diesel Genset Manufacturers

Product Description

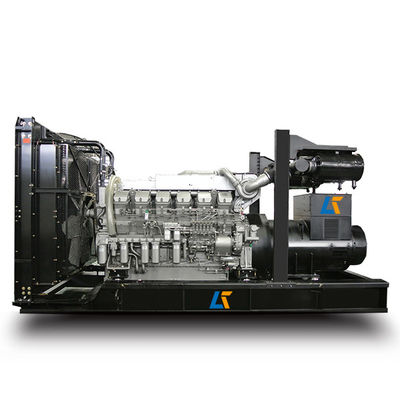

1200kW Electric Diesel Generator , Industrial Genenerator Set , Outdoor Diesel Genset , Container Canopy

The rotor is composed of rotor core (or magnetic pole, magnetic choke) winding, guard ring, central ring, slip ring, fan and rotating shaft.
The stator and rotor of the generator are connected and assembled by the bearing and the end cover, so that the rotor can rotate in the stator and do the movement of cutting magnetic field lines, so as to generate an induced electric potential, which is drawn out through the terminal and connected to the circuit, and the current is generated.

Generator Standard Compose:

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set	Genset Model	AP1650
	Rating Power (KW/KVA)	1200/1500
	Standby Power(KW/KVA)	1320/1650
	Rating Ammeter(A)	2165 @ 400V
Diesel Engine	Engine Model	4012TAG2A
	Prime Power(KW)	1296
	Standby Power(KW)	1422
	Bore X Stroke (mm)	160X190
	Number of Cylinder & Configuration	12 V
	Displacement (l)	45.8
	Compression Ratio	13.6:1
	Aspiration	Turbocharged & After-cooled
	Max. intake depression(kPa)	6
	Combustion air Volume(m³/min)	106
	Max. Exhaust back Pressure(kPa)	10
	Exhaust Gas Flow(m³/min)	285
	Max. Exhaust Gas Temperature(℃)	472
	Cooling	Water cooled with Radiator
	Fan cooling air flow(m³/min)	1410
	Total Coolant capacity(l)	263
	Max. temperature of coolant(℃)	96
	Max. permissible oil temp.(℃)	105
	Total oil capacity(l)	178
	Rating Fuel Consumption(l/h)	306
	Governing Type	Electrics Governor
Alternator	Rating Voltage(V)	400/230 (adjustment)
	Alternator Model	LSA50.2L8
	Rating Capacity(KW/KVA)	1240/1550
	Eff.%	95.6%
	Power Factor	0.8 lagged
	Exciting type	Brushless PMG exciter, AVR
	Voltage regulation	±0.5%
	No. of Phase	3 phase 4 wire
	Enclosure Class	IP23
	Class of Insulation	H
Battery	Rating Capacity(AH)	4X200AH 12V
	Generator set dimension (LXWXH)	5300X1900X2500 mm
	Weight (kg)	10500
	Daily Fuel Tank	10 hours
	Container Soundproof Dimension (40HQ)	12192X2438X2438mm
	Noise at 7m around the soundproof	≤80dBA
