Yuchai 1.5MW Skid-Mounted Container Gas Generator Set, Customized for Russia Cold Climate

Product Description

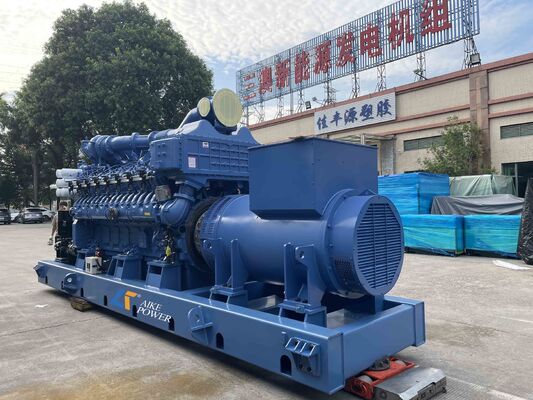

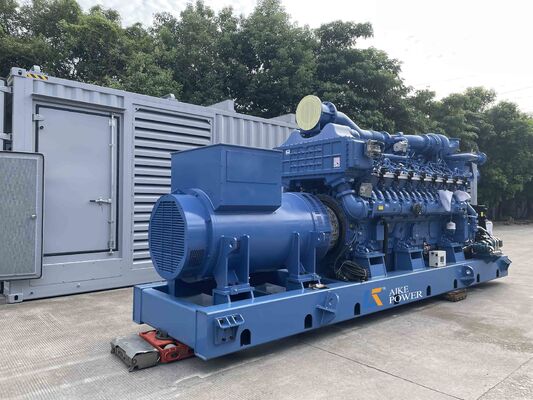

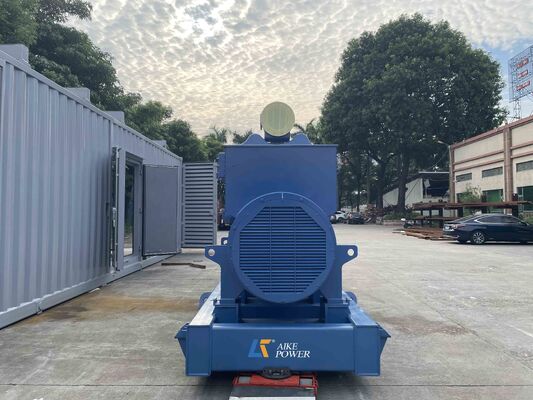

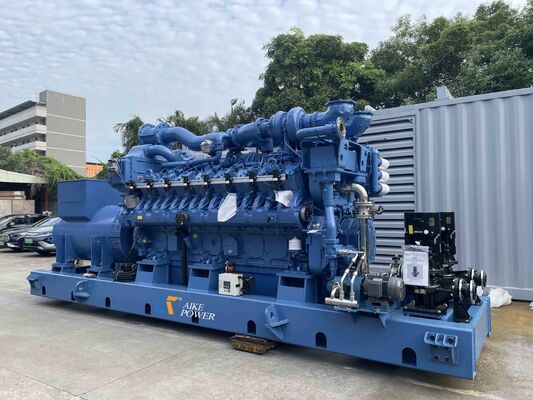

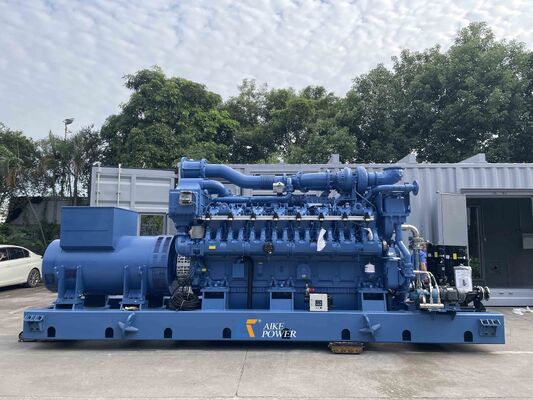

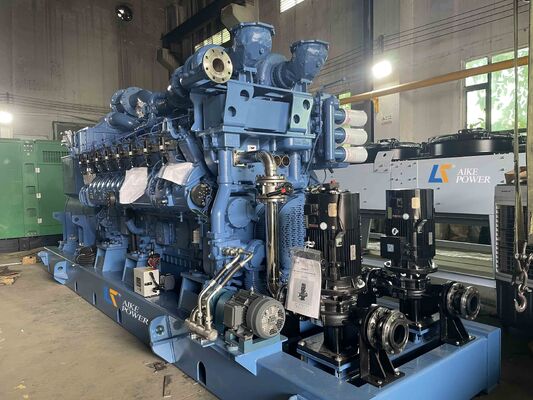

This 1500kW Yuchai YC16VCG-1500N5LC container gas generator set is fully customized for Russia low-temperature projects. The whole power unit (YC16VCG 16-cylinder V-type gas engine shown in the photo) is pre-assembled on skid rails and installed inside a heavy-duty insulated container, ready for fast site installation and commissioning after delivery.

The container adopts 50mm thick insulated doors for freeze protection. Multiple constant-temperature heating plates and heating air conditioner are fitted inside the cabin to maintain stable internal working temperature under frigid winter conditions. A horizontal water tank radiator is mounted on the container roof, with 4 side-mounted exhaust fans and electric motorized louvers to automatically adjust ventilation. Equipped with gas leak detection device, intelligent genset controller and full protection system, this containerized gas power station realizes safe, unattended continuous operation in remote Russian sites.

The engine adopts genuine Yuchai YC16VCG-1500N5LC 16V series gas engine, stable running with natural gas / biogas / associated gas. All electrical and heating systems are tested to adapt to Russia’s extreme cold climate, preventing pipeline freezing, hard cold start and condensation damage. The skid rail design allows whole-unit hoisting and transportation, reducing on-site assembly work significantly.

Core Features & Selling Points

• Genuine Yuchai YC16VCG-1500N5LC 1.5MW V16 Gas Engine
  Original Yuchai 16-cylinder V-type gas engine, high thermal efficiency, stable prime power output, support natural gas, coal bed gas and associated gas, complete engine protection logic.
• Skid Rail Pre-assembly Design
  Complete genset pre-mounted on skid rails inside container. Minimal site construction work, shorten project installation cycle for Russia remote sites.
• 50mm Thick Thermal Insulated Container & Anti-freeze Structure
  5cm thick insulated box doors for cold isolation; multiple built-in constant temperature heating plates + heating air conditioner maintain cabin temperature, avoid equipment freezing in sub-zero weather.
• Roof Horizontal Water Tank Radiator + Intelligent Ventilation System
  Horizontal radiator mounted on container top; 4 side exhaust fans + electric motorized adjustable louvers. Auto adjust air intake/exhaust according to cabin temperature, balance heat preservation and heat dissipation.
• Gas Safety Monitoring & Intelligent Control
  Built-in gas leak detector, real-time gas concentration monitoring, audible & visual alarm; intelligent controller monitors all engine parameters, automatic alarm and shutdown for fault protection.
• Russia Cold Climate Customization
  Full low-temperature adaptation design. Solve the common pain points of cold start, pipeline icing and internal condensation for Russian industrial power projects.

Technical Parameter Table

Application Scenarios

• Russia remote industrial power station
• Russia oil & gas field associated gas power generation
• Mining distributed power projects in Russia
• Factory backup power and continuous power supply in cold regions
• Off-grid gas power plant for Siberia & Far East Russia projects

Warranty Commitment

• Yuchai gas engine (YC16VCG-1500N5LC): 12 months from shipment or 1000 running hours, whichever comes first.
• Generator, controller, gas detector, heating and ventilation components: 12 months after delivery.
• Warranty covers manufacturing defects of raw materials and assembly.
• Excludes damage caused by improper installation, improper gas quality, overload, cold environment operation without following operation manual, unauthorized modification and normal wearing parts.
• Global technical support and spare parts supply available for Russia projects.

FAQ

1. Q: What engine model is fitted on this 1.5MW container gas generator?
   A: It adopts genuine Yuchai YC16VCG-1500N5LC 16-cylinder V-type gas engine, prime power up to 1500kW.
2. Q: What fuel can this Yuchai YC16VCG 1.5MW container gas generator use?
   A: It can run on natural gas, biogas, coal seam gas and oilfield associated gas, widely used for gas resource projects in Russia.
3. Q: How does the container resist extreme cold for Russia project?
   A: It adopts 50mm thick insulated door, multiple built-in constant temperature heating plates plus heating air conditioner, together with full enclosure heat preservation, preventing freezing in low-temperature environment.
4. Q: What is skid rail assembly?
   A: The whole genset is pre-installed on skid rails inside container in factory. When arriving at project site, only gas pipeline, power cable and foundation fixing work are needed, greatly reducing site construction time.
5. Q: What is the function of the electric louvers and side exhaust fans?
   A: Electric louvers and four side exhaust fans work automatically linked with cabin temperature. Close louvers in cold weather to keep heat; open automatically for heat dissipation when internal temperature rises.
6. Q: Why install gas detection device inside the container?
   A: The gas detector continuously monitors combustible gas concentration inside the container. It triggers sound & light alarm once leakage is detected and can interlock safety shutdown to protect the whole YC16VCG gas unit.
