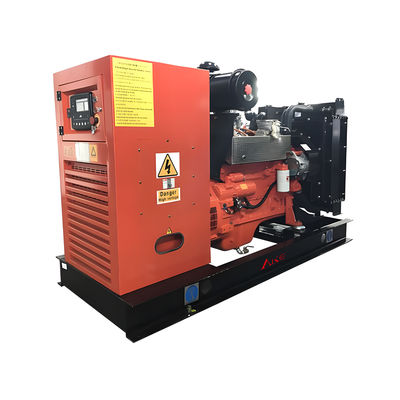

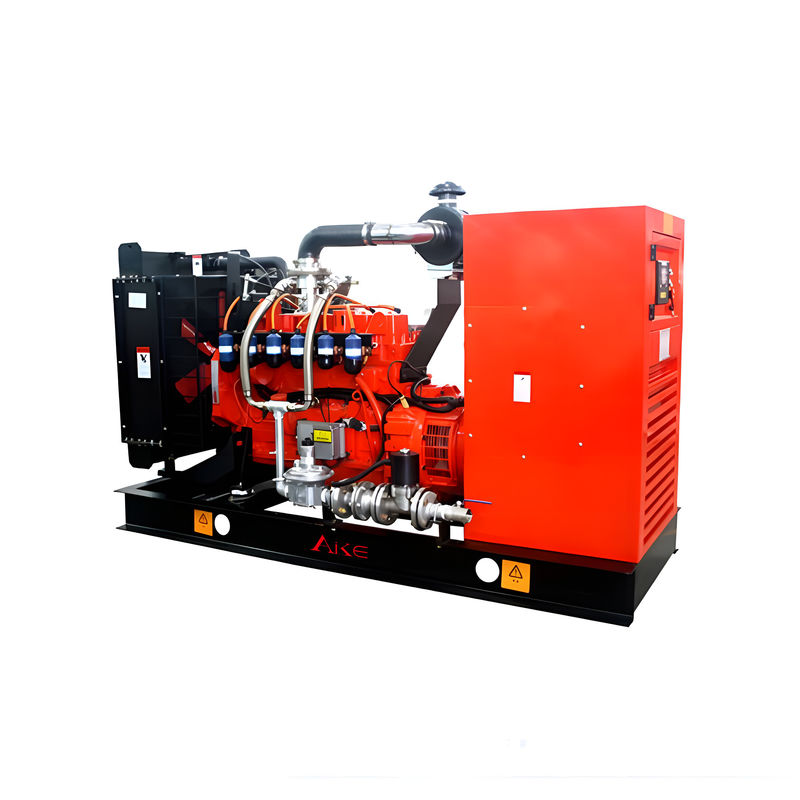

40kw Natural Gas Generator 1500rpm / 1800rpm Electric Generator Set

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Frequency:

50Hz/60HZ Adjustable

Fuel:

Natutal Gas/Biogas/LPG

Model:

HC40-NG

Phase:

Continue Power:

40kW/50kVA

Rated Voltage:

400/230V,380/220V(Adjustable)

Speed:

1500/1800rpm

Starting Method:

Electric Start

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

Product Description

40kw Natural Gas Generator 1500rpm / 1800rpm Electric Generator Set

Regarding the generator,there are diesel,gas,biogas and others what you want,there are rich experienced engineers and experts for you.

Our field has the factory,hotel,hospital,mine,power plant and what ever the place you need the power,we can help you solve the problem for you.

Model Item		AC40-NG
Rate Power	kVA	50
	kW	40
Fuel		Natural Gas
Consumption(m³/h)		13.4
Rate Voltage(V)		380V-415V
Voltage Stabilized Regulation		1.50%
Voltage Recovery Time(s)		1
Frequency(Hz)		50Hz
Frequency Fluctuation Ratio		1%
Rated Speed(r/Min)		1500
Idling Speed(r/Min)		700
Insulation Level		H
Rated Currency(A)		72.1
Noise(db)		7M@95
Engine Model		HGT4B
Aspration		Turbocharged
Arrangement		Inline
Engine Type		4 stroke, electronic-control spark plug ignition, water cooling, premix proper ratio of air and gas before combustion
Cooling Type		Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit
Cylinders		4
Bore X Stroke(mm)		102 X 120
Displacement(L)		3.92
Compression Ratio		10.5:1
Engine Rate Power(kW)		45
Oil Recommended		API service grade CD or higher SAE 15W-40 CF4
Oil Consumption		1
(g/kW.h)
Exhaust Temperature		680℃
Net Weight(kG)		1000
Dimension (mm)	L	1850
	M	750
	H	1480
