products details

Home Products

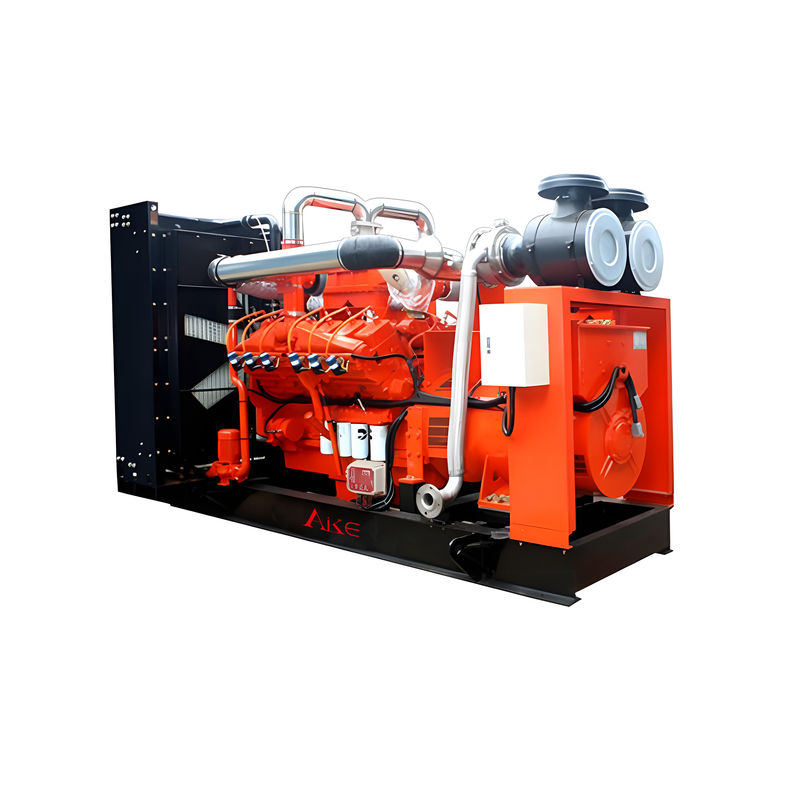

500kW 3 Phase Natural Gas Generator Sets Water Cooled Electric Start

Name: 500kW 3 Phase Natural Gas Generator Sets Water Cooled Electric Start
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AC500-NG
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AC500-NG
MOQ:	1
Price:	Negotiate
Payment Terms:	L/C, T/T
Supply Ability:	50 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Type:

Natural Gas Generator Sets

Alternator:

Brushless

Cooling System:

Water-cooled

Engine Type:

4-stroke

Frequency:

50Hz

Fuel:

Natutal Gas/Biogas/LPG

Model:

AC500-NG

Phase:

Continue Power:

500kW/625kVA

Rated Voltage:

400/230V,380/220V(Adjustable)

Speed:

1500/1800rpm

Starting Method:

Electric Start

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

500kW Gas Generator Sets

3 Phase Natural Gas Generator Sets

3 Phase Gas Generator Sets

Product Description

500kW Gas Electic Generator Set,Nature Gas Generator Set,Cummins Natural Gas Generator

Also have the CHHP,CHP system and soundproof canopy to be optional.

Main configuration and features

- Highly efficient gas engine

- AC synchronous alternator

- Gas safety train and gas protection device against leakage

- High efficient water-air intercooler

- High efficient turbocharger

- Wet exhaust manifold

- USA ALTRONIC ignition system, including: ignition module, ignition lead, ignition coil, spark plug, ignition sensor

- Ignition high energy signal panel

- Switherland Speed control system, including: actuator, speed governor, throttle valve, speed sensor

- Mixer

- Unattached switch cabinet and electric control cabinet

- Multi-functional control system with simple operation

- Monitoring battery voltage and charging automatically

- Reducer valve (optional)

- Gas leakage detector (optional)

- Auto refilling oil system(optional)

- Communication module (optional)

Datasheet for 500kW Gas Electic Generator Set,Nature Gas Generator Set,Cummins Natural Gas Generator

50HZ/1500RPM

Model Item		AC500-NG
Rate Power	kVA	625
	kW	500
Fuel		Natural Gas
Consumption(m³/h)		143.66
Rate Voltage(V)		380V-415V
Voltage Stabilized Regulation		1.50%
Voltage Recovery Time(s)		1
Frequency(Hz)		50Hz
Frequency Fluctuation Ratio		1%
Rated Speed(r/Min)		1500
Idling Speed(r/Min)		700
Insulation Level		H
Rated Currency(A)		902.1
Noise(db)		7M@100
Engine Model		HGKT38
Aspration		Turbocharged
Arrangement		V type
Engine Type		4 stroke, electronic-control spark plug ignition, water cooling, premix proper ratio of air and gas before combustion
Cooling Type		Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit
Cylinders		12
Bore X Stroke(mm)		159 X 159
Displacement(L)		37.8
Compression Ratio		11:01
Engine Rate Power(kW)		570
Oil Recommended		API service grade CD or higher SAE 15W-40 CF4
Oil Consumption		≤0.5
(g/kW.h)
Exhaust Temperature		600℃
Net Weight(kG)		6080
Dimension (mm)	L	4400
	M	2010
	H	2500
