Heavy Fuel Oil Generator
Created with Pixso.

10.4MW CSSC Heavy Fuel Oil (HFO) Generator Set | AC-CSSC-HFO (ML450F-G)

10.4MW CSSC Heavy Fuel Oil (HFO) Generator Set | AC-CSSC-HFO (ML450F-G)

Brand Name: AIKE POWER
Model Number: AC-CSSC-HFO
MOQ: 1
Price: Negotiate
Payment Terms: L/C,T/T
Supply Ability: 1000 set/m
Detail Information
Place of Origin:
China
Certification:
ISO
Packaging Details:
Plastic Wrap Or Wooden Case
Supply Ability:
1000 set/m
Product Description

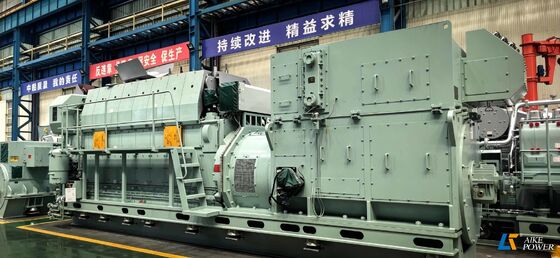

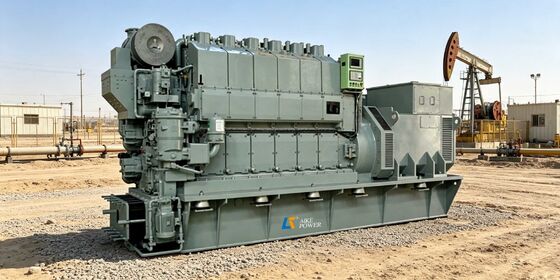

Aikepower AC-CSSC-HFO (ML450F-G) is a 10.4MW heavy fuel oil genset built around genuine CSSC medium-speed engine. Optimised for non-stop base-load power, it burns low-grade heavy fuel oil to cut long-term operational costs. Suitable for offshore oil platforms, ocean-going vessel power stations and remote off-grid power projects.

Our CSSC HFO generator set is a medium-speed megawatt power solution built for continuous base-load power projects. Unlike conventional diesel backup generators that run intermittently, this unit is engineered for year-round 24/7 full-load operation.
Aikepower supplies the complete turnkey power package, integrating the original CSSC ML450F-G engine, high-voltage alternator, PLC control system and matched HFO pretreatment skid. This full package is widely selected by EPC contractors, offshore oil operators and ship owners in the Middle East, Africa and marine engineering sectors.

Key Project Benefits for Power Investors
  • Low Fuel Operating Cost: Compatible with low-cost heavy fuel oil, residual oil and crude oil, greatly reducing fuel expenditure for year-round power plants
  • 24/7 Base Load Reliability: Medium-speed CSSC heavy-duty engine, stable full-load continuous operation for long-term power station deployment
  • Marine & Onshore Dual Deployment: Customisable anti-salt corrosion modification for offshore platforms; land version for remote mine and isolated grid power stations
  • Complete Turnkey Package Support: Fuel heating & filtration skid, lube oil processing system, SCADA remote monitoring and exhaust treatment are all available as one-stop supply
  • Long Service Life & Easy Maintenance: Robust cast iron engine block, low vibration design, easy access for routine overhaul in remote project sites
Technical Specification Tables

Table 1: CSSC ML450F-G Original Engine Official Parameters

ItemSpecification
Engine ModelML450F-G Medium Speed HFO Engine
Engine Type4-stroke, inline medium-speed heavy fuel engine
Rated Speed750 RPM
Prime Power10,400 kW
Supported FuelHeavy Fuel Oil (HFO), crude oil, residual oil, diesel backup
Cylinder9 Cylinders
Bore × Stroke450 mm × 450 mm
Emission StandardIMO Tier 2
Starting ModeCompressed air starting
LubricationFull-flow lubricating oil purification system

Table 2: Aikepower Full HFO Generator Set Parameters

ItemSpecification
Aikepower ModelAC-CSSC-HFO(ML450F-G)
Prime Power10.4MW (13,000kVA)
Rated Voltage10.5kV / 11kV High Voltage
Frequency50Hz
Cooling SystemClosed fresh water cooling
AlternatorHigh voltage brushless synchronous alternator, H-class insulation
Operation Mode24h continuous base load
ControlCentralized PLC monitoring, remote SCADA access
Typical ApplicationOffshore oil platform, marine power station, remote land base-load power plant
Recommended Application Projects
  • ✅ Offshore oil & gas platform continuous power supply
  • ✅ Large ocean-going vessel auxiliary base power station
  • ✅ Remote off-grid power plants for Middle East & African mining zones
  • ✅ Heavy industrial park and EPC turnkey power station projects

Related Products & Project Cases:
👉 HFO Fuel Pretreatment Skid Page
👉 2.8MW CSSC HFO Generator Project Case

Frequently Asked Questions

Q1: What is the core difference between HFO generator and standard diesel genset?

A: HFO generator uses medium-speed heavy fuel engine, designed for permanent 24/7 base-load operation. It can consume low-price heavy residual oil to save operational expenses. Standard diesel generators are mainly for emergency standby power and use expensive light diesel.

Q2: Can this CSSC HFO genset be deployed both on marine vessels and land power plants?

A: Yes. The CSSC ML450F-G engine supports dual marine & onshore application. We can add salt spray anti-corrosion coating and marine-class modification for marine projects.

Q3: Do I need additional auxiliary equipment for HFO power system?

A: HFO fuel requires heating, filtration and separation pretreatment skid. Aikepower can deliver the full turnkey power plant including fuel processing, lube oil treatment and monitoring system.

Q4: What project preparation work is needed before purchasing a megawatt HFO power station?

A: You need to confirm fuel type, site altitude, ambient temperature, power grid requirement and local emission rules. Our power engineering team can provide free power plant feasibility consultation for your EPC project.
