Cummins Power Diesel Generator 600kW 750kVA Low Emissions Water Cooled

Brand Name:	AIKE POWER
Model Number:	AY2500
MOQ:	1
Price:	USD
Payment Terms:	L/C, T/T
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

750 Kva Cummins Generator

Certifications:

ISO 9001, ISO 14001

Cooling System:

Water-cooled

Emissions:

Low

Fuel Type:

Diesel

Power Output:

1800 KW /2250kVA

Packaging Details:

plastic wrap or wooden case

Supply Ability:

20 set/m

Highlight:

Cummins Power Diesel Generator

750 kva cummins generator

600kW Diesel Generator

Product Description

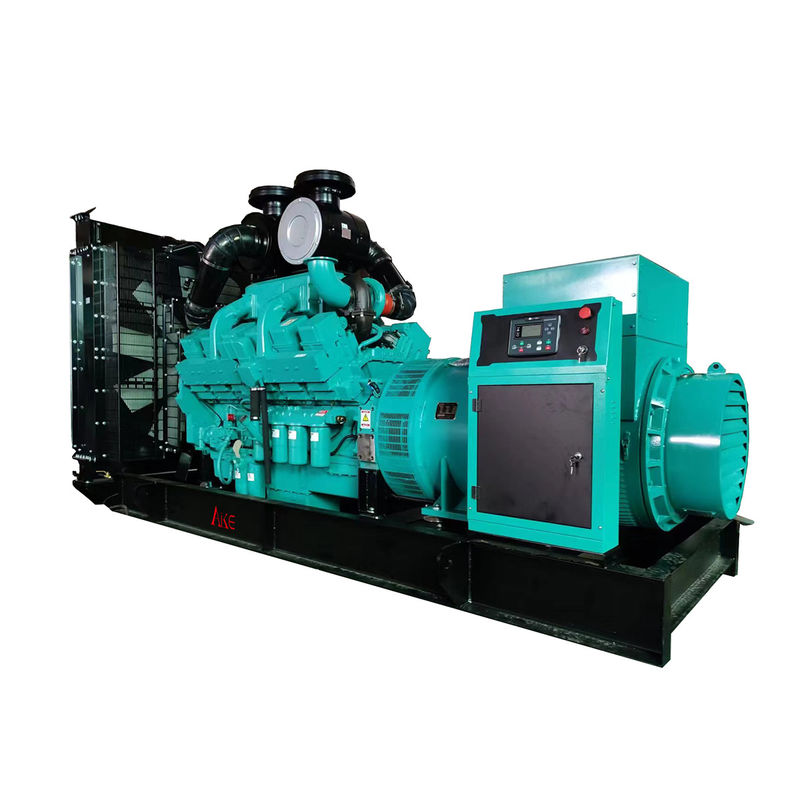

600kW/750kVA Cummins Power Diesel Generator , Diesel Engine Power Generator

Application fields:

Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare , Data Centers , Telecommunications , Construction , Manufacturing ,Oil and Gas, Military, Residential electricity.

Advantage of our diesel generator :

diesel generator have a sturdy housing；
Longer life；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.

Information about the generator set

Generator set		Genset Model	AC825
		Rating Power (KW/KVA)	600/750
		Standby Power(KW/KVA)	660/825
		Rating Ammeter(A)	1154
Diesel engine	General data	Engine model	KTA38-G2
		Prime Power(KW/HP)	664/903
		Standby Power(KW/HP)	731/994
		number of Cylinder & Configuration	12V
		Bore X Stroke (mm)	159X159
		Displacement(l)	38
		Compression Ratio	14.5:1
		Governor type	Electronic governor
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	143.8
		Max. Exhaust Gas Temperature(℃)	479
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbo & After cooled
		Max. intake depression(mbar)	6
		Combustion air Volume(m³/min)	51
	Fuel system	Rating Fuel Consumption(l/h)	167
	Fuel system	75% full Fuel Consumption(l/h)	125
	Lubrication system	Total oil capacity(l)	135
		Max permissible oil temp(℃)	121
		Oil pressure at rated rpm(KPA)	310-448
	Cooling system	Total Coolant capacity(l)	308
		Max. temperature of coolant(℃)	103
		Fan cooling air flow(m³/min)	900
Alternator		Alternator model	LVI634B
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	600/750
		Eff.%	93.3%
		Power Factor	0.8
		Exciting type	Brushless self-exciter AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	4X150AH 12V
Dimension		Generator set dimension (LXWXH)	4650x1630x2270
Weight		Generator set Net Weight (kg)	7000
