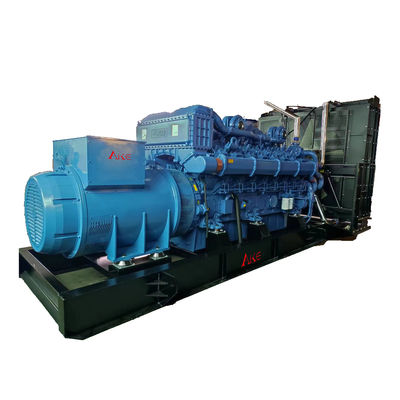

2000kW High Voltage Diesel Engine Power Generator , Continuous Duty Diesel Generator

Brand Name:	AIKE POWER
Model Number:	AY1375
MOQ:	1
Price:	USD
Payment Terms:	L/C, T/T
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

Continuous Duty Diesel Generator

Certifications:

ISO9001, ISO 14001

Emissions:

Low

Fuel Type:

Diesel

Power Output:

2000 KW

Warranty:

1 Years

Packaging Details:

plastic wrap or wooden case

Supply Ability:

20 set/m

Highlight:

2000kW Diesel Engine Power Generator

2000kW Diesel Generator

ISO9001 Continuous Duty Diesel Generator

Product Description

2000kW High Voltage Diesel Engine Power Generator , Continuous Duty Diesel Generator

The voltage can be adjustable,here is 3.3kV,also can be 6.6kV,10.5kV and so on.

Application fields:

Diesel generator are used in any situation where a reliable backup power source is necessary to maintain continuity of operations.
For example:
Healthcare , Data Centers , Telecommunications , Construction , Manufacturing ,Oil and Gas, Military, Residential electricity.

Advantage of our diesel generator :

diesel generator have a sturdy housing；
Longer life；
Lower maintenance costs；
Lower noise level；
Faster delivery time；
Better team service；
Higher level technical support.

Parameter about the generator set

Generator set		Genset Model	AY2750
		Rating Power (KW/KVA)	2000/2500
		Standby Power(KW/KVA)	2200/2750
		Rating Ammeter(A)	437A
engine	General data	Engine model	YC16VC3300-D31
		Prime Power(KW/KVA)	2205/2756
		Standby Power(KW/KVA)	2426/3032
		number of Cylinder & Configuration	16 cylinders in line
		Bore X Stroke (mm)	200*210
		Displacement(l)	105.56
		Compression Ratio	13.5:1
		Governor type	Electric start
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	33
		Max. Exhaust Gas Temperature(℃)	550
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbocharged intercoolant
		Max. intake depression(KPA)	12
		Combustion air Volume(m³/min)	33
	Fuel system	Rating Fuel Consumption(l/h)	50.4
	Fuel system	75% full Fuel Consumption(l/h)	37.4
	Lubrication system	Total oil capacity(l)	21
		Max permissible oil temp(℃)	97
		Oil pressure at rated rpm(KPA)	345-413
	Cooling system	Total Coolant capacity(l)	10
		Max. temperature of coolant(℃)	550
		Fan cooling air flow(m³/min)	125
Alternator		Alternator model	AK-2000-4
		Rating Voltage(V)	3.3KV
		Rating Capacity(KW/KVA)	2000/2500
		Eff.%	94.3%
		Power Factor	0.8
		Exciting type	Brushless self-exciter, AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	4X200AH 12V
Dimension		Generator set dimension (LXWXH)	6205x1650x2218
Weight		Generator set Net Weight (kg)	22000
