400kW 500kVA Natural Gas Biogas Generator Set AC400-NG

Name: 400kW 500kVA Natural Gas Biogas Generator Set AC400-NG
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AC400-NG
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AC400-NG
MOQ:	1
Price:	Negotiate
Payment Terms:	L/C,T/T
Supply Ability:	50 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Frequency:

50Hz/60HZ

Fuel:

Natutal Gas/Biogas/LPG

Model:

AC400-NG

Phase:

Continue Power:

400kW/500kVA

Rated Voltage:

400/230V,380/220V(Adjustable)

Speed:

1500/1800rpm

Type:

Open Type/silent Type Adjustable

Warranty:

1 Year Or 1200 Hours Whichever Occurs First.

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

400kW natural gas generator set

500kVA biogas generator

AC400-NG gas generator set

Product Description

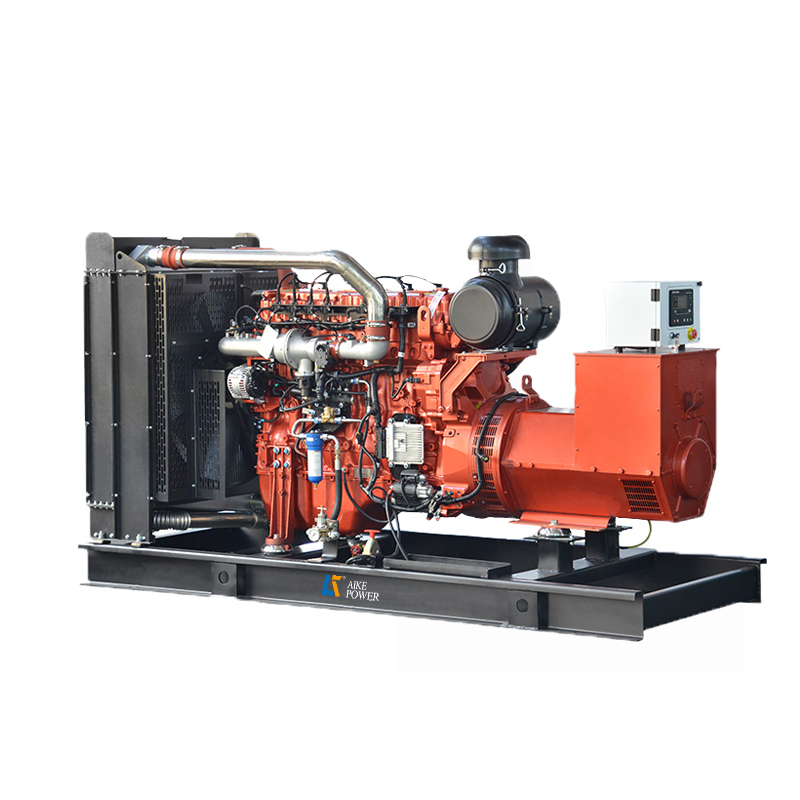

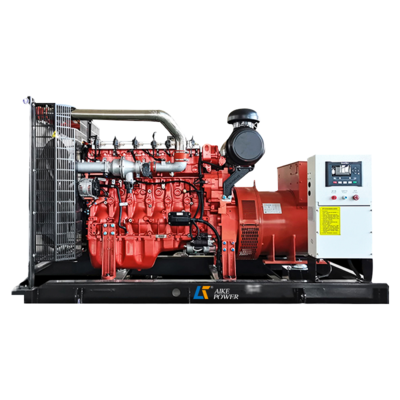

400kW 500kVA Natural Gas Biogas Generator Set

This industrial-grade gas generator set provides reliable power solutions with auto-start capability, available in silent or open frame configurations. Ideal for industrial power plant applications, it offers significant cost savings through efficient natural gas or biogas operation.

The system can be integrated into CHHP (Combined Heat and Power) configurations for enhanced energy efficiency.

Key Features

Available in multiple power outputs from 10kW to 500kW
Operates on natural gas with efficient fuel consumption
Stable voltage regulation (±1.5%) and quick recovery (1 second)
50Hz frequency with minimal fluctuation (±1%)
Electronic-control spark plug ignition system
Water cooling with radiator fan or heat exchanger options
Low noise operation (95-100dB at 7 meters)
Customizable engine brand options (Cummins or Yuchai)

Technical Specifications

Model Item	AC10-NG	AC30-NG	AC40-NG	AC50-NG	AC80-NG	AC120-NG	AC200-NG	AC300-NG	AC500-NG
Rate Power (kVA)	12.5	37.5	50	63	100	150	250	375	625
Rate Power (kW)	10	30	40	50	80	100	200	300	500
Fuel Consumption (m³/h)	3.86	10.77	13.4	16.76	25.14	37.71	60.94	86.19	143.66
Rated Current (A)	18	54.1	72.1	90.2	144.3	216.5	360.8	541.3	902.1
Engine Model	4TN88	HG4B	HGT4B	HG6B	HGT6B	HGT6C	HGNT14	HGKT19	HGKT38
Net Weight (kg)	700	900	1000	1100	1150	2500	3380	3600	6080

Engine Specifications

4-stroke, electronic-control spark plug ignition
Water cooling system with premixed air-gas combustion
Available in natural aspiration or turbocharged configurations
Compression ratios from 10.5:1 to 11.5:1
Recommended oil: API service grade CD or higher SAE 15W-40 CF4
Low oil consumption (≤0.5 g/kW.h for larger models)
Exhaust temperatures between 600-680℃

Q: Can you offer customized service?

A: Yes, we provide customized power solutions tailored to your specific requirements. Our team will work with you to develop the most cost-effective and efficient system for your application.

Note: Engine brand options include Cummins and Yuchai. Please specify your preference when ordering.
