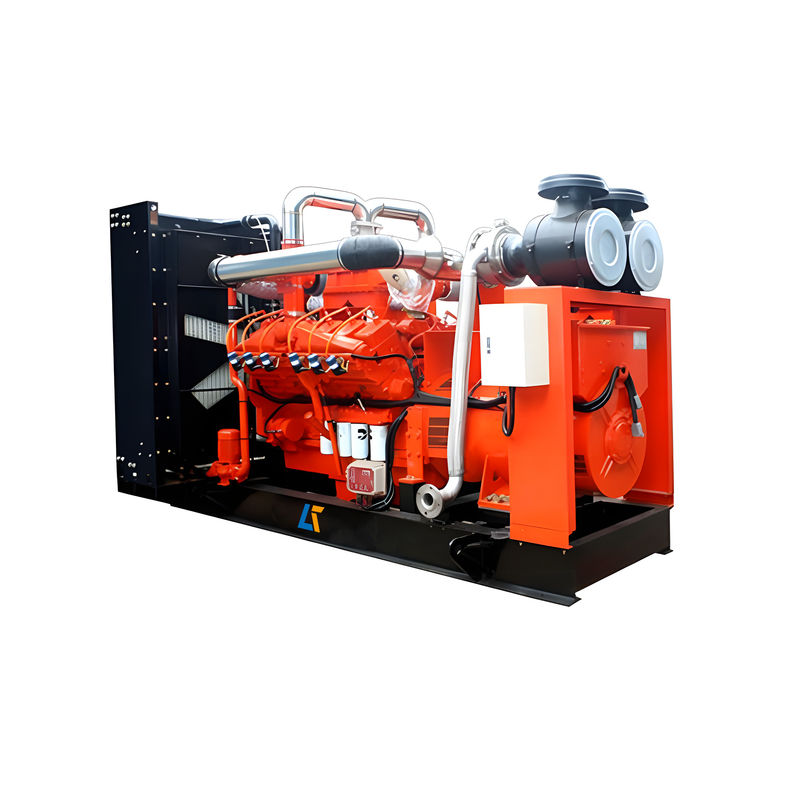

400kW Nature Gas Generator Set Cummins 3 Phase

Name: 400kW Nature Gas Generator Set Cummins 3 Phase
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AC400-NG
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AC400-NG
MOQ:	1
Price:	Negotiate
Payment Terms:	L/C, T/T
Supply Ability:	50 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Frequency:

50Hz/60HZ

Fuel:

Natutal Gas/Biogas/LPG

Model:

AC400-NG

Phase:

Continue Power:

400kW/500kVA

Rated Voltage:

400/230V,380/220V(Adjustable)

Speed:

1500/1800rpm

Type:

Open Type/silent Type Adjustable

Warranty:

1 Year Or 1200 Hours Whichever Occurs First.

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

400kW gas generator sets

Cummins gas generator sets

3 Phase gas generator sets

Product Description

400kW Gas Electic Generator Set,Nature Gas Generator Set,Cummins Natural Gas Generator

The Gas generator can save more cost for you and offer the power for you.

Also can make the CHHP system to save the energy for you.

Model Item		AC10-NG	AC30-NG	AC40-NG	AC50-NG	AC80-NG	AC120-NG	AC200-NG	AC300-NG	AC500-NG
Rate Power	kVA	12.5	37.5	50	63	100	150	250	375	625
Rate Power	kW	10	30	40	50	80	100	200	300	500
Fuel		Natural Gas
Consumption(m³/h)		3.86	10.77	13.4	16.76	25.14	37.71	60.94	86.19	143.66
Rate Voltage(V)		380V-415V
Voltage Stabilized Regulation		1.50%
Voltage Recovery Time(s)		1
Frequency(Hz)		50Hz
Frequency Fluctuation Ratio		1%
Rated Speed(r/Min)		1500
Idling Speed(r/Min)		700
Insulation Level		H
Rated Currency(A)		18	54.1	72.1	90.2	144.3	216.5	360.8	541.3	902.1
Noise(db)		7M@95	7M@95	7M@95	7M@95	7M@95	7M@95	7M@100	7M@100	7M@100
Engine Model		4TN88	HG4B	HGT4B	HG6B	HGT6B	HGT6C	HGNT14	HGKT19	HGKT38
Aspration		Natural	Natural	Turbocharged	Natural	Turbocharged	Turbocharged	Turbocharged	Turbocharged	Turbocharged
Arrangement		Inline	Inline	Inline	Inline	Inline	Inline	Inline	Inline	V type
Engine Type		4 stroke, electronic-control spark plug ignition, water cooling, premix proper ratio of air and gas before combustion
Cooling Type		Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit
Cylinders		4	4	4	6	6	6	6	6	12
Bore X Stroke(mm)		80x90	102 X 120	102 X 120	102 X 120	102 X 120	114 X 135	140 X 152	159 X 159	159 X 159
Displacement(L)		1.81	3.92	3.92	5.88	5.88	8.3	14	18.9	37.8
Compression Ratio		10.5:1	11.5:1	10.5:1	11.5:1	10.5:1	10.5:1	11:01	11:01	11:01
Engine Rate Power(kW)		14	36	45	56	100	145	230	336	570
Oil Recommended		API service grade CD or higher SAE 15W-40 CF4
Oil Consumption		1	1	1	1	1	1	0.5	0.5	≤0.5
(g/kW.h)		1	1	1	1	1	1	0.5	0.5	≤0.5
Exhaust Temperature		680℃	680℃	680℃	680℃	680℃	600℃	600℃	600℃	600℃
Net Weight(kG)		700	900	1000	1100	1150	2500	3380	3600	6080
Dimension (mm)	L	1550	1800	1850	2250	2450	2800	3470	3570	4400
	M	820	720	750	820	1100	850	1230	1330	2010
	H	1200	1280	1480	1500	1550	1450	2300	2400	2500

Regarding the engine brand also can choose the one that you need,there are Cummins and Yuchai brand,choose the one that you need.Thanks.

Q:Whether can you offer the customerized service?

A:Of cause,we can depend on your situation to offer you the best power solution to help you save the cost and find the best way for your system.
