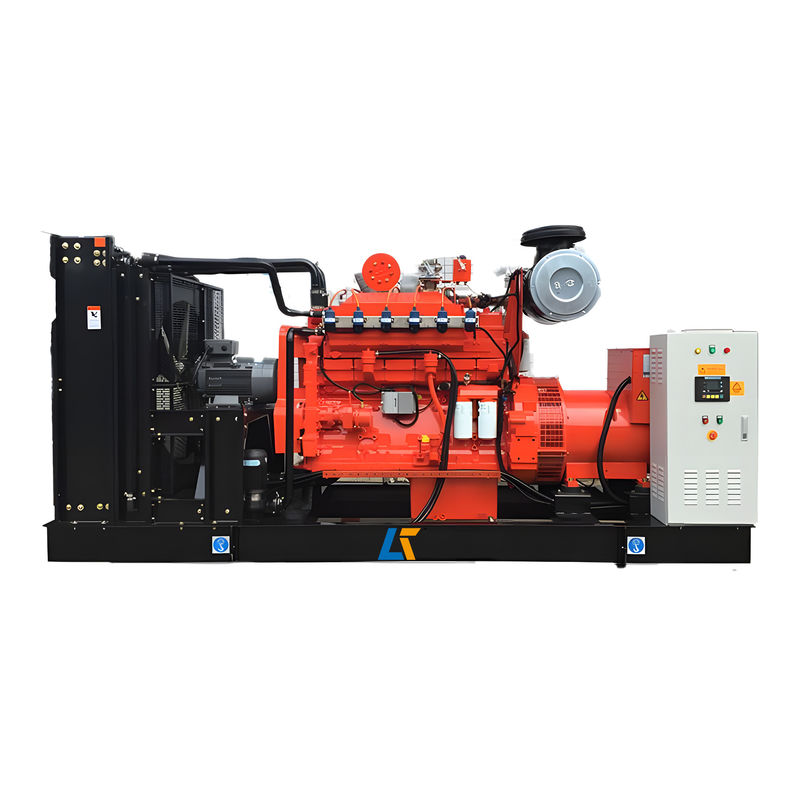

50Hz Frequency Gas Generator Sets Cummins 250kVA Natural Gas Power Generator

Name: 50Hz Frequency Gas Generator Sets Cummins 250kVA Natural Gas Power Generator
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AC250-NG
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AC250-NG
MOQ:	1
Price:	Negotiate
Payment Terms:	L/C, T/T
Supply Ability:	50 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Type:

250kVA Natural Gas Generator

Alternator:

Brushless

Cooling System:

Water-cooled

Engine Type:

4-stroke

Frequency:

50Hz

Fuel:

Natutal Gas/Biogas/LPG

Model:

AC250-NG

Phase:

Continue Power:

200kW/250kVA

Rated Voltage:

400/230V,380/220V(Adjustable)

Speed:

1500/1800rpm

Starting Method:

Electric Start

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

Natural Gas Power Generator Sets

250kVA Gas Generator Sets

Cummins Gas Generator Sets

Product Description

250kVA Gas Electic Generator Set,Nature Gas Generator Set,Cummins Natural Gas Generator

Main configuration and features

- Highly efficient gas engine

- AC synchronous alternator

- Gas safety train and gas protection device against leakage

- High efficient water-air intercooler

- High efficient turbocharger

- Wet exhaust manifold

- USA ALTRONIC ignition system, including: ignition module, ignition lead, ignition coil, spark plug, ignition sensor

- Ignition high energy signal panel

- Switherland Speed control system, including: actuator, speed governor, throttle valve, speed sensor

- Mixer

- Unattached switch cabinet and electric control cabinet

- Multi-functional control system with simple operation

- Monitoring battery voltage and charging automatically

- Industrial silencer with silencing ability of 12-20dB(A)

- Reducer valve (optional)

- Gas leakage detector (optional)

- Auto refilling oil system(optional)

- Communication module (optional)

Model Item		AC200-NG
Rate Power	kVA	250
	kW	200
Fuel		Natural Gas
Consumption(m³/h)		60.94
Rate Voltage(V)		380V-415V
Voltage Stabilized Regulation		1.50%
Voltage Recovery Time(s)		1
Frequency(Hz)		50Hz
Frequency Fluctuation Ratio		1%
Rated Speed(r/Min)		1500
Idling Speed(r/Min)		700
Insulation Level		H
Rated Currency(A)		360.8
Noise(db)		7M@100
Engine Model		HGNT14
Aspration		Turbocharged
Arrangement		Inline
Engine Type		4 stroke, electronic-control spark plug ignition, water cooling, premix proper ratio of air and gas before combustion
Cooling Type		Radiator fan cooling for closed-type cooling mode, or heat exchanger water cooling for cogeneration unit
Cylinders		6
Bore X Stroke(mm)		140 X 152
Displacement(L)		14
Compression Ratio		11:01
Engine Rate Power(kW)		230
Oil Recommended		API service grade CD or higher SAE 15W-40 CF4
Oil Consumption		0.5
(g/kW.h)
Exhaust Temperature		600℃
Net Weight(kG)		3380
Dimension (mm)	L	3470
	M	1230
	H	2300
