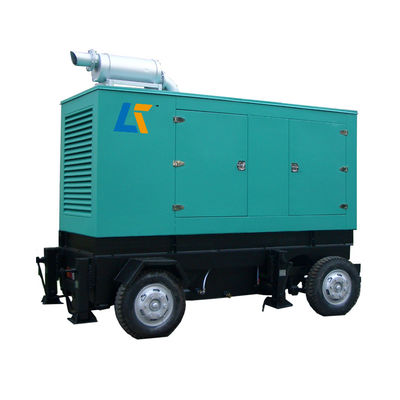

400 kw Cummins Diesel Generator , Trailer Diesel Generator With Canopy

Brand Name:	AIKE POWER
Model Number:	AC23T
MOQ:	1
Price:	negotiate
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Name:

Trailer Genset

Noise Level:

≤75dB(A)@7m

Prime Power:

400kW/500kVA

Controller:

Digital Control Panel

Cooling System:

Radiator With Fan And Water Tank

Engine Type:

4-stroke, Water-cooled

Fuel Type:

Diesel

Rated Frequency:

50Hz

Rated Voltage:

400V Adjustable

Starting Method:

Electric Start

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Cummins 400kw Diesel Generator Set

400 Kw Cummins Diesel Generator

Trailer Diesel Generator With Canopy

Product Description

20kVA Yuchai Trailer Genset With Canopy , Power Generator Set

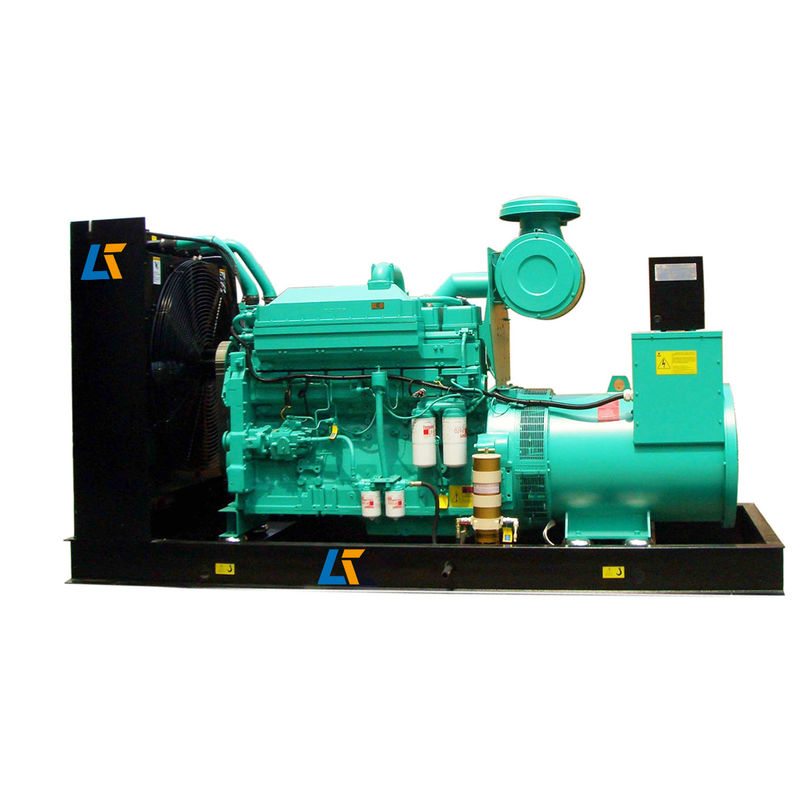

Yuchai/Cummins/Perkins Diesel Engine and Diesel Generator set:

50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators you can choose

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 /24 /36 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set		Genset Model	AC500
		Rating Power (KW/KVA)	400/500
		Standby Power(KW/KVA)	440/550
		Rating Ammeter(A)	721
Diesel engine	General data	Engine model	KTA19-G4
		Prime Power(KW/HP)	448/609
		Standby Power(KW/HP)	504/685
		number of Cylinder & Configuration	6 cylinders in line
		Bore X Stroke (mm)	159X159
		Displacement(l)	19
		Compression Ratio	13.9:1
		Governor type	Electronic governor
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	86
		Max. Exhaust Gas Temperature(℃)	38
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbo & After cooled
		Max. intake depression(mbar)	6
		Combustion air Volume(m³/min)	31.9
	Fuel system	Rating Fuel Consumption(l/h)	107
	Fuel system	75% full Fuel Consumption(l/h)	80
	Lubrication system	Total oil capacity(l)	50
		Max permissible oil temp(℃)	121
		Oil pressure at rated rpm(KPA)	241_345
	Cooling system	Total Coolant capacity(l)	91
		Max. temperature of coolant(℃)	100
		Fan cooling air flow(m³/min)	588
Alternator		Alternator model	HCI544C
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	400/500
		Eff.%	93.8%
		Power Factor	0.8
		Exciting type	Brushless self-exciter AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	2X200AH 12V
Dimension		Generator set dimension (LXWXH)	3750x1250x1800
Weight		Generator set Net Weight (kg)	4800
