20kVA Yuchai Trailer Genset , Power Generator Set With Canopy

Brand Name:	AIKE POWER
Model Number:	AC23T
MOQ:	1
Price:	negotiate
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Name:

Trailer Genset

Noise Level:

≤75dB(A)@7m

Fuel Type:

Diesel

Brand:

Aike

Prime Power:

16kW/20kVA

Controller:

Digital Control Panel

Cooling System:

Radiator With Fan And Water Tank

Engine Type:

4-stroke, Water-cooled

Rated Frequency:

50Hz

Rated Voltage:

400V Adjustable

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

20kVA Trailer Genset

Yuchai Trailer Genset

Trailer Power Generator Set

Product Description

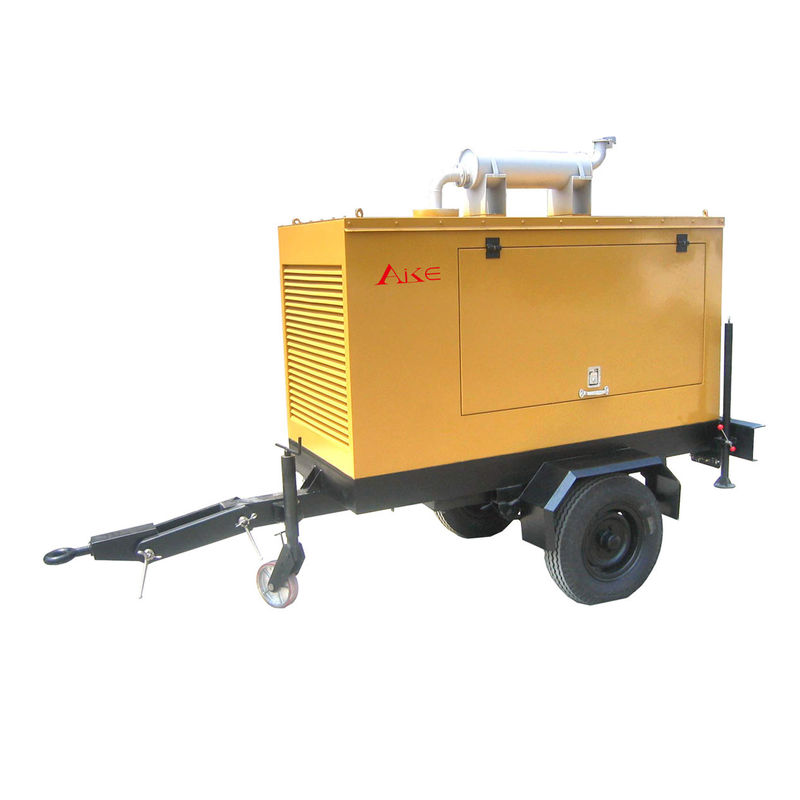

20kVA Yuchai Trailer Genset With Canopy , Power Generator Set

Yuchai/Cummins/Perkins Diesel Engine and Diesel Generator set:

50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators you can choose

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 /24 /36 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set		Genset Model	AY23
		Rating Power (KW/KVA)	16/20
		Standby Power(KW/KVA)	18/22.5
		Rating Ammeter(A)	29
Diesel engine	General data	Engine model	YCDV254FHZ-25
		Prime Power(KW/KVA)	20/25
		Standby Power(KW/KVA)	22/27.5
		number of Cylinder & Configuration	4 cylinders in line
		Bore X Stroke (mm)	89/100
		Displacement(l)	2.5
		Compression Ratio	17.5:1
		Governor type	Electric start
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	33
		Max. Exhaust Gas Temperature(℃)	550
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbocharged intercoolant
		Max. intake depression(KPA)	12
		Combustion air Volume(m³/min)	33
	Fuel system	Rating Fuel Consumption(l/h)	50.4
	Fuel system	75% full Fuel Consumption(l/h)	37.4
	Lubrication system	Total oil capacity(l)	21
		Max permissible oil temp(℃)	97
		Oil pressure at rated rpm(KPA)	345-413
	Cooling system	Total Coolant capacity(l)	10
		Max. temperature of coolant(℃)	550
		Fan cooling air flow(m³/min)	125
Alternator		Alternator model	AK-16-4
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	16/20
		Eff.%	87.5%
		Power Factor	0.8
		Exciting type	Brushless self-exciter, AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	2X60AH 12V
Dimension		Generator set dimension (LXWXH)	1856x820x1271
Weight		Generator set Net Weight (kg)	622
