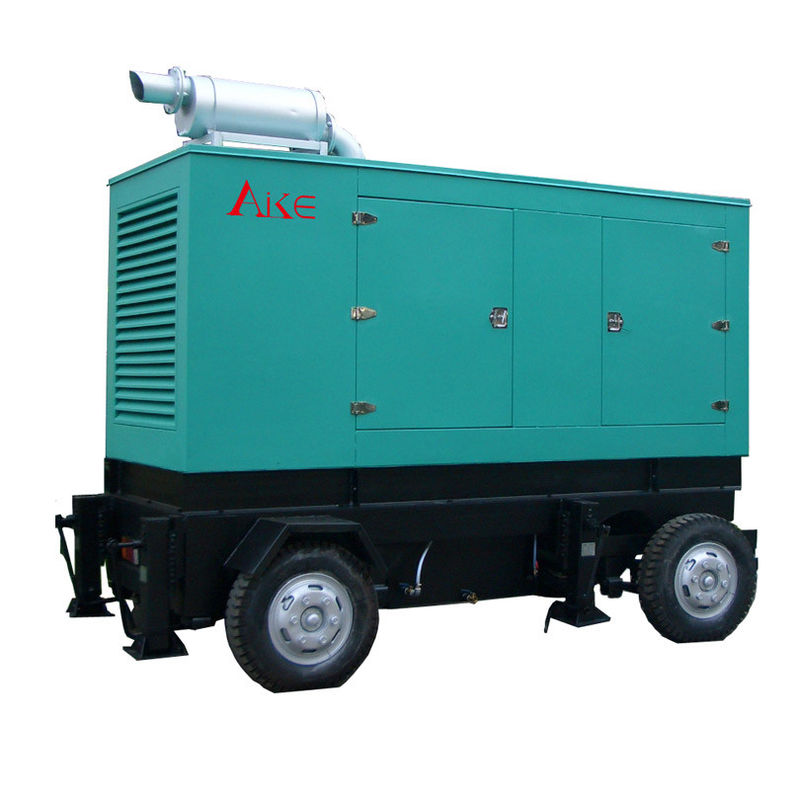

Cummins Trailer Genset Soundproof Mobile Generator Set With Canopy

Brand Name:	AIKE POWER
Model Number:	AC500T
MOQ:	1
Price:	USD
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Name:

Trailer Genset

Cooling System:

Water-cooled

Dimensions:

40' X 8'6

Frequency:

50/60 Hz

Fuel Tank Capacity:

1000 Gallons

Fuel Type:

Diesel

Model:

TG-1000

Power Rating:

1000 KW

Sound Level:

75 DB(A) At 23 Feet

Trailer Type:

Tandem Axle

Voltage:

480V

Weight:

30,000 Lbs

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Cummins Trailer Genset

ISO Trailer Genset

Soundproof Mobile Generator Set

Product Description

Trailer Genset With Soundproof Canopy,Silent Genset With Trailer,Mobile Generator Set,Mobile Power Diesel Generator Set

Cummins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.
Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set		Genset Model	AC500T
		Rating Power (KW/KVA)	360/450
		Standby Power(KW/KVA)	400/500
		Rating Ammeter(A)	649
Diesel engine	General data	Engine model	KTA19-G3
		Prime Power(KW/HP)	403/548
		Standby Power(KW/HP)	448/609
		number of Cylinder & Configuration	6 cylinders in line
		Bore X Stroke (mm)	159X159
		Displacement(l)	19
		Compression Ratio	13.9:1
		Governor type	Electronic governor
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	80.7
		Max. Exhaust Gas Temperature(℃)	524
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbo & After cooled
		Max. intake depression(mbar)	6
		Combustion air Volume(m³/min)	29.2
	Fuel system	Rating Fuel Consumption(l/h)	83
	Fuel system	75% full Fuel Consumption(l/h)	84
	Lubrication system	Total oil capacity(l)	50
		Max permissible oil temp(℃)	121
		Oil pressure at rated rpm(KPA)	241_345
	Cooling system	Total Coolant capacity(l)	91
		Max. temperature of coolant(℃)	100
		Fan cooling air flow(m³/min)	588
Alternator		Alternator model	HCI544C
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	360/450
		Eff.%	92.7%
		Power Factor	0.8
		Exciting type	Brushless self-exciter AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	2X150AH 12V
Dimension		Generator set dimension (LXWXH)	3550x1250x1800
Weight		Generator set Net Weight (kg)	4350
