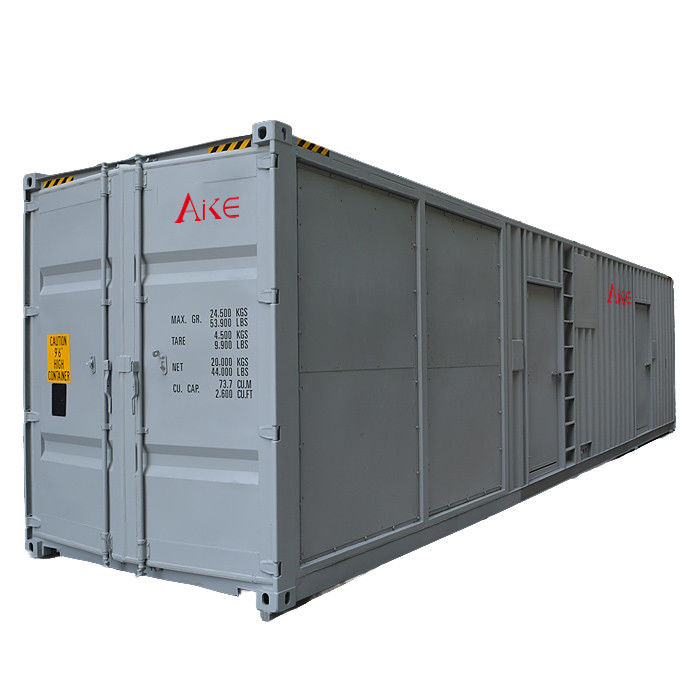

Air Cooled Water Cooled Industrial Diesel Generator Set 50Hz 60Hz

Brand Name:	AIKE POWER
Model Number:	AP1375
MOQ:	1
Price:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	50 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Type:

Diesel Generator Set

Controller:

Deepsea/Deif/ComAp

Cooling System:

Water-cooled/Air-cooled

Engine Brand:

Cummins/Perkins/Yuchai/Shangchai

Frequency:

50/60Hz

Alternator Brand:

Stamford/Leroy Somer/Marathon

Fuel Tank Capacity:

Customized

Fuel Type:

Diesel

Noise Level:

≤75dB

Starting Method:

Electric Start

Voltage:

220/380V , 230/400V , 240/415V(adjustable)

Warranty:

1 Year/1000 Hours

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

Air Cooled Industrial Diesel Generator Set

Water Cooled Industrial Diesel Generator Set

Industrial Diesel Generator Set 50Hz

Product Description

Uninterrupted Power Solution , Supper Genset , Diesel Generator Set , Industrial Diesel Generator

Some factories or hotels need the power not be interrupted,we can depend on it to make another controller which can detect the signal in advance and will be started the generator set in advance to avoid some problems.The detailed solution,welcome to contact with us.

Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.

Some factories and hotels no need the

Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Engine can be Cummins, Perkins,Yuchai,Shangchai,volvo and so on

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set	Genset Model	AP1375
	Rating Power (KW/KVA)	1000/1250
	Standby Power(KW/KVA)	1100/1375
	Rating Ammeter(A)	1804
Diesel Engine	Engine Model	4012-46TWG2A
	Prime Power(KW)	1097
	Standby Power(KW)	1207
	Bore X Stroke (mm)	160X190
	Number of Cylinder & Configuration	12V
	Displacement(l)	45.8
	Compression Ratio	13.6:1
	Aspiration	Turbocharged & after-cooled
	Max. intake depression(mbar)	6
	Combustion air Volume(m³/min)	91
	Max. Exhaust back Pressure(mbar)	10
	Exhaust Gas Flow(m³/min)	245
	Max. Exhaust Gas Temperature(℃)	460
	Cooling	Water cooled with Radiator
	Fan cooling air flow(m³/min)	1380
	Total Coolant capacity(l)	235
	Max. temperature of coolant(℃)	96
	Max. permissible oil temp.(℃)	105
	Total oil capacity(l)	178
	Rating Fuel Consumption(l/h)	265
	Governing Type	Electrics Governor
Alternator	Rating Voltage(V)	400/230
	Alternator Model	LSA50.2M6
	Rating Capacity(KW/KVA)	1030/1287.5
	Eff.%	94.7%
	Power Factor	0.8 lagged
	Exciting type	PMG, DVR
	Voltage regulation	±0.5%
	No. of Phase	3 phase 4 wire
	Enclosure Class	IP23
	Class of Insulation	H
Battery	Rating Capacity(AH)	4X150AH 12V
	Generator set dimension (LXWXH)	5200x2080x2520 mm
	Generator Weight (kg)	10500
	Soundproof Canopy (40HQ)	12192X2438X2896mm
	Noise at 7m around the canopy	73dBA
