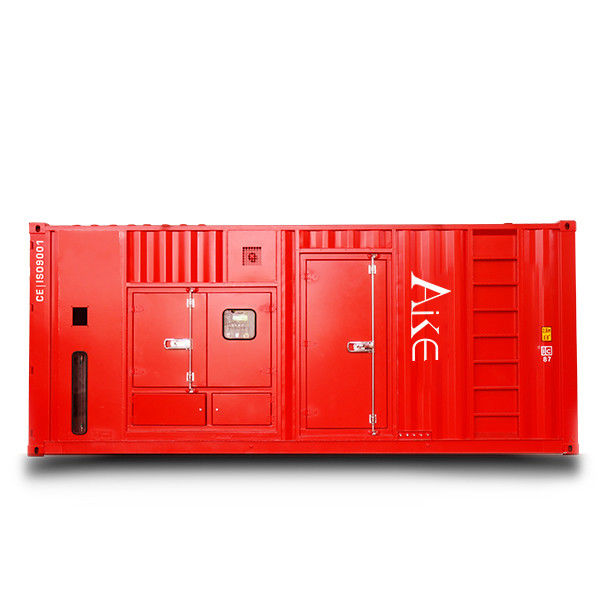

2000kVA Diesel AC Generator , Customized Industrial Diesel Genset

Brand Name:	AIKE POWER
Model Number:	AP2500
MOQ:	1
Price:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	50 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Type:

Industrial Diesel Genset

Alternator Brand:

Stamford/Leroy Somer/Marathon

Controller:

Deepsea/Deif/ComAp

Cooling System:

Water-cooled/Air-cooled

Engine Brand:

Perkins

Frequency:

50/60Hz

Fuel Tank Capacity:

Customized

Fuel Type:

Diesel

Voltage:

220/380V , 230/400V , 240/415V(adjustable)

Warranty:

1 Year/1000 Hours

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

2000kVA Diesel AC Generator

2000kVA Diesel Generator

Customized Industrial Diesel Genset

Product Description

2000kVA Diesel Ac Generator , Supper Genset , Diesel Generator Set , Industrial Diesel Generator

Some factories or hotels need the power not be interrupted,we can depend on it to make another controller which can detect the signal in advance and will be started the generator set in advance to avoid some problems.The detailed solution,welcome to contact with us.

Features:

Soundproof enclosure for quiet operation

Heavy-duty diesel engine for long-lasting performance

Automatic voltage regulation for stable power output

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Compose:

Engine can be Cummins, Perkins,Yuchai,Shangchai,volvo and so on

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set	Genset Model	AP2500
	Rating Power (KW/KVA)	1800/2250
	Standby Power(KW/KVA)	2000/2500
	rating Ammeter(A)	3247@400V
Diesel Engine	Engine Model	4016-61TRG3
	Prime Power(KW)	1975
	Standby Power(KW)	2183
	Bore X Stroke (mm)	160X190
	number of Cylinder & Configuration	16 V
	Displacement(l)	61.1
	Compression Ratio	13.6:1
	Aspiration	Turbocharged & Aftercooled
	Max. intake depression(kPa)	6
	Combustion air Volume(m³/min)	175
	Max. Exhaust back Pressure(kPa)	10
	Exhaust Gas Flow(m³/min)	490
	Max. Exhaust Gas Temperature(℃)	560
	Cooling	Water cooled with Radiator
	Fan cooling air flow(m³/min)	2208
	Total Coolant capacity(l)	95
	Max. temperature of coolant(℃)	98
	Max. permissible oil temp.(℃)	100
	Total oil capacity(l)	237.2
	Rating Fuel Consumption(g/kW.h)	209
	Governing Type	Electrics
Alternator	Rating Voltage(V)	400/230 adjustable
	Alternator Model	LSA 51.2 VL85
	Rating Capacity(KW/KVA)	1800/2250
	Eff.%	96.4%
	Power Factor	0.8 lagged
	Exciting type	Brushless, PMG exciter, DVR
	Voltage regulation	±0.5%
	No. of Phase	3 phase 4 wire
	Enclosure Class	IP23
	Class of Insulation	H
Battery	Rating Capacity(AH)	4X200AH 12V
Dimension	Generator set dimension (LXWXH)	6200X2300X2800 mm
Soundproof Canopy	40HQ for soundproof canopy	Self designed inside
Weight	Generator set Net Weight (kg)	16000
