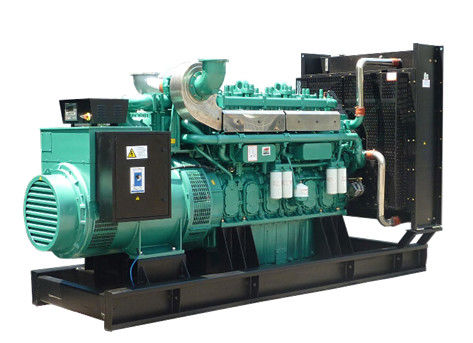

600kW Custom Diesel Generator Air Cooled Water Cooled Genset

Brand Name:	AIKE POWER
Model Number:	AC275
MOQ:	1
Price:	negotiate
Payment Terms:	L/C, T/T
Supply Ability:	50 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Type:

600kW Diesel Generator

Controller:

Deepsea/Deif/ComAp

Engine Brand:

Yuchai

Frequency:

50/60Hz

Fuel Tank Capacity:

Customized

Voltage:

220/380V , 230/400V , 240/415V(adjustable)

Alternator Brand:

Stamford/Leroy Somer/Marathon

Warranty:

1 Year/1000 Hours

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

600kW Custom Diesel Generator

Custom Diesel Generator Genset

600kW Diesel Generator

Product Description

600kW Diesel Generator , Industrial Diesel Generator , Diesel Powered Generator

When the generator is not loaded, the armature current is zero, which is called no-load operation. At this time, the three-phase winding of the stator of the motor only has the no-load electromotive force E0 (three symmetrical) induced by the excitation current If, and its magnitude increases with the increase of If. However, due to the saturation of the core of the motor magnetic circuit, the two are not proportional. The curve reflecting the relationship between the no-load electromotive force E0 and the excitation current If is called the no-load characteristic of the synchronous generator.

ATS can be option

Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Engine can be Cummins, Perkins,Yuchai,Shangchai,volvo and so on

Meet the environmental temperature 40 ℃ water tank radiator, Driving belt cooling fans, with fan safety shield

24 V charging generators

Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree

Shock absorber

Dry air filter, Fuel filter, Oil filter

Power output circuit breaker

Standard control panel

12 V battery and battery connection cables

Battery Charger

Exhaust pipe, Bellows, Flange, Muffler set
8 hours’ base tank

Documents and Manuals

Generator set		Genset Model	AY825
		Rating Power (KW/KVA)	600/750
		Standby Power(KW/KVA)	660/825
		Rating Ammeter(A)	1088
engine	General data	Engine model	YC6TD1000-D30
		Prime Power(KW/KVA)	668/835
		Standby Power(KW/KVA)	735/919
		number of Cylinder & Configuration	6 cylinders in line
		Bore X Stroke (mm)	200*210
		Displacement(l)	19.598
		Compression Ratio	14:1
		Governor type	Electric start
		Rated RPM	1500
	Exhaust system	Exhaust gas flow(m³/min)	33
		Max. Exhaust Gas Temperature(℃)	550
		Max. Exhaust back Pressure(KPA)	10
	Air intake system	Aspiration Type	Turbocharged intercoolant
		Max. intake depression(KPA)	12
		Combustion air Volume(m³/min)	33
	Fuel system	Rating Fuel Consumption(l/h)	50.4
	Fuel system	75% full Fuel Consumption(l/h)	37.4
	Lubrication system	Total oil capacity(l)	21
		Max permissible oil temp(℃)	97
		Oil pressure at rated rpm(KPA)	345-413
	Cooling system	Total Coolant capacity(l)	10
		Max. temperature of coolant(℃)	550
		Fan cooling air flow(m³/min)	125
Alternator		Alternator model	AK-600-4
		Rating Voltage(V)	400/230
		Rating Capacity(KW/KVA)	600/750
		Eff.%	87.5%
		Power Factor	0.8
		Exciting type	Brushless self-exciter, AVR
		Voltage regulation	±0.5%
		No. of Phase	3 phase 4 wire
		Enclosure Class	IP23
		Class of Insulation	H
Battery		Rating Capacity(AH)	4X150AH 12V
Dimension		Generator set dimension (LXWXH)	4663x1500x2100
Weight		Generator set Net Weight (kg)	7228
