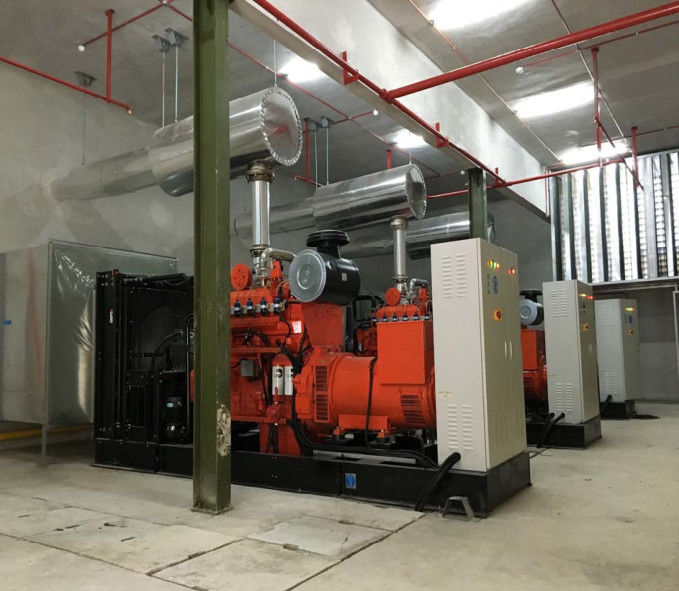

Cummins 100kw Natural Gas Generator With Industrial Silencer / Reducer Valve

Brand Name:	AIKE POWER
Model Number:	AC100-NG
MOQ:	1
Price:	USD
Payment Terms:	L/C, T/T
Supply Ability:	50 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Alternator Type:

Brushless

Aspiration:

Turbocharged

Color:

As Your Requirement

Controller:

Digital

Cooling Method:

Water Cooling

Cooling System:

Water-cooled

Frequency:

50/60Hz

Continue Power:

100kW

Speed:

1500/1800rpm

Name:

Cummins 100kw Natural Gas Generator

Packaging Details:

plastic wrap or wooden case

Supply Ability:

50 set/m

Highlight:

Cummins 100kw Natural Gas Generator

100kw Natural Gas Generator

Natural Gas Generator 100kw

Product Description

Gas Generator Set , Industrial Silencer And Reducer Valve Available For Gas Generator Set

Main configuration and features

- Highly efficient gas engine

- AC synchronous alternator

- Gas safety train and gas protection device against leakage

- High efficient water-air intercooler

- High efficient turbocharger

- Wet exhaust manifold

- USA ALTRONIC ignition system, including: ignition module, ignition lead, ignition coil, spark plug, ignition sensor

- Ignition high energy signal panel

- Switherland Speed control system, including: actuator, speed governor, throttle valve, speed sensor

- Mixer

- Unattached switch cabinet and electric control cabinet

- Multi-functional control system with simple operation

- Monitoring battery voltage and charging automatically

- Industrial silencer with silencing ability of 12-20dB(A)

- Reducer valve (optional)

- Gas leakage detector (optional)

- Auto refilling oil system(optional)

- Communication module (optional)

Structure type	Open or Soundproof
Canopy painting	High-class powder coating
Electrical control cabinet	Integrated into unit,IP54
Noise level@7m, dB(A)	75

Dimension(LxWxH), mm	2800x850x1450
Weight, kg	2500

Model	HCG125
Brand	Aike-CUMMINS
Type	4 stroke, water-cooled, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning
Engine output(kWm)	145
Cylinders& Arrangement	6 in line
BoreXStroke(mm)	114x135
Displacement(L)	8.3
Compression ratio	10.5:1
Speed(RPM)	1500
Rotation direction	Anti-clockwise viewed on flywheel
Ignition timing	°BTDC 20
Aspiration	Intercooled and Turbocharged
Cooling Method	Water cooled by fan radiator
Gas mixer	IMPOC
Governing system	Switherland brand
Gas valves	Intake 2 & exhaust 2 per cylinder
Ignition timing	1-5-3-6-2-4
Ignition controller	Altronic CD1 unit
Starting method	Electric, 24 V motor
Idling speed(r/min)	700
Oil recommended	Gas engine special oil, SAE 15W-40 CF4 or above
Oil consumption	≤0.5g/kW.h

Fuel type	Natural gas
Fuel component	≥80% CH4
Methane no.	MN> 70
Fuel consumption @100% load, m3/h	37.70
H2S content	≤100ppm
NH3 content	≤5ppm
Silicon content	≤5mg/Nm3
Impurities content	≤30mg/Nm3
Water content	no free water
Supply gas pressure range, kPa	10~20
