80kW DCEC Trailer Mobile Diesel Generator, Emergency Genset For Philippines Island Off-Grid Power | Aike Power

80kW DCEC Trailer Mobile Diesel Generator, Emergency Genset For Philippines Island Off-Grid Power | Aike Power

Brand Name: AIKE POWER
Model Number: AC80
MOQ: 1
Price: Negotiate
Payment Terms: L/C,T/T
Supply Ability: 1000 set/m
Detail Information
Place of Origin:
China
Certification:
ISO
Packaging Details:
plastic wrap or wooden case
Supply Ability:
1000 set/m
Product Description

If you are looking for a rugged, towable emergency power source for remote islands, road construction sites and temporary off-grid projects in the Philippines and other power-shortage regions of Southeast Asia, this 80kW DCEC trailer type mobile diesel generator is a practical power solution.

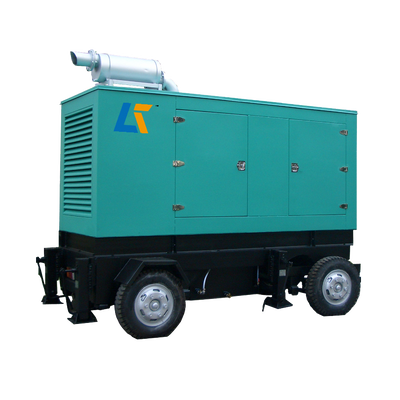

This mobile genset adopts genuine Dongfeng (DCEC) 6BT5.9-G2 engine, matched with high-efficiency brushless alternator and heavy-duty mobile trailer chassis. It integrates fuel tank, water-oil separator, silencer and control cabinet into one skid, ready for towing by pickup truck or tractor without extra installation work on site.

Different from stationary open-frame or container generators, our trailer-mounted design focuses on rapid relocation, fast startup and easy maintenance. Aike Power supports flexible configuration of ATS, parallel busbar system, remote monitoring, cold-start heating kit for different climate zones.

We deliver custom power schemes covering small & medium gensets from 3kW to 3MW, and large-scale power plant solutions from 1MW up to 200MW. No matter tropical high-temperature islands, African mining zones or frigid cold regions in Russia, we tailor generator systems matching local climate and grid conditions, with mature project cases worldwide.

Disclaimer: Product photos for reference only. Final configuration, voltage and frequency will be confirmed according to customer project requirements.

Technical Specification Table

Item Parameter
Genset Model AC80
Prime Power 80kW / 100kVA
Standby Power 88kW / 110kVA
Engine Brand & Model DCEC (Dongfeng), 6BT5.9-G2
Engine Type 6-cylinder, in-line, 4-stroke, water-cooled diesel
Displacement 5.9 L
Rated Speed 1500 rpm (50Hz) / Optional 1800rpm (60Hz)
Alternator Brushless, self-excited, IP23 / IP54 optional
Voltage 400/230V 3-phase 4-wire (Customizable 220V, 480V etc)
Control System Deepsea controller, auto start/stop, protection alarm
Trailer Type Heavy-duty 2-wheel trailer, braking system, towing hook, support legs
Fuel Tank Built-in long-running base fuel tank
Protection Over-speed, low oil pressure, high water temp, over-current, short circuit
Dimension (L×W×H) 2900 × 1720 × 2200 mm
Net Weight Approx 2300 kg
Optional Parts ATS, parallel module, remote monitoring, cold start heater, silencer

Core Features & Selling Points

1. Mobile Trailer Design for Fast Relocation

Heavy-duty towable trailer with braking and stable support legs. It can be quickly transferred between construction zones, island sites and temporary camps, perfect for frequent moving power demand.

2. Genuine DCEC Power Core

Original DCEC 6BT5.9-G2 engine, stable output, low fuel consumption, mature spare parts supply network in Southeast Asia. Easy to source maintenance parts locally in Philippines.

3. Ready-to-use Emergency Power Package

Complete factory assembly, pre-test before shipment. No complicated civil installation, only connect load cable after arriving at site.

4. Strong Environment Adaptability

Standard tropical cooling package for hot & humid island climate; optional cold-start heating system for low-temperature areas.

5. Expandable Parallel & Auto Transfer Function

Support ATS automatic mains failure switch, multi-unit parallel connection via parallel busbar cabinet to expand total power capacity.

6. Full Customization Service

Aike Power adjusts frequency, voltage, protection grade, silencer level and auxiliary components according to local grid standards and project environment.

Application Fields

  • Philippine island construction, remote island off-grid power supply
  • Highway, bridge and temporary road construction sites
  • Emergency backup power for remote mining camps
  • Temporary event power, field medical station, mobile work camp
  • Rural electrification projects in power-shortage Southeast Asia regions
  • Mobile disaster rescue emergency power station

Custom Power Solution by Aike Power

Aike Power is not only a genset supplier, but your independent power system designer.

  • Small & medium single genset: 3kW ~ 3MW diesel / gas / biogas generator set
  • Large-scale power plant turnkey solution: 1MW ~ 200MW multi-generator parallel power station
  • Climate customized design: high temp heat dissipation for Africa, anti-freezing heating + waste heat recovery system for frigid zones such as Russia
  • System integration: ATS, parallel cabinet, fuel supply system, exhaust treatment, remote SCADA monitoring

We cooperate with DCEC, Yuchai, Weichai, Perkins, MTU, SDEC and CSSC heavy fuel engine brands, match suitable alternator, filter, radiator and separation accessories to build cost-effective power system for your project.

Warranty Commitment

  1. Warranty Period: 12 months or 1000 running hours from delivery date, whichever comes first.
  2. Warranty covers genuine factory defects of engine, alternator and main control components.
  3. We supply global after-sales technical support, operation manual, wiring diagram and remote troubleshooting guidance.
  4. Spare parts supply service: we can arrange original DCEC spare parts shipment to Philippines and other global project sites.
  5. Exclusion: Damage caused by improper operation, lack of regular maintenance, wrong fuel or natural wear is not covered by warranty.

FAQ

Q1: Is this 80kW DCEC trailer generator suitable for Philippines island 50Hz power grid?

A: Yes, standard unit is 50Hz 400V, we also support 60Hz 480V customization for local requirements. The cooling system is upgraded for high humidity & hot tropical island environment.

Q2: Can this trailer genset work together with other generators for parallel operation?

A: Yes. We can configure parallel controller and connect with our parallel busbar cabinet, to realize multi-genset synchronous operation for larger power demand.

Q3: How long is the lead time for this 80kW DCEC mobile generator?

A: Normally 7–15 working days for standard model. Custom configuration with ATS, remote monitor or special voltage will need extra production time.

Q4: Can you send technician to our site for installation and commissioning in Philippines?

A: We provide overseas technical guidance service. For large batch or power plant project, we can arrange on-site commissioning service upon negotiation.

Q5: What fuel does this DCEC trailer generator use?

A: It uses common diesel fuel. We equip standard water-oil separator to protect engine from water and impurity in fuel, which is critical for remote island projects.

Q6: Can I add cold start heating kit if I use this unit in cold regions?

A: Sure. We support optional preheating heater kit for low temperature working condition.
