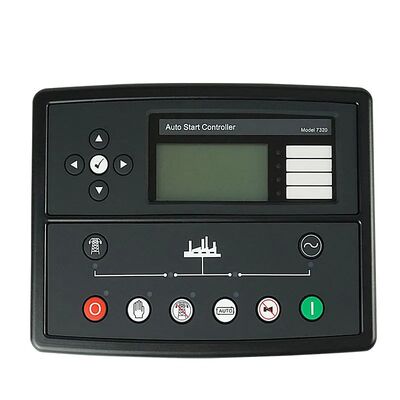

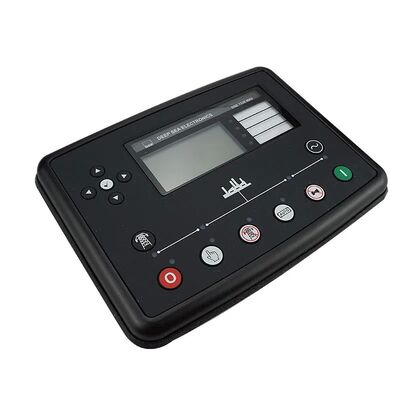

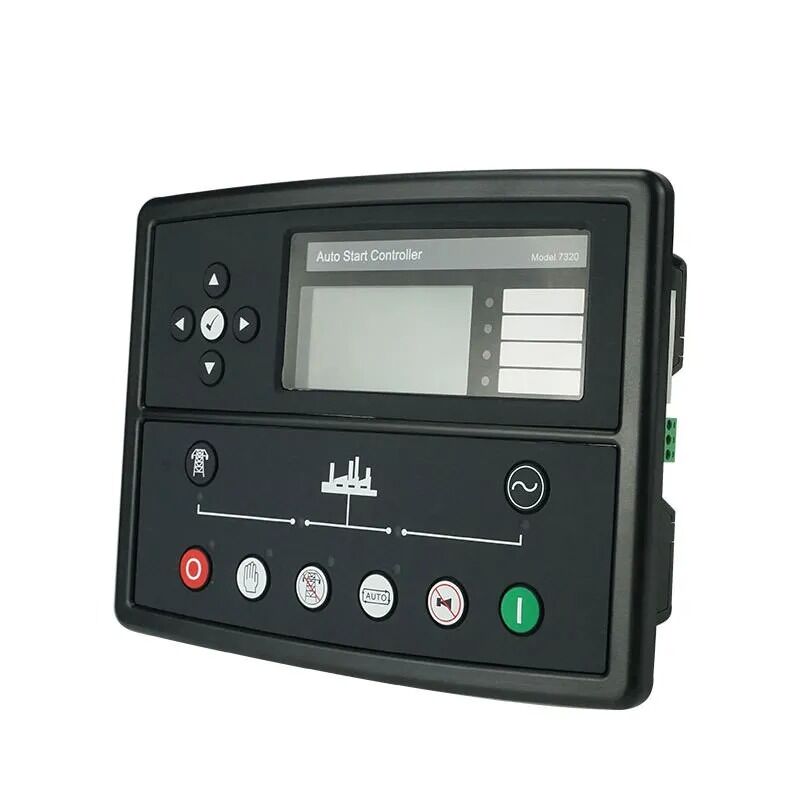

Deepsea DSE7320 MKII Auto Mains Failure Genset Controller

Deepsea DSE7320 MKII auto mains failure genset controller, automatically starts generator upon mains power loss, provides full single unit engine & power parameter monitoring, English backlit LCD screen. Widely adopted for global EPC and standby power station projects.

The Deepsea DSE7320 MKII is an AMF (Auto Mains Failure) control module designed for single diesel & gas generator sets. Unlike multi-unit parallel controllers such as DSE8610, this unit focuses on standby emergency power scenarios: it continuously monitors utility mains supply. Once mains failure is detected, it triggers automatic genset start; when grid power recovers, it safely shuts down the generator set.

Equipped with backlit LCD screen supporting English display, the DSE7320 MKII enables local real-time monitoring of engine conditions, generator voltage, frequency and power data. It integrates comprehensive engine protection, remote communication ports and built-in PLC editor, which is the preferred control component for global power EPC contractors and backup power station projects.





• Auto Start & Mains Failure Detection
  Real-time monitoring of utility grid. Auto start genset on power cut, cool-down stop after mains restore, perfect for standby backup power systems.
• Complete Single Genset Monitoring & Protection
  Track engine speed, oil pressure, coolant temperature, battery voltage, running hours, generator 3-phase power parameters. Trigger warning or shutdown to protect genset from damage.
• English LCD & Multi-language Support
  Backlit LCD with English default interface, simple menu navigation, easy for global field technicians to read and operate.
• Diversified Remote Communication

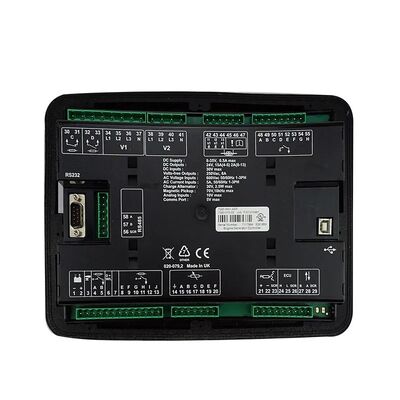

  RS485 / RS232 / USB interfaces, support Modbus protocol, connect to BMS/SCADA system for remote monitoring for EPC power station.
• Flexible I/O & PLC Logic Editor
  Custom programmable logic, expand via DSENet, compatible with most diesel/gas generator engines, easy integration for OEM generator manufacturers.

• Industrial standby power station for EPC engineering projects
• Commercial building, hospital, telecom base station single generator backup system
• Diesel / gas single genset control upgrade & retrofit
• Global generator OEM assembly & spare parts replacement

• For multi-generator parallel synchronisation solution, view [DSE8610 multi-genset parallel controller]
• See our complete power project case: [800kW data center silent diesel generator set]

A: DSE7320 MKII is AMF single unit auto start controller for one genset with mains failure detection. DSE8610 is multi-unit parallel synchronizing controller for multiple generators load sharing.

A: Yes, DSE7320 MKII supports diesel and gas single genset, compatible with mechanical engine and J1939 CAN electronic engines.

A: It has RS485, RS232, USB communication ports with Modbus, supporting remote SCADA and BMS system connection.

A: Yes, English is supported, multiple languages are configurable via PC software.
