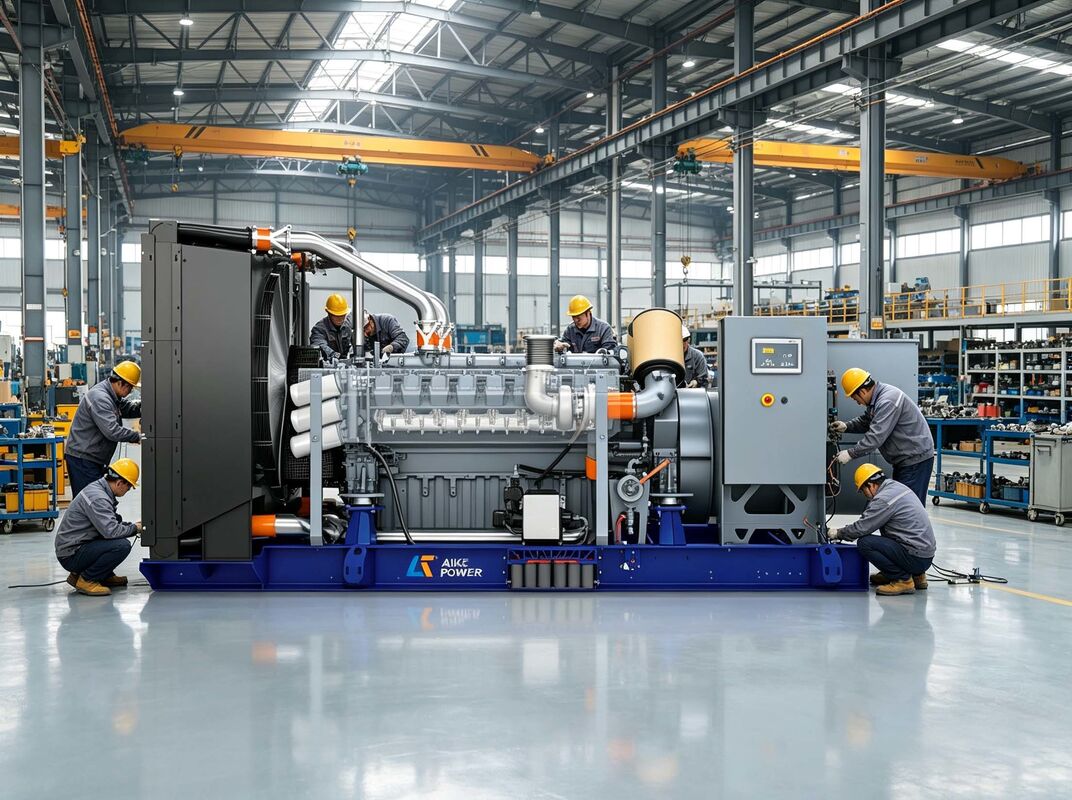

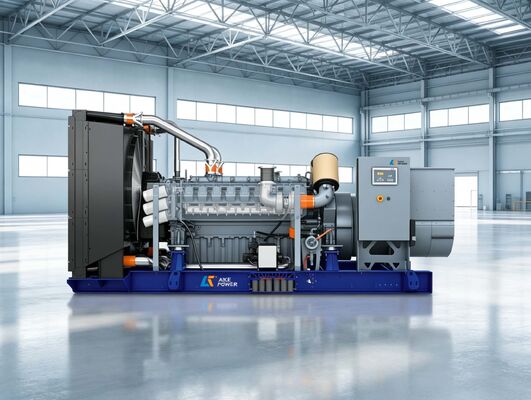

AM2000 2000kW / 2200kW Heavy-Duty Industrial Diesel Generator Set

The Aike Power AM2000 is a top-tier large-scale industrial generator set built around authentic German MTU 20V4000G23 heavy-duty diesel engine, delivering stable 2000kW prime power and 2200kW standby power. Developed for continuous full-load operation and critical emergency backup power, this MTU-powered genset serves large industrial parks, open-pit mines, hyperscale data centers, oil & gas fields and municipal power plants worldwide.

Measuring 8082 × 2555 × 2592 mm with a total gross weight of 20500kg, the unit adopts an integrated reinforced base frame with anti-vibration damping structure, guaranteeing stable long-term unattended running. All core MTU engine components are original, backed by global Rolls-Royce MTU after-sales spare parts network.

As the heart of AM2000, the MTU 20V4000G23 V-type industrial diesel engine carries German precision engineering under Rolls-Royce Power Systems, famous for extreme durability and ultra-low operating costs.

• Engine Model: MTU 20V4000G23
• Cylinder Layout: 20 cylinders, V-type 90° arrangement
• Bore × Stroke: 170 mm × 210 mm
• Rated Fuel Consumption: 195g/kW·h under full rated load
• Combustion System: Full electronic common rail fuel injection + ADEC intelligent ECU management
• Intake: Turbocharged + water-to-air intercooled
• Displacement: 95.4L, compression ratio 16.5:1
• Rated Speed: 1500rpm (50Hz), optional 1800rpm for 60Hz markets

✅ Advanced ADEC digital control system for real-time fault diagnosis and automatic load adjustment

✅ Optimized combustion design cuts fuel consumption to only 195g/kW·h, slashing long-term fuel expenditure

✅ Reinforced crankcase and wet replaceable cylinder liners extend overhaul intervals greatly

✅ Strong transient load response, stable voltage output even under sudden large load fluctuation

✅ Global MTU authorized service & spare parts support across Africa, Middle East, Russia and Southeast Asia

1. Premium MTU German engine core, zero frequent breakdowns for year-round heavy-duty operation
2. Dual power rating: 2000kW continuous prime power + 2200kW emergency standby power to match variable industrial loads
3. Oversized integrated radiator system, stable performance under high-temperature tropical & desert environments
4. Flexible output voltage options: 400V low voltage / 6.6kV / 10.5kV high voltage for long-distance power transmission
5. Compatible with Deepsea / ComAp intelligent controllers, supporting single-unit auto-start and multi-unit parallel synchronization

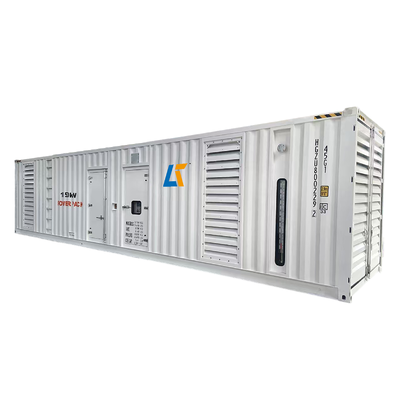

6. Multiple customizable enclosure forms: open frame, silent canopy, 20ft/40ft containerized super silent unit
7. Full international certifications: ISO 8528, CE, IEC, SASO, meets global industrial power project standards
8. One-stop customization for cold start preheating, dust-proof air filtration and coastal anti-corrosion coating

We provide full tailored upgrades for AM2000 MTU genset to fit diverse project environments:

🔹 Soundproof canopy / containerized super silent enclosure

🔹 ATS automatic mains failure transfer switch cabinet

🔹 Multi-generator parallel synchronization control cabinet

🔹 4G cloud remote real-time monitoring module

🔹 Large external horizontal fuel storage tank

🔹 Water jacket & engine oil preheater for -40℃ cold regions

🔹 Heavy-duty multi-stage air filter for mining & dusty oilfields

🔹 Salt spray anti-corrosion treatment for coastal offshore projects

🔹 High-voltage integrated power distribution cabinet

The AM2000 MTU large power genset is widely adopted for heavy industrial power projects worldwide:

• Large open-pit mines & mineral processing plants (Nigeria, Kazakhstan, South Africa)
• Hyperscale data centers & telecommunication hub stations (Europe, Southeast Asia)
• Oil & gas extraction sites, crude oil gathering stations (Russia Tyumen, Xinjiang oilfields)
• Large manufacturing industrial parks & chemical complexes
• Municipal hospitals, commercial super malls and airport backup power
• Remote off-grid islands and large EPC turnkey power stations

Apart from MTU heavy-duty diesel generator sets like AM2000, Aike Power supplies a complete lineup of power equipment to help industrial clients reuse waste energy and reduce carbon emissions:

• CCEC / Yuchai / Perkins / SDEC series diesel generators
• Petroleum-associated gas, coal bed methane, biogas and industrial tail gas generator sets
• Silent, container, mobile trailer and explosion-proof customized gensets
• Supporting power distribution cabinets, ATS switches, parallel panels and generator spare parts

A1 2000kW prime power allows continuous 24/7 long-term operation for daily production; 2200kW standby power is only for short-time emergency backup during grid outages, not recommended for permanent full-load running.

A2 Yes. We can equip the genset with water jacket & oil preheater plus fully insulated container housing, supporting reliable startup and stable operation under -40℃ low temperature.

A3 Absolutely. Upgrade to DSE8610 synchronization controller to realize automatic load sharing for up to 32 MTU gensets to meet ultra-large total power demand.

A4 The rated fuel consumption is only 195g/kW·h at full load, much lower than equivalent power non-MTU engines, greatly cutting your long-term diesel procurement cost.

A5 Yes, we offer customizable 6.6kV and 10.5kV high-voltage brushless alternator to minimize cable loss for scattered large industrial zones and oilfield well groups.

Submit your project details to our professional industrial power engineers for a 24-hour detailed quotation:

1. Target frequency (50Hz / 60Hz) and required voltage grade
2. Working environment: mine / oilfield / data center / cold coastal area
3. Optional accessories: container, ATS, parallel cabinet, remote monitoring system
4. Daily average running hours and actual production load data

We provide free technical dimension drawings, MTU engine parameter sheets, global sea freight plans and exclusive bulk distributor discounts. OEM & ODM customized design is supported for international EPC contractors.
