AY1000 | 1250kVA 10.5kV High‑Voltage Yuchai Diesel Generator Set

Product Description

AY1000 1250kVA 10.5kV High‑Voltage Yuchai Generator Set Overview

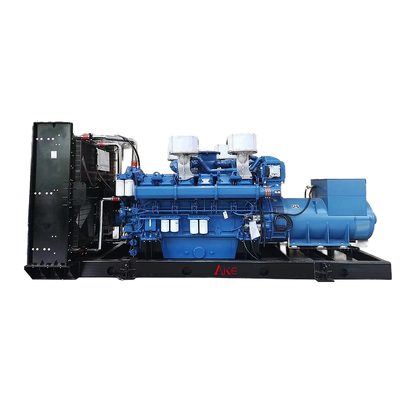

AY1000 is a custom‑built 10.5kV high‑voltage diesel generator set, powered by genuine heavy‑duty Yuchai YC12VTD1680‑D30 industrial engine. Unlike low‑voltage gensets, this unit adopts an integrated high‑voltage alternator to output 10.5kV medium‑high voltage, which effectively cuts down power loss during long‑distance power transmission for large‑scale industrial clusters.

This solution is tailor‑made for large plastic industrial parks, chemical parks and centralized oil‑gas processing stations. It can serve as main power supply or emergency backup power for multi‑building, large‑area industrial sites, solving the problem of high cable cost and large voltage drop in long‑distance low‑voltage power distribution.

For reference of other high‑voltage power solutions:

👉 View our 720kW high‑voltage CCEC generator unit

👉 Check our high‑low voltage distribution cabinet product page

Core Competitive Advantages

1. Heavy‑Duty Yuchai V‑type Industrial Engine Adopt Yuchai YC12VTD1680‑D30 12‑cylinder V‑type heavy‑duty diesel engine, optimized for continuous heavy‑load operation. Robust performance for 24/7 industrial operation, mature global spare‑parts support for large‑scale park projects. Stable power output to match high‑voltage generator load demand.
2. Integrated 10.5kV High‑Voltage Alternator, Low‑Loss Long‑Distance Transmission Built‑in integrated high‑voltage alternator, direct 10.5kV output. Compared with traditional 400V low‑voltage gensets, it sharply reduces line power loss over long‑distance power delivery. It greatly lowers the investment cost of thick‑section power cables, bringing obvious cost‑saving for large‑area industrial parks.
3. Complete High‑Voltage Electrical System for Large‑Scale Industrial Sites The whole set is matched with professional high‑voltage protection, relay protection, and interlock control system. It supports parallel operation of multiple high‑voltage units, to build large‑capacity power stations for plastic industrial parks, chemical parks and centralized oil‑gas processing stations.
4. Flexible Application for Complex Industrial Loads Suitable for mixed loads of production equipment, cooling systems, processing machinery in plastic & chemical industrial zones. It can work as main power supply for off‑grid industrial areas, or as emergency backup power for grid‑connected large factories.
5. Customizable Supporting Power Distribution Solution We provide matched high‑low voltage distribution cabinet solutions. Customers can combine this high‑voltage generator with our distribution equipment to build complete turnkey power supply system for industrial parks.

Yuchai YC12VTD1680‑D30 Engine Technical Parameters

AY1000 Complete High‑Voltage Genset Parameters

Typical Application Scenarios

• Large plastic industrial parks: Main & backup power for multiple production workshops and auxiliary facilities
• Chemical industrial parks: Large‑area long‑distance power supply for chemical processing plants
• Centralized oil‑gas processing stations: Stable high‑voltage power for large‑scale processing facilities
• Large‑scale industrial zones requiring long‑distance power transmission

Technical Note: This is a high‑voltage 10.5kV generator set. Installation, commissioning and maintenance must be performed by qualified high‑voltage electrical technicians in accordance with local electrical safety codes.

Warranty & Commercial Terms

Aike Power provides a full line of brand new and high quality products. Each and every unit is strictly factory‑tested. Warranty is according to our standard conditions: A. 15 months, counted on the day Aike sold to the first buyer; B. One year after installation; C. 1000 running hours (accumulated); subject to the earlier one. Service and spare parts are available from Aike Power or distributors in your location.

‑ Payment terms: 30% T/T advance deposit; 70% balance against B/L copy, or irrevocable L/C at sight. ‑ Production lead‑time: 30‑40 working days upon receipt of deposit or original L/C; high‑voltage customized configuration will extend production cycle.

Frequently Asked Questions

Q1: Why choose 10.5kV high‑voltage generator for large industrial parks?

A: The 10.5kV high‑voltage output reduces power loss in long‑distance power transmission. It cuts cable investment cost for large‑area sites like plastic industrial parks and chemical parks. Our AY1000 adopts heavy‑duty Yuchai engine and integrated high‑voltage alternator. You can also refer to our 720kW high‑voltage CCEC unit for other high‑voltage project options.

Q2: Can AY1000 run multiple units in parallel?

A: Yes. The intelligent high‑voltage control system supports multi‑unit parallel operation, to build large‑capacity power stations for big industrial clusters. We also supply matching high‑low voltage distribution cabinets as supporting solutions.

Q3: Is this unit suitable for centralized oil‑gas processing stations?

A: Yes. It is designed for large‑scale industrial power demand, can serve as main or backup power for centralized oil‑gas processing stations, chemical parks and plastic industrial parks.

Q4: What is the difference between this high‑voltage genset and low‑voltage generator?

A: Low‑voltage gensets have large power loss for long‑distance transmission. AY1000 outputs 10.5kV directly, which is more economical for large‑area factory sites with long power‑delivery distance.
