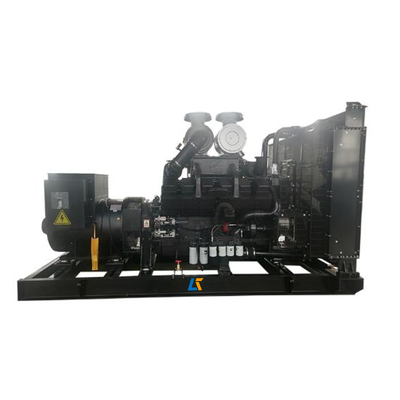

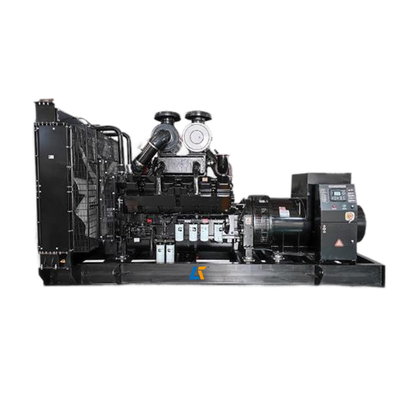

AC720-H 720kW 10.5kV High-Voltage CCEC Diesel Generator Set with KTA38-G2A Engine for Long-Distance Power Transmission

AC720-H high‑voltage diesel generator adopts genuine CCEC KTA38‑G2A 12‑cylinder V‑type turbo‑aftercooled engine, output rated high‑voltage 10.5kV@50Hz. This high‑voltage genset is specially developed for long‑distance oil‑field power transmission and remote mine centralized power station.

Compared with conventional low‑voltage 400V generator, 10.5kV high‑voltage output greatly reduces current value, effectively cuts power loss on long‑distance transmission cables, saves large‑caliber cable investment for scattered mining spots and oil‑well sites.

This unit needs to work with supporting high‑voltage switchgear for complete power distribution solution.

👉 View our high‑voltage power distribution panel:

Aike Power accumulates abundant heavy‑duty industrial project experience.

👉 Check reference: Nigeria large‑scale manufacturing power supply case:

1. 10.5kV high‑voltage direct output:Greatly lower transmission current, minimize cable power loss for long‑distance power delivery across oil‑field zones and scattered mining zones, reduce overall project cable cost.
2. Reliable CCEC KTA38‑G2A power core:V12 heavy‑duty industrial engine, mature heavy‑load performance, adapt to high‑temperature dusty field environment of mine & oil‑field sites, global spare‑parts support.
3. High‑voltage‑grade alternator with strict insulation treatment:Custom‑designed high‑voltage brushless alternator, strict partial‑discharge test before delivery, IP23 protection, H‑class insulation for stable continuous centralized power output.
4. Complete system‑oriented solution:We support matching high‑voltage distribution cabinet, parallel cabinet, remote monitoring module for oil‑field & mine central power station turn‑key project.
5. Factory full‑load & high‑voltage withstand test:Every AC720-H unit completes strict high‑voltage withstand and full‑load performance test before shipment to guarantee field safe operation.

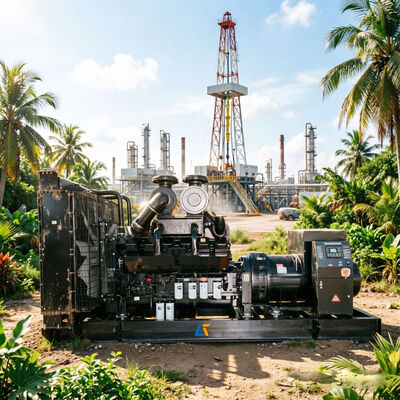

• Large‑scale oil‑field centralized power station: solve long‑distance power supply for scattered oil‑well sites, reduce transmission loss
• Remote large‑size mine projects: centralized power source for multi‑work‑zone long‑distance power transmission
• Heavy‑industry industrial park centralized prime power, need long‑distance high‑capacity power delivery
• Off‑grid large infrastructure projects requiring high‑voltage power output

Note: This 10.5kV high‑voltage genset must cooperate with qualified high‑voltage power distribution equipment and professional installation team for safe commissioning.

• Warranty standard: 12 months or 1200 accumulated running hours, whichever comes first. Free vulnerable spare‑parts for manufacturing defects; damage caused by mis‑operation, wear‑and‑tear or harsh man‑made impact is excluded. Long‑term cost‑price genuine spare‑parts supply after warranty expiry.
• Payment terms: 30% T/T advance deposit; 70% balance against B/L copy, or 100% irrevocable L/C at sight.
• Production lead‑time: 20‑30 working days upon receipt of deposit or original L/C. High‑voltage customized units require extra testing period.
