AC800 Silent Parallel Diesel Generator Set 800kW 1000kVA with Silent Container-Type and Multi-Units Synchronize & Load-Sharing

AC800 silent parallel diesel generator adopts genuine CCEC KTA38‑G2A V‑12 turbo‑aftercooled heavy‑duty engine, specially engineered for mission‑critical backup power of data‑center IDC and telecom base‑station for Europe and Southeast‑Asia markets.

This silent container‑type genset supports multi‑generator synchronization & load‑sharing system, equipped with AMF automatic mains failure transfer function. When city grid fails, the unit can auto‑start, synchronize and take load rapidly, guarantee uninterrupted power for server room and communication facilities.

This model adopts Deepsea DSE8610 MKII parallel controller to realize stable multi‑units load‑sharing operation for large‑scale IDC redundant power architecture.

👉 View DSE8610 MKII parallel controller details:

For container‑type silent housing reference:

👉 Check our full range containerized silent diesel generator series:

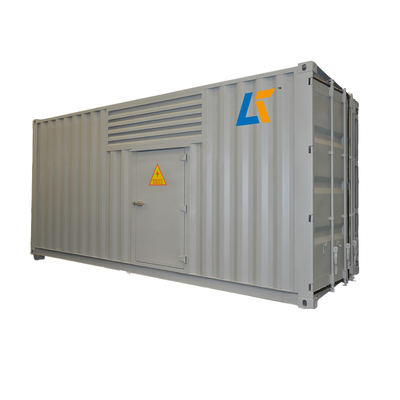

1. Low‑noise silent container enclosure for data‑center scenario:High‑efficiency multi‑stage silencer and acoustic insulation material, effectively control running noise, meet noise‑limit requirement for data‑center peripheral building environment. Container‑type housing realizes rain‑proof, dust‑proof for outdoor installation of IDC station.
2. Multi‑units synchronize & intelligent load‑sharing:Matched with DSE8610 MKII parallel control module, realize automatic synchronization, active/reactive load distribution for up to 32 gensets, build redundant N+1 power system for large‑scale IDC. Support remote monitoring, event log recording and fault alarm.
3. AMF automatic mains failure transfer function:Auto‑start when mains power outage, auto‑switch load; auto‑shutdown & reset after grid power recovers, no manual intervention required for 24/7 unattended data‑center running.

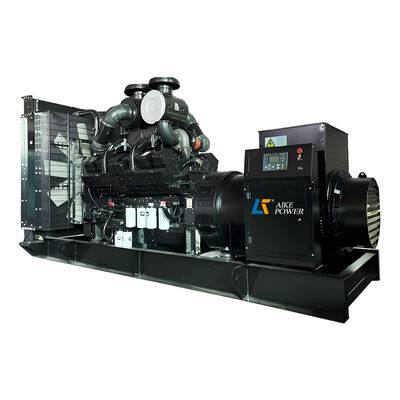

4. CCEC heavy‑duty power core for mission‑critical load:Proven KTA38‑G2A 12‑cylinder engine, stable transient response under sudden load change, adapt to strict continuous‑standby working condition of server room, global spare‑parts support for Europe and Southeast‑Asia projects.
5. Strict factory test for IDC‑grade reliability:Each unit passes full‑load test, parallel‑simulation test and noise detection before shipment, verify AMF start‑up sequence and parallel performance to satisfy high‑availability requirement of data‑center infrastructure.

• Enterprise‑level & large‑scale IDC data‑center emergency backup power, N+1 redundant power system construction
• Telecommunication base‑station and 5G core‑site uninterrupted backup power for Southeast‑Asia and European markets
• Cloud computing server room, internet infrastructure mission‑critical standby power
• Commercial park key‑equipment backup power requiring multi‑genset parallel operation

Note: For multi‑unit parallel deployment, professional electrical engineering team is required for on‑site commissioning and system debugging.

• Warranty standard: 12 months or 1200 accumulated running hours, whichever comes first. Free vulnerable spare‑parts for manufacturing‑caused defects; damage caused by mis‑operation, wear‑and‑tear or man‑made impact excluded. Long‑term cost‑price genuine spare‑parts supply available after warranty expiry.
• Payment terms: 30% T/T advance deposit; 70% balance against B/L copy, or 100% irrevocable L/C at sight.
• Production lead‑time: 22‑30 working days upon receipt of deposit or original L/C. Silent‑parallel customized unit needs extra simulation‑testing cycle.

Q1: What is the key advantage of AC800 silent parallel generator for IDC data‑center?
A: AC800 adopts DSE8610 MKII parallel controller to realize multi‑genset synchronize and intelligent load‑sharing, supporting N+1 redundant power architecture for data‑center. It integrates AMF auto mains‑failure transfer function and low‑noise silent container housing, to guarantee uninterrupted backup power for server‑room facilities.

Q2: How many generator units can DSE8610 MKII controller support for parallel‑operation?
A: DSE8610 MKII parallel synchronize controller can support up to 32 generator‑sets for synchronizing and load‑sharing, which meets the demand of large‑scale IDC redundant power station construction. Please refer to our controller product page for detailed technical introduction.

Q3: Can AC800 adapt to European and Southeast‑Asia data‑center outdoor installation environment?
A: Yes. Container‑type silent enclosure provides rain‑proof, dust‑proof and noise‑reduction performance. We can make adaptation according to local ambient temperature and put forward application for regional import certificates for target‑market projects.

Q4: Does this silent parallel genset support remote monitoring function for data‑center management?
A: Yes. DSE8610 MKII controller reserves multiple communication ports including Ethernet, RS485 and USB, supporting remote status monitoring, fault‑event recording and parameter configuration for IDC central management platform.

Q5: What are the optional items for AC800 data‑center backup generator?
A: We support ATS switch cabinet, multi‑unit parallel cabinet, SCADA remote monitoring system, special high/low‑temperature adaptation and other customized items for IDC and telecom‑base‑station projects.
