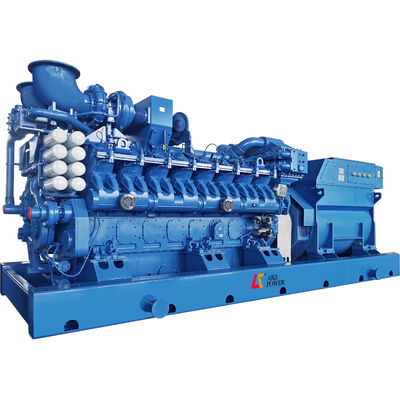

YC16VCG-2000N5HC Yuchai 2000kW 10.5kV High Reliability Natural Gas Genset for Industrial Power

The YC16VCG‑2000N5HC is an automatic‑operation gas genset independently developed by Yuchai. Drawing on abundant field‑proven market experience and global advanced generator technologies, this unit comes equipped with a mature integrated gas control system.

Validated through rigorous mechanical testing and optimized standardized combustion technology, the YC16VCG‑2000N5HC delivers high reliability, high‑efficiency low‑emission performance and reduced maintenance costs. It is well‑suited for diverse natural‑gas and biogas power‑generation projects for global industrial clients.

Built upon Yuchai’s proven design and manufacturing platform, this gas genset adopts self‑developed high‑temperature wear‑resistant materials and high‑strength core components, including cylinder block, cylinder head, camshaft, crankshaft and shared base frame. These upgrades greatly improve overall product reliability and long‑term durability for continuous‑run power‑plant applications.

Advanced core technologies are deployed for clean and stable gas combustion: lean‑burn strategy, high‑energy capacitor ignition module, Yuchai‑patented combustion chamber, high‑efficiency turbocharger and closed‑loop oxygen‑sensor air‑fuel‑ratio control. These features realize precise air‑gas ratio regulation, consistent performance and low exhaust emissions.

Yuchai‑patented rear gear‑housing with point‑line meshing gear design plus four‑valve technology effectively cuts mechanical noise, exhaust noise and exhaust temperature of the powertrain. It offers operator‑friendly operation and reduced environmental impact.

Patented cylinder liner, piston ring and valve‑seal technologies significantly reduce lube‑oil consumption. The lube‑oil service interval can extend to over 1,000 operating hours. Widely‑shared, easy‑to‑service spare‑part components further lower the whole‑life‑cycle maintenance expenditure of power‑generation facilities.

The unit is managed by an independent, mature genset control cabinet for stable system operation. Individual‑cylinder knock monitoring enables real‑time operating‑condition tracking. Crankcase and intake‑pipe explosion‑proof valves are fitted as standard to guarantee safe running.

The matched alternator features high power‑generation efficiency, low temperature rise, minor waveform distortion and excellent dynamic response. It supports stable parallel operation via AVR regulation. With outstanding reliability and durability, it can satisfy power‑supply requirements under various harsh site conditions.

All published technical data is obtained under the following laboratory test environment:

• Gas calorific value: 10 kWh/m³
• Methane volume content: ≥90%
• Gas temperature: 10~40°C
• Gas humidity: ＜60%
• Gas inlet pressure: 15‑30 kPa
• Air intake negative pressure: ＞‑3 kPa
• Exhaust back pressure: ＜5 kPa
• Absolute atmospheric pressure: 101.32 kPa
• Ambient temperature: 25°C
• Relative humidity: ≤30%
• Altitude: ≤1000 m

Notes:

1. Radiator assembly is supplied as an optional item, not included in standard scope.
2. Accompanying documents include operation manual, outline & installation drawing, technical‑parameter sheet, alternator specification, electrical‑cabinet specification, wiring schematic and warranty service manual.

Basic Functions
Power switching, manual start‑up / shutdown, emergency stop, breaker closing & opening control.

Display Functions
Phase voltage, line voltage, three‑phase current, frequency, phase sequence, active / reactive / apparent power, power factor, cumulative energy output, engine speed, lube‑oil pressure, coolant temperature, exhaust temperature, genset running hours, cumulative startup counts, battery voltage.

Full‑Set Protection Functions
Overspeed / underspeed protection; overvoltage / undervoltage protection; overcurrent & overpower protection; low oil‑pressure protection; high‑coolant‑temperature protection; high‑exhaust‑temperature protection; low‑battery‑voltage protection; charging‑failure alarm & shutdown.

Disclaimer: Product technical indexes are subject to continuous technical upgrading. Yuchai reserves the right to modify technical specifications without prior notice.
