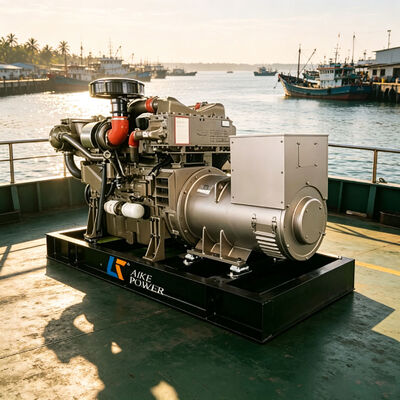

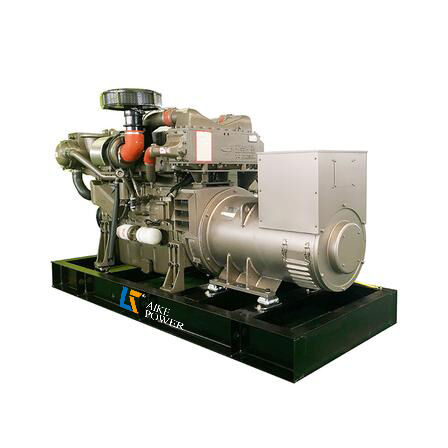

AY100M Yuchai 100kW Marine Diesel Generator Set

The Aike Power AY100M marine auxiliary generator is a dedicated ship power unit equipped with original Yuchai marine four-stroke diesel engine, rated prime power 100kW. It serves as stable standby & daily auxiliary power for fishing boats, coastal cargo ships, port working vessels and small yachts across Southeast Asia maritime regions.

All components adopt professional marine-grade anti-corrosion & three-proof treatment (moisture-proof, mildew-proof, salt-spray proof). The exclusive marine water cooling system adapts to high humidity, high salt tropical offshore environments, and supports CCS, ZY fishery vessel certification to meet global maritime inspection standards.

This unit is widely adopted by ship owners in Indonesia, Philippines, Vietnam, Thailand and Malaysia to solve unstable onboard power, frequent equipment corrosion and short service life problems of ordinary land-based generators.

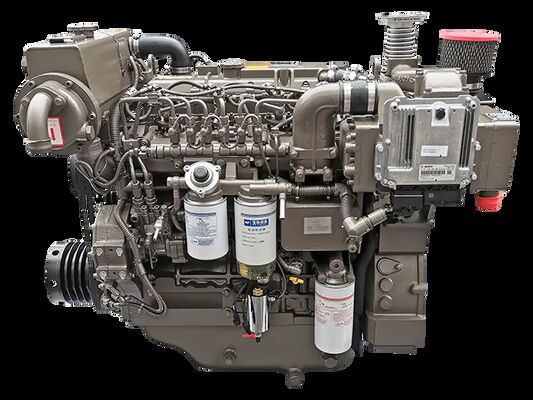

The AY100M is matched with Yuchai authentic marine six-cylinder in-line water-cooled diesel engine, model YC6B160Z-D20, fully compliant with marine power design standards:

• Engine Model: YC6B160Z-D20 (Marine Special Version)
• Structure: Vertical In-line 6 Cylinders, 4-Stroke, Turbocharged & Intercooled
• Bore × Stroke: 108 mm × 132 mm
• Total Displacement: 6.494 L
• Rated Speed: 1500 rpm
• Rated Continuous Engine Power: 125 kW
• Fuel Consumption Rate: 195 g/kW·h at full rated load
• Lubricating Oil Consumption: ≤0.5 g/kW·h
• Starting System: DC 24V electric start, marine heavy-duty starter motor
• Combustion Technology: Electronic unit pump, four-valve design, excellent load response
• Vibration Control: Reinforced grid-shaped engine block, low vibration operation during vessel rolling

1. Professional Dual Water Cooling System For Offshore

   Independent seawater heat exchanger + fresh water circulation loop, efficiently dissipate heat under high-temperature tropical sea conditions, avoid overheating during long-term navigation.

2. Full Anti-Salt Spray Three-Proof Treatment

   All metal structural parts adopt galvanizing & Dacromet coating; internal electrical components coated with special anti-moisture, anti-mildew, anti-salt lacquer, effectively prevent salt fog corrosion on the coast. Pass 48h continuous salt spray test per ISO 9227 standard.

3. Global Recognized Maritime Certification

   Support CCS ship inspection certificate and ZY fishery vessel certificate, fully meet port maritime inspection requirements of Philippines, Indonesia, Vietnam and other Southeast coastal countries. No customs clearance or vessel inspection obstacles.

4. Low Vibration & Stable Onboard Power

   Reinforced engine block plus marine dedicated shock absorption base, maintains stable voltage output even when ships roll 15°–22.5°, avoids damage to navigation, lighting and refrigeration equipment.

5. Easy Marine Maintenance Design

   Single cylinder head layout with side maintenance windows, spare parts universal with mainstream Yuchai marine engine stock across Southeast port cities, convenient local repair without long waiting for imports.

6. Low Fuel Consumption For Long Voyage

   195g/kW·h rated fuel consumption reduces vessel diesel operating costs for long-distance coastal fishing & transportation.

• Medium & small offshore fishing vessels (Philippines, Indonesia, Vietnam fishing fleets)
• Coastal cargo transport ships, barge vessels
• Port engineering working boats, tugboats
• Small passenger yachts, coastal sightseeing ships
• Aquaculture offshore platform standby power

• Silent marine canopy to reduce cabin noise
• Marine ATS automatic transfer control panel
• Remote monitoring system for wheelhouse centralized control
• Oversized marine daily fuel tank for long voyage
• Extra anti-corrosion coating for open deck installation
• ABS / BV international classification society certification upgrade
• 60Hz 440V alternator for Philippine & US standard vessels
