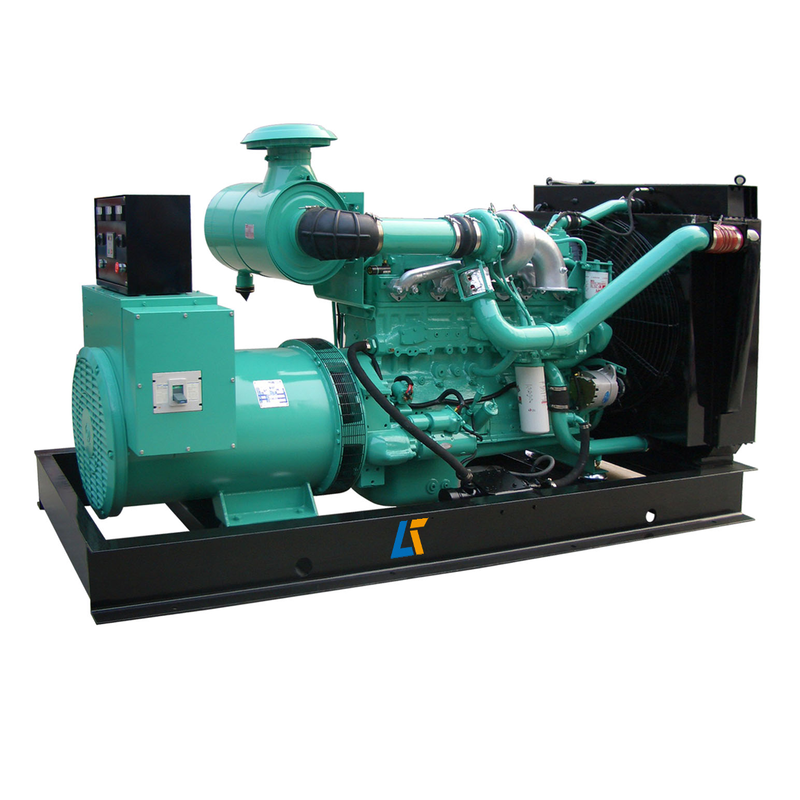

AC-450 CCEC NTAA855-G7A Diesel Generator Set | 450kVA 360kW Standby Power 50Hz / 60Hz Dual Frequency

Looking for reliable industrial standby power for commercial, construction, mining or hospital backup? The Aike Power AC-450 CCEC diesel generator delivers steady 450kVA / 360kW standby output, supporting both 50Hz and 60Hz global grid standards, powered by authentic CCEC NTAA855-G7A 6-cylinder electronic engine.

Built with Stamford/Leroy Somer/Mecc Alte brushless alternator and industry-standard Deepsea control panels, this genset works reliably at altitudes up to 1500m and ambient temperatures ≤40°C. We supply open frame, soundproof silent canopy, rainproof and mobile rental versions with full customizable options, fully tested before factory delivery with ISO 8528 & CE certification.

• Genuine CCEC Power Core: NTAA855-G7A 4-stroke inline 6-cylinder turbocharged engine, electronic governor, stable 407kW max standby engine power, low fuel consumption (98L/h at full standby load), oil consumption ≤0.24L/h for long service intervals
• Dual 50Hz / 60Hz Frequency Support: Flexible 1500RPM (50Hz) / 1800RPM (60Hz) speed matching global power grids, multiple voltage options (380/220V, 400/230V, 415/240V, 440/254V) for worldwide export
• Premium Brushless Alternator Options: Stamford S4L1D-F4 as standard, IP23 protection, H-class insulation, 93.2% high efficiency, voltage regulation ≤±1%, low THF <2% for sensitive medical & telecom loads
• 3 Tier Deepsea Control Systems Available: Standard DSE6020 AMF, optional DSE7320 remote monitoring, DSE8610 auto-parallel module for multi-generator load sharing (up to 32 units synchronisation)

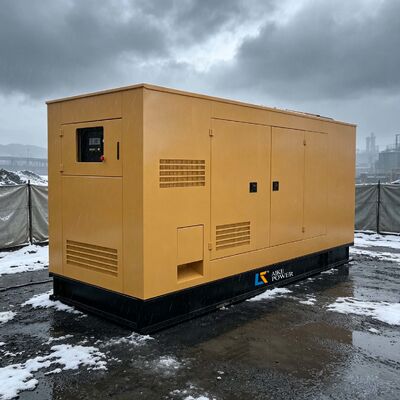

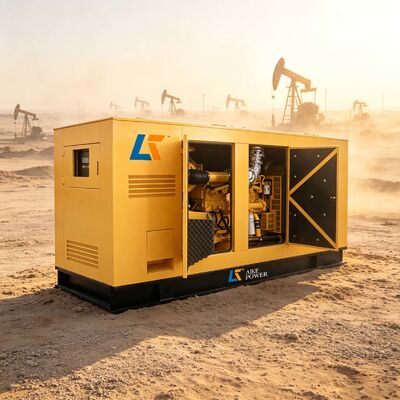

• 2 Complete Enclosure Solutions: Open frame for indoor fixed installation; heavy-duty soundproof canopy for outdoor silent operation, rainproof & mobile rental enclosures as add-ons
• Wide Environmental Adaptability: Operates stably at ≤1500m altitude, max ambient temp 40°C, radiator cooling with belt-driven safety guarded fans
• Full Customizable Auxiliary Options: Water jacket preheater, oil preheater, auto fuel filling system, ATS auto transfer switch, ABB circuit breaker, permanent magnet alternator, remote control panel
• Global Standard Certifications & Warranty: ISO 8528, CE, IEC, BS & NEMA certified; 15-month / 1 year post-install / 1000 running hours warranty (whichever comes first) with worldwide spare parts support

Aike Power AC-450 provides three professional Deep Sea Electronics controllers for different project demands, supporting auto mains failure, remote monitoring and multi-unit parallel operation:

• Single genset manual & auto start module
• Backlit LCD screen to monitor speed, frequency, voltage, running hours, warning & shutdown faults
• Full engine protection logic; programmable via front panel or DSE PC software
• Compatible with electronic & non-electronic CCEC engines

• Mains utility supply real-time monitoring function
• Built-in USB, RS232, RS485 communication ports for remote system expansion
• Enhanced event & performance logging, long-distance remote communication to reduce engine wear
• LED indicator + LCD dual fault alarm display

• Synchronization & load sharing system for up to 32 parallel gensets
• Auto start/stop based on power load demand or fault trigger
• 250 records event log for maintenance tracking
• Audible buzzer + LED + LCD triple alarm notification

Water Jacket Preheater, Fuel Water Separator, Engine Oil Preheater, External Battery Charger

Anti-Condensation Heater, Permanent Magnet Generator, Winding Temperature Sensor

Daily Built-in Fuel Tank, Large External Fuel Tank, Auto Fuel Filling System, Fuel Level Transmitter

Rainproof Canopy, Soundproof Rental Canopy, Mobile Trailer Mounted Type

Auto Remote Control Panel, AMF Auto Mains Failure Module, DSE Parallel Control Panel, ATS Automatic Transfer Switch, ABB Main Circuit Breaker

The AC-450 450kVA CCEC diesel generator fits all standby & temporary power projects worldwide:

• Commercial Buildings: Shopping malls, office towers, hotels, data center backup power
• Medical Industry: Hospitals, clinics, medical labs emergency power supply
• Construction & Rental: Construction sites, event rental power solutions
• Mining & Oilfield: Remote mine sites, oil rig off-grid standby power
• Telecom Infrastructure: Base stations, communication tower backup gensets
• Industrial Factories: Manufacturing plant critical load emergency power
• Residential Complex: Large villa community uninterrupted power backup
• Off-Grid Remote Areas: Villages, farmlands without stable grid supply

1. Genset Assembly: ISO 8528, CE Certification
2. CCEC Engine: ISO 3046, BS 5514, DIN 6271
3. Alternator Electrical Standard: BS EN 60034, IEC 34, BS5000, NEMA MG1-32, VDE 0530, CSA C22.2-100, AS1359

All AC-450 CCEC generators are fully factory tested before shipment with 3-way limited warranty (whichever condition expires first):

1. 15 months counted from the date of delivery to the first buyer
2. 12 months after on-site installation completion
3. 1000 accumulated running hours

Global after-sales service & genuine spare parts available via Aike Power factory and authorized local distributors across Europe, Southeast Asia, Middle East, Africa, Latin America & North America.

Send us your detailed requirements: target frequency (50Hz / 60Hz), enclosure type (open / silent / mobile), controller model, voltage standard and optional accessories.

Our professional power engineering team will provide tailored technical proposal, factory price list and delivery lead time within 24 working hours.

Free technical drawing & parameter sheet support

Bulk order discount for distributors & EPC contractors

OEM & ODM custom service available

Worldwide door-to-door delivery arrangement
