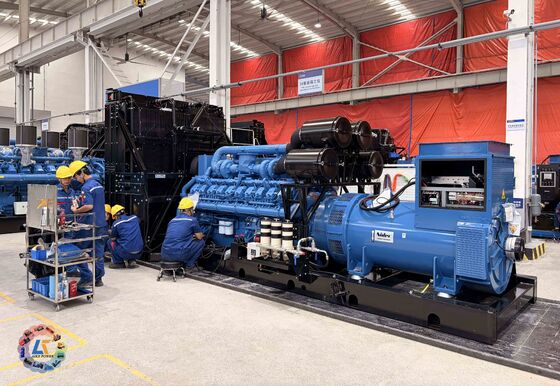

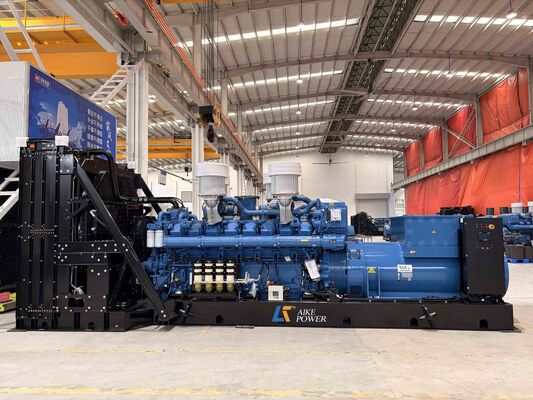

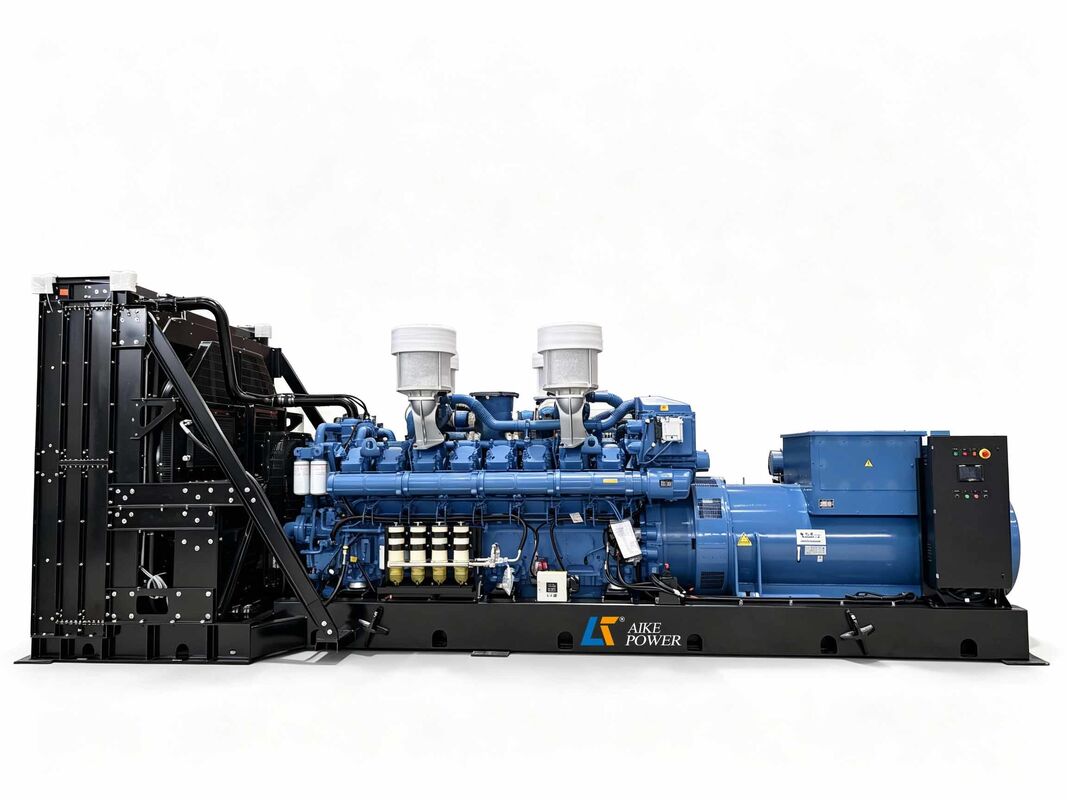

AY2700 2700kW Single Large Capacity Yuchai V16 Diesel Generator

The AY2700 ultra-wide single-unit heavy-duty diesel generator is Aike Power’s exclusive high-power solution designed to address the key difficulty of “multiple small gensets occupy huge plant space & high daily maintenance labor cost” for global EPC contractors, mining groups and self-built industrial power stations.

Equipped with original Guangxi Yuchai YC16VC4500-D30 V-type 16-cylinder large-displacement diesel engine, the unit delivers stable 2700kW continuous prime power and 3000kW emergency standby power at fixed 1500r/min. One AY2700 can replace 3 sets of 900kW medium generators, greatly shrink power room construction area, cut parallel control cabinet investment and reduce daily inspection workload by 60%.

The ultra-wide integrated heavy skid frame is customized for centralized indoor energy center fixed installation. We provide full flexible matching of Deepsea & ComAp multi-unit parallel control systems, and support silent container, explosion-proof cabin, mobile skid-mounted trailer customized transformation for desert oilfields, open-pit mining clusters and large chemical industrial parks in power-short Southeast Asia, Middle East and Africa.

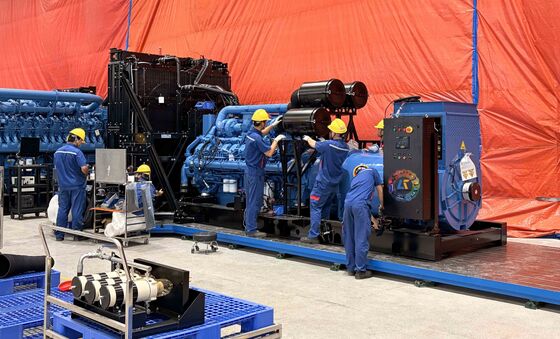

Every AY2700 undergoes 72-hour continuous full-load aging test before delivery, and provides complete tender technical documents, CE/ISO international certification and factory test reports to meet the strict bidding standards of overseas large power engineering projects.

• One AY2700 2700kW replaces three 900kW medium gensets; power station civil construction area reduced by over 50%, save foundation, ventilation, fire protection engineering investment
• Only one set of control system, cooling system and daily maintenance pipeline is needed, cut parallel cabinet, ATS switch auxiliary equipment procurement cost
• Daily inspection, filter replacement, regular overhaul workload reduced significantly, fewer maintenance engineers required for remote off-grid projects

105.56L total displacement V-type 16-cylinder layout, turbocharged intercooled air intake system, dual optional HPCR high-pressure common rail / EUP electronic unit pump fuel supply system:

• Instantly bear 100% sudden load impact without voltage/frequency sharp drop, perfectly adapt drilling rig, mineral crusher and other equipment with frequent heavy startup
• Engine self prime power reaches 3010kW, sufficient power reserve, no power attenuation under long-term 100% full-load continuous operation in 40℃ standard environment
• SAE00# flywheel housing + SAE21” international general flywheel interface, compatible with all mainstream high-power brushless alternators without structural modification

Exclusive widened thickened steel base frame independently developed for AY2700 large unit, with multi-layer high-performance vibration isolators distributed evenly across the bottom:

• Eliminate long-hour heavy operation resonance damage to alternator winding and control circuit components
• Integrated fuel pipeline, exhaust support and cable channel reserved, simplify on-site installation wiring work for EPC teams
• Unified hoisting reserved position, convenient container loading and sea transportation for overseas large engineering projects

Two mainstream international control brands are freely configurable according to tender technical requirements, with complete remote cloud monitoring function for unattended mine and oilfield power stations:

1. Deepsea Series: DSE6020 single unit AMF, DSE8610 synchronous parallel controller, support up to 32 units automatic load sharing
2. ComAp Series: InteliSys large power station centralized monitoring cabinet, MODBUS RS485 communication, mobile APP real-time data viewing, fault remote alarm

• Structure: Single bearing three-phase four-wire Y connection synchronous alternator
• Insulation Grade: H Class, Protection Grade IP23
• Steady-State Voltage Deviation: ≤±1%
• Optional Alternator Brands: Aike AK High Power Series, Stamford, Marathon, Engga, MeccAlte

1. Deepsea DSE8610 multi-unit parallel synchronization cabinet
2. ComAp InteliSys unmanned centralized monitoring system
3. ABB high-current automatic ATS transfer switch
4. Remote cloud monitoring module with mobile data terminal

1. 50℃ ultra-large flow enhanced cooling radiator for Middle East desert high temperature
2. Multi-stage heavy dust air filter for Africa open-pit mining
3. Salt spray anti-corrosion coating for coastal chemical industrial parks
4. Engine water jacket & fuel preheater for low-temperature plateau areas

1. Full sound insulation silent container power room (noise ≤75dB at 7m)
2. Explosion-proof control cabinet & sealed cabin for oil & chemical plant
3. Heavy-duty skid-mounted mobile trailer for scattered remote wellhead power supply

Single AY2700 large capacity unit is the optimal solution for industrial park, mining group self-owned power plant EPC bidding. Replace multiple medium-power generators to simplify power station design, reduce civil engineering investment, widely adopted by power project contractors in Indonesia, Vietnam and Saudi Arabia.

Ultra-wide heavy-duty frame with strong dust resistance matching, stable continuous power supply for crushing, screening and drainage equipment all year round. Single unit centralized power supply cuts the trouble of scattered small gensets maintenance in remote African mining areas.

Sufficient power reserve copes with frequent startup load impact of drilling and extraction equipment, optional explosion-proof cabin and sand-proof coating adapt to harsh desert oilfield working conditions in Middle East.

24/7 non-stop prime power support for high-energy-consuming production lines, low harmonic alternator configuration protects precision chemical control instruments from voltage fluctuation damage.

3000kW standby peak power meets the uninterrupted power demand of large data center server clusters, hospital medical equipment and airport terminal key facilities during grid blackout.

If you are an EPC power contractor, mining group or industrial park investor looking for single large capacity 2700kW power generation equipment, our professional power engineering team provides one-stop supporting services:

1. Free power station load calculation & single/multi-unit layout design drawing
2. Customized controller, high-temperature/dust-proof configuration tender technical parameter compilation
3. Complete set of export certification, factory test report, tender bid document supporting materials
4. Global door-to-door sea transportation scheme and container loading design
5. Overseas on-site installation guidance and engineer dispatch service

All AY2700 ultra-wide heavy-duty diesel generators comply with global power equipment industry mandatory standards:

• Genset overall standard: ISO 8528:2018, CE power equipment certification
• Yuchai V16 diesel engine standard: ISO 3046, GB/T 2820
• High power alternator standard: BS EN 60034, NEMA MG1
• All production processes are recorded by digital workshop, and each unit has an independent production traceability number to support overseas project third-party inspection before shipment.
