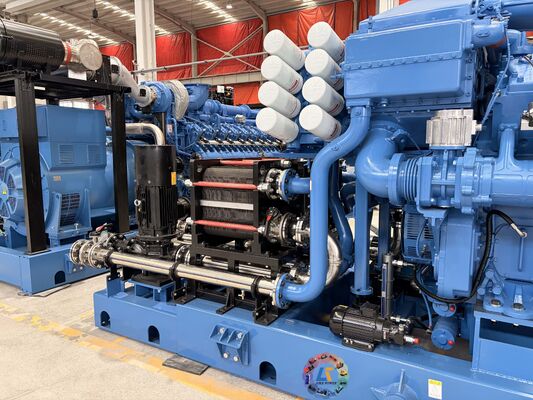

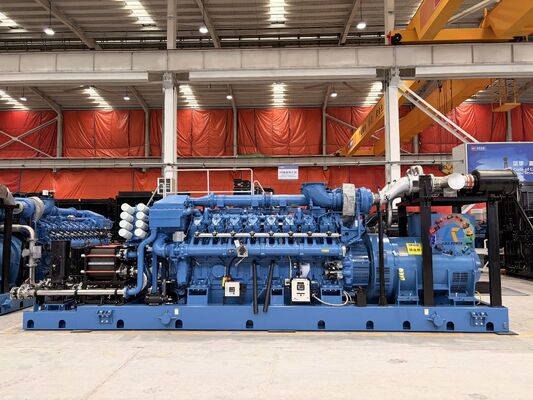

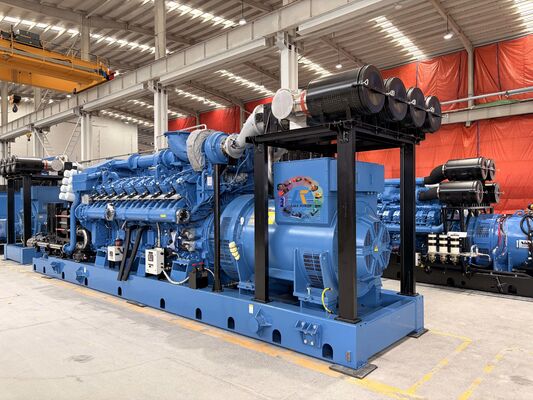

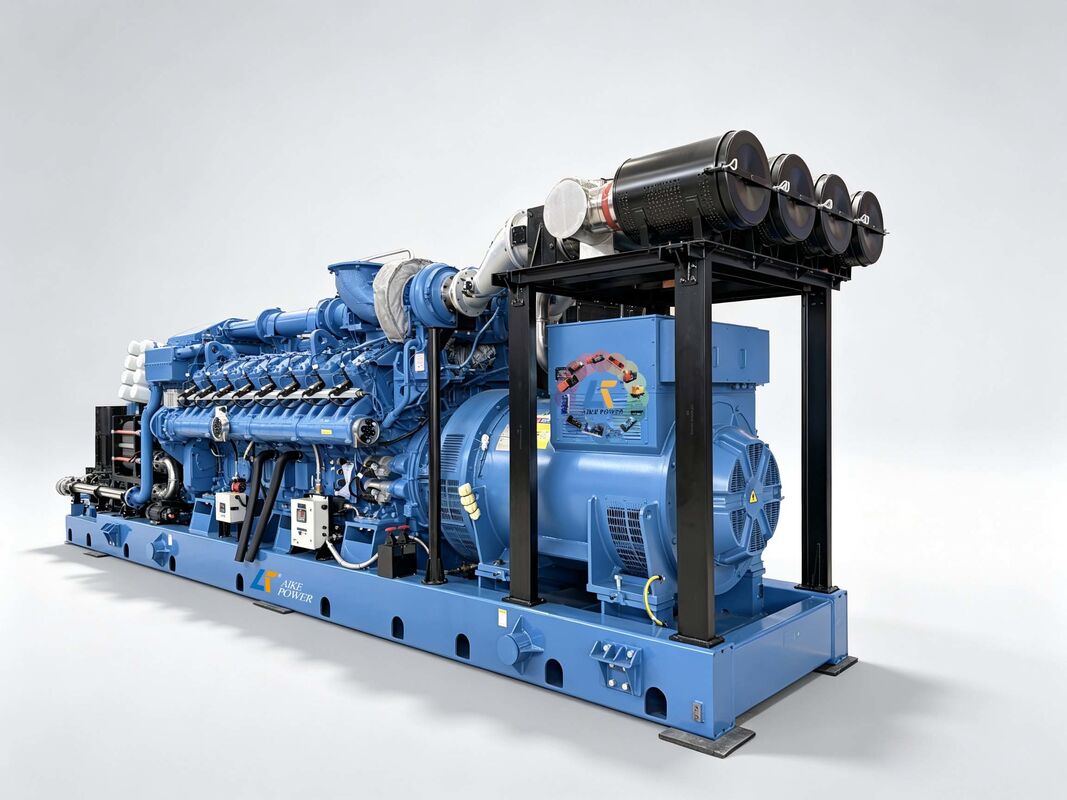

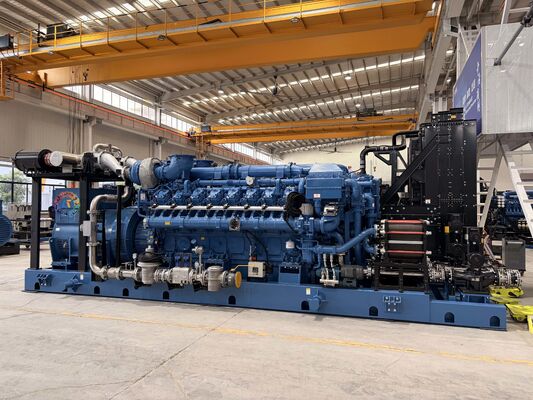

AY1500APG Yuchai 1500kW 10.5kV Associated Petroleum Gas Generator Set

The AY1500APG is a heavy-duty high-voltage Associated Petroleum Gas generator independently developed by Aike Power, equipped with original Yuchai dedicated gas engine (YC16VCG-1500AP5LC/1500AP5HC), rated continuous power 1500kW, standard output voltage 400V/10500V (10.5kV), 50Hz 1500RPM constant speed design.

This medium-high voltage gas genset avoids step-up transformer investment for large power stations, biogas projects, mine associated gas power plants and industrial combined heat and power (CHP) stations. It supports multi-gas fuel compatibility: Associated Petroleum Gas, biogas, landfill gas, coal mine methane, LPG, industrial waste gas.

Standard overall dimension 8600*2100*2640mm, gross weight 28000kg, integrated heavy-duty steel base frame with built-in vibration isolators. We support customizable Deepsea / ComAp intelligent AMF & parallel control systems, open frame standard structure, optional silent container and outdoor rainproof enclosure for tropical Southeast Asia, Africa and Middle East gas energy projects.

All AY1500APG units pass 72-hour full-load factory aging test, comply with ISO 8528, CE international power equipment standards, with complete export certification documents for global power plant tender projects.

• Mature lean burn combustion technology independently developed by Yuchai, closed-loop air-fuel ratio control, low fuel consumption & ultra-low emission
• Optimized high-temperature resistant cylinder components, stable continuous 24/7 full-load operation for gas power stations
• Wide gas pressure adaptability, suitable for low-concentration biogas and mine associated gas projects across ASEAN & Africa
• Low maintenance cycle, spare parts globally available, reduce long-term operation cost for large energy projects

Direct 10500V high voltage power output, no need to configure extra step-up transformer; simplify power station design, cut civil engineering and equipment investment, reduce transmission loss for long-distance power supply in mining and industrial parks.

Free matching mainstream global gas generator controllers to meet different power station intelligent management demands:

1. Deepsea series: DSE6020 single unit AMF, DSE8610 multi-unit synchronous parallel controller
2. ComAp series: InteliLite AMF, InteliSys large power station centralized monitoring panel
   Support MODBUS RS485 remote cloud monitoring, automatic load sharing for up to 32 parallel AY1500APG units.

Overall size 8600*2100*2640mm, total weight 28000kg, thickened integrated skid base with multi-point shock absorption structure, effectively reduce vibration during long-hour continuous operation. Standard 40℃ matched cooling system, upgradeable 50℃ high-temperature radiator for tropical hot climate regions.

Adapt to multiple low-calorific industrial gas fuels, perfectly match renewable energy biogas power plants, mine gas recovery projects, factory waste gas power generation and municipal comprehensive energy stations, meet global low-carbon energy policy demands.

• Original Yuchai dedicated gas combustion engine, lean burn technology
• Closed-loop oxygen sensor air-fuel ratio control, stable power output under variable gas concentration
• Complete engine safety protection: over speed, high exhaust temp, low gas pressure, fault auto shutdown
• Long service life, low oil consumption, global Yuchai spare parts support

• Medium-high voltage brushless synchronous alternator, H class insulation, IP23 protection
• Steady-state voltage deviation ≤±1%, low harmonic distortion, adapt to sensitive power station grid equipment
• Anti-moisture winding coating, suitable for humid coastal and tropical gas projects

1. Original Yuchai dedicated gas engine
2. 10.5kV high voltage brushless alternator
3. Integrated heavy steel skid base + built-in vibration isolators
4. 40℃ matched water cooling radiator, safety fan guard
5. Standard Deepsea DSE6020 AMF intelligent control panel
6. Dry gas filter, high-efficiency exhaust silencer, flexible expansion joint
7. Starting battery pack, connecting cables, operation manual & factory test report

• Deepsea DSE7320 remote monitoring, DSE8610 multi-unit parallel synchronization
• ComAp InteliLite / InteliSys centralized power station control cabinet
• ATS auto transfer switch, ABB high voltage circuit breaker

• 50℃ ultra-high temperature cooling system for Middle East / Southeast Asia
• Full silent container enclosure, noise reduction for urban energy stations
• Anti-corrosion salt spray coating for coastal biogas plants
• Large external gas storage tank, automatic gas pressure regulating valve

• Engine water jacket preheater for low-temperature regions
• Gas pressure stabilizing module for low-concentration mine gas
• Remote cloud monitoring system with mobile APP real-time data

1500kW high voltage gas genset as core unit for 1–200MW turnkey gas power plants, multi-unit parallel operation to stabilize grid power supply in power-short countries (Vietnam, Indonesia, Nigeria, Saudi Arabia).

Perfect match for farm biogas power plants, municipal landfill gas recovery stations, livestock breeding waste gas power generation, realize circular economy low-carbon power supply.

Stable operation with low-concentration coal mine methane, oil field associated gas, solve off-grid mining area power shortage, reduce mine gas safety risks while generating electricity.

Factory waste gas power generation for chemical, paper, food processing enterprises, simultaneous supply of electricity and heat to reduce factory energy purchase cost.

10.5kV high voltage direct output reduces power transmission loss, suitable for urban integrated Associated Petroleum Gas energy stations, commercial park distributed power supply.

A1: This unit directly outputs 10500V medium-high voltage, no extra step-up transformer needed. It cuts power station civil engineering & equipment investment, lowers long-distance power transmission loss, more economical for large power plant and mining long-distance power supply projects.

A2: Yes. Equipped with Yuchai lean burn gas engine, support Associated Petroleum Gas, biogas, landfill gas, coal mine associated gas, LPG and industrial waste gas. We can customize gas pressure stabilizing system for low-concentration gas fuel.

A3: Fully customizable. We supply Deepsea single/parallel controllers and ComAp intelligent monitoring panels freely matched according to power station scale, support multi-unit synchronous load sharing for large gas power plants.

A4: Standard radiator adapts ≤40℃ environment; we can upgrade enhanced large cooling system to support stable full-load operation under 50℃ extreme high temperature.

A5: Yes, optional DSE8610 or ComAp parallel control system can realize synchronous linkage of up to 32 units, automatic load distribution, remote centralized monitoring for large-scale gas power plant tender projects.

A6: Unified global warranty standard: whichever comes first of 15 months after delivery, 12 months after on-site installation, or 1000 accumulated running hours. Free original Yuchai spare parts replacement for manufacturing defects, lifelong remote technical guidance for overseas power station projects.

If you need 1500kW 10.5kV Yuchai Associated Petroleum Gas generator for gas power plant, biogas project or mining associated gas recovery station, contact Aike Power professional energy engineering team now.

We provide free power station load calculation, multi-unit parallel scheme design, customized controller matching drawing and competitive factory-direct quotation within 24 hours, complete tender technical parameter documents for global power engineering bidders.

All AY1500APG gas generators pass strict factory full-load aging test, comply with international standards:

• Genset standard: ISO 8528, CE power equipment certification
• Gas engine standard: ISO 3046
• High voltage alternator standard: IEC 60034, NEMA MG1
  Complete factory test report, export CO, CIQ documents provided for global customs clearance and project tender submission.
