120 kW 150 kVA Yuchai Diesel Generator Set AY165 | Aike Power Factory

• Prime Power: 120kW (150kVA) | Standby Power: 132kW (165kVA)
• Engine: Guangxi Yuchai YC6B205-D20 6-cylinder turbocharged
• Alternator: AIKE AK-120 brushless alternator, THD＜2%
• Standard Controller: Deepsea DSE6020 AMF Panel
• Frequency/Voltage: 50Hz, 400/230V 3Phase 4Wire
• Working Temp: -40℃~55℃ | Max Standard Altitude: 1500m, custom up to 5000m
• Two versions: Open Frame / Soundproof Canopy

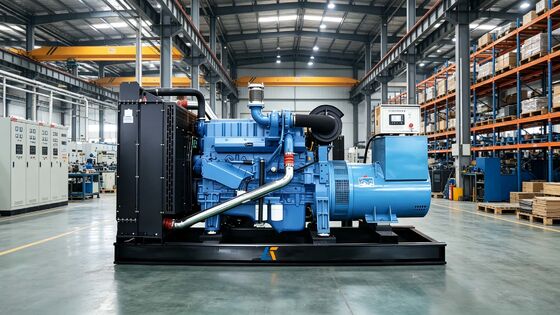

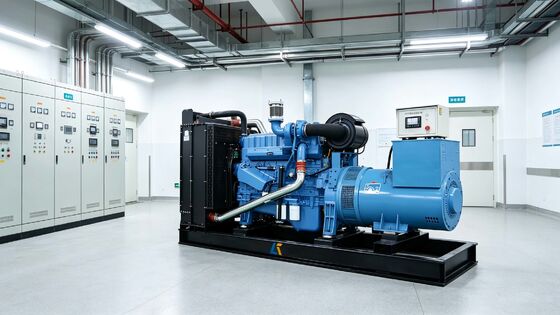

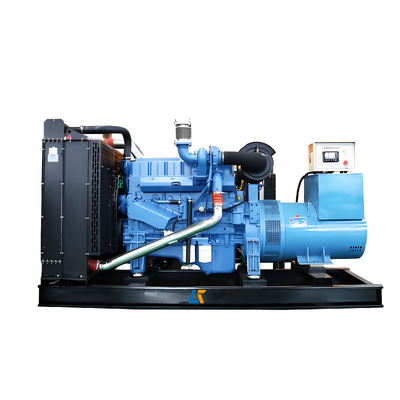

The AY165 120kW diesel generator set is a heavy-duty industrial standby power unit developed by Aike Power, matched with original Yuchai YC6B205-D20 turbocharged intercooled engine and self-excited brushless alternator with pure sine wave output.

Equipped with Deepsea intelligent control system, it supports auto start, AMF mains transfer, multi-unit parallel (max 32 sets) and remote communication monitoring. Two structural options (open frame / soundproof canopy) are available to cover construction, mining, hospital, commercial and off-grid plateau power supply.

All units pass full-load factory testing, compliant with ISO 8528, IEC and CE standards, featuring stable operation, low fuel consumption and strong environmental adaptability.

This brushless H-class insulation alternator adopts optimized winding design, with THF＜2% and steady-state voltage regulation ≤±1%. It delivers smooth pure sine wave current without waveform distortion, capable of driving various nonlinear loads including PLC, medical equipment, frequency converters and precision instruments. IP23 protection grade prevents dust and splashing water damage for long-term stable power supply.

Data support from technical sheet: Alternator efficiency up to 91.7%, TIF＜50.

Three optional Deepsea controllers meet different power station demands:

1. Standard DSE6020: Single unit auto start & AMF protection, backlit LCD real-time monitoring of speed, voltage, frequency and fault alarms;
2. Optional DSE7320: Mains monitoring, USB/RS485/RS232 remote communication, expandable input/output ports;
3. Optional DSE8610 Synchronizing Panel: Realize load sharing & parallel operation of up to 32 generator sets, record 250 running event logs for maintenance traceability.

All panels support PC software programming and full engine protection against over-speed, high temperature, low oil pressure and overload shutdown.

The unit runs reliably under -40℃ ~ 55℃ ambient temperature with reinforced cold start system, suitable for frigid zones, tropical high-humidity and sandstorm areas. Standard model works stably below 1500m altitude; customized plateau version supports 5000m high-altitude operation with low power derating.

Optional auxiliary parts: water jacket preheater, water-oil separator for low-temperature harsh areas.

Fitted with high-performance shock isolators and rigid integrated base frame, compact integrated structure effectively reduces mechanical vibration and running noise. Optimized engine combustion system cuts fuel consumption significantly:

• 100% load: 34.9L/Hr
• 75% load: 25.5L/Hr
• 50% load: 17.2L/Hr

Matched ripple flex exhaust pipe and industrial muffler further suppress exhaust noise, realizing eco-friendly low-emission operation.

Standardized modular design achieves high versatility of spare parts, simplifying accessory matching and daily overhaul. Matched with mature Yuchai industrial engine with extended overhaul intervals; electronic governor precisely controls fuel injection to reduce long-term operating costs. Universal dry-type air filter, fuel filter and oil filter are easy to replace with global spare parts supply support.

Equipped with main line circuit breaker to prevent overload and short-circuit damage. The control system integrates multi-shutdown protection functions: low oil pressure, high coolant temperature, over-speed, under/over voltage, frequency deviation. The whole set is equipped with safety guards for belt fan, dual 12V starting batteries and anti-backfire exhaust structure to avoid unexpected equipment failure.

This explosion diagram clearly displays all independent components of AY165 genset without adding or deleting any original details, including radiator, Yuchai engine, turbocharger, air filter, coupling, brushless alternator, Deepsea control panel, battery pack, rigid base frame, vibration isolators, industrial muffler and circuit breaker.

The structural drawing helps overseas engineers and maintenance staff quickly identify parts for repair and spare parts procurement, reducing after-sales maintenance difficulty.

4-cycle inline 6-cylinder, turbocharged air-to-air cooling, electronic governor, displacement 5.9L, total oil capacity 17L, coolant capacity 10L, max standby engine power 152kW.

Single bearing, IP23, H/H insulation class, self-excited brushless, efficiency 91.7%, THF＜2%, steady voltage regulation ≤±1%.

1. DSE6020 Standard: Single unit AMF, basic monitoring & protection
2. DSE7320 Optional: Mains detection, remote communication USB/RS485
3. DSE8610 Optional: Multi-unit parallel, load sharing, 250 event records

Belt driven fan with safety guard, 24V charging alternator, radiator, dry air/fuel/oil filter, main circuit breaker, two 12V batteries, ripple flex exhaust pipe, industrial muffler, vibration isolators, rigid skid base.

1. Engine Accessories: Water jacket preheater, water separator, oil preheater, external battery charger
2. Alternator Accessories: Anti-condensation heater, PMG permanent magnet generator, winding temperature sensor
3. Fuel & Enclosure: Daily fuel tank, auto fuel filling system, rainproof canopy, silent rental canopy, mobile trailer chassis
4. Electrical System: ATS auto transfer switch, ABB circuit breaker, remote wireless control panel

1. Construction Site Temporary Power Supply
2. Mining & 5000m Plateau Industrial Power Station
3. Hospital & Data Center Critical Backup Power
4. Shopping Mall, Hotel & Commercial Building Standby Unit
5. Remote Village, Off-Grid Agricultural Projects
6. Factory Production Line Emergency Power Backup

All AY165 generator sets pass global mainstream industry certification, meeting international bidding project requirements:

• Genset Standard: ISO 8528, CE
• Engine Standard: ISO 3046, BS 5514, DIN 6271
• Alternator Standard: BS EN 60034, IEC 34, NEMA MG1-32, VDE 0530, AS1359

As a professional diesel generator manufacturer with Yuchai official authorization, we have complete production lines and independent load test workshop. Every AY165 unit undergoes full-load aging test, waveform detection, high-low temperature simulation inspection before delivery.

Factory support: Bulk order customized voltage (380/220V, 415/240V, 440/254V), OEM brand logo, container batch delivery.

Warranty policy (whichever comes first):

1. 15 months from factory delivery date;
2. 12 months after on-site installation;
3. 1000 accumulated running hours.

Global service system: Local distributors provide spare parts supply, remote controller debugging guidance, on-site technical training for generator operation and maintenance.

Fill in simple contact information to download full documents for project tender and technical evaluation:

1. AY165 Complete Technical Data PDF
2. Full Range Yuchai Generator Product Catalog
3. Generator Installation & Operation Manual
4. High-Resolution Explosion Diagram Drawing
