AIKE POWER SALY1100PQ Industrial Diesel Generator Set (1100kW / 1375kVA)

The AIKE POWER SALY1100PQ heavy-duty diesel generating set is engineered as a world-class high-capacity energy solution for grid synchronization, heavy industries, remote mining fields, and data centers. Engineered for high-frequency 60Hz market environments at 1800RPM, this 3-phase heavy-duty system provides a robust 1100kW (1375kVA) Prime Power (PRP) and up to 1200kW (1500KVA) Emergency Standby Power (ESP).

As a specialized subsidiary brand of Guangdong San'ao New Energy Technology Co., Ltd., AIKE POWER integrates the strength of the Yuchai YC12VTD1860-D32 electronic common rail engine with the premium efficiency of the Firstall QYI-404G brushless alternator. Managed by the industry-renowned ComAp InteliGen 200 controller, the SALY1100PQ is natively built for complex multi-unit paralleling and seamless grid synchronization up to 32 units.

• Advanced Yuchai Electronic Common Rail Platform: Powered by the massive 12-cylinder, V-type Yuchai YC12VTD1860-D32 engine (39.2L displacement). Features a high-pressure common rail fuel supply system, four-valve technology, and a water-air intercooled turbocharger, ensuring precise fuel atomization, fast transient load acceptance, and compliance with strict China III / Tier 3 emission potential.
• High-Efficiency Firstall Alternator: Equipped with the premium Firstall QYI-404G three-phase brushless synchronous alternator. Featuring H-class insulation, 2/3 pitch winding to suppress harmonics, and an advanced AVR module (MX341B/MX321), it delivers up to 95.2% peak efficiency under full load alongside a massive 5400A short-circuit current capacity.
• ComAp InteliGen 200 Smart Paralleling: Integrated with the ComAp IG-200 synchronization controller. It provides robust 3-phase AMF functions and excels in Load Sharing, VAr Sharing via CAN, and alternative configurations for complex island or grid-parallel enterprise applications.
• Superior Thermal & Mechanical Build: Utilizes a highly efficient 40/50°C water tank radiator paired with heavy-duty anti-vibration rubber isolators on a unified steel base frame. Backed by the rigid engineering standards of San'ao Power, ensuring a 10+ year service lifespan for your critical assets.

Depending on your local structural architecture, environmental sound limits, or outdoor weather restrictions, AIKE POWER offers two custom-built structural types:

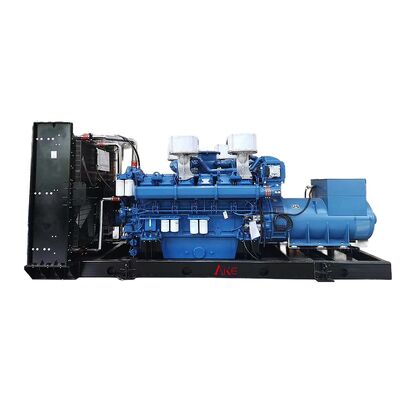

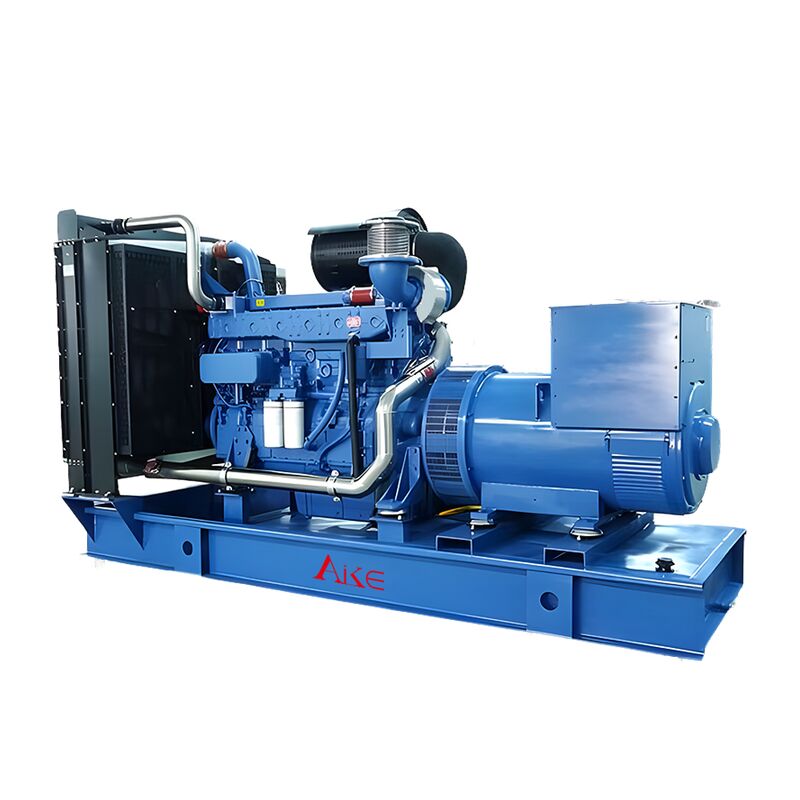

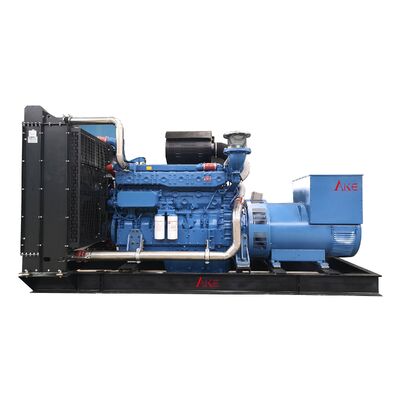

• Open Frame Genset Type: Built on a unified skid base.
  • Dimensions (L * W * H): 4,355 mm * 2,020 mm * 2,400 mm
  • Gross Dry Weight: 9,300 kg
• Containerized Soundproof Canopy Type: Integrated inside heavy-duty ISO 20ft, 30ft, or 40ft HQ Containers. Offers premium weatherproof protection and limits acoustic dampening down to 80-85 dB, making it the ideal plug-and-play solution for rugged outdoor rental or standby fields.

Engineered with advanced combustion verification technology, the Yuchai platform provides high power density with a remarkably wide economic fuel consumption range:

• At 100% Standby Power Load: 341.9 L / Hour
• At 100% Prime Power Load: 307.7 L / Hour
• At 75% Prime Power Load: 240.4 L / Hour
• At 50% Prime Power Load: 170.1 L / Hour

Every AIKE POWER generating set is brand new and subjected to rigorous full-load factory testing before deployment. Our systems fully comply with international references, including ISO 9001, CE, GB 755 (IEC 60034-1), and GB/T 2820 (ISO 8528).
