Diesel Generator Set 500kW 625kVA Industrial Power Solution Featuring KTAA19 G5 Engine with Various Voltage Settings

Diesel Generator Set 500kW 625kVA Industrial Power Solution Featuring KTAA19 G5 Engine with Various Voltage Settings

Brand Name:	AIKE POWER
Model Number:	AC625
MOQ:	1
Price:	USD
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cummins Engine Model:

KTAA19-G5

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

6 Cylinders In Line

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Alternator Model:

HCI544C

Name:

Cummins Diesel Generator Set

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

500kW diesel generator set

Cummins KTAA19 G5 engine generator

industrial power solution 625kVA

Product Description

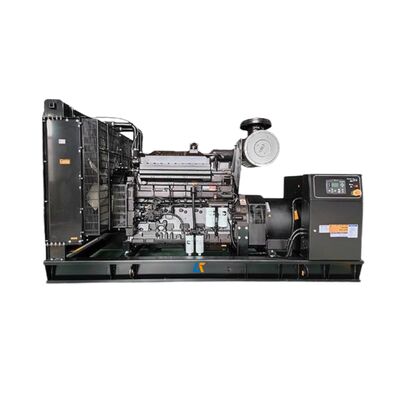

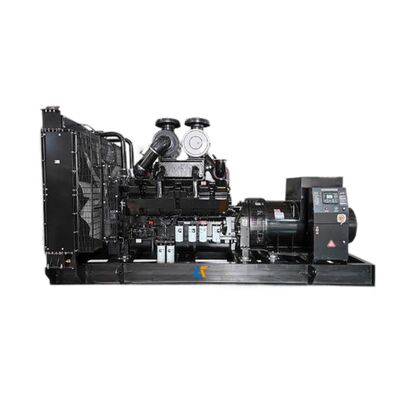

500kW 625kVA Diesel Generator Set

Industrial backup power solution featuring robust KTAA19-G5 engine with multiple voltage configurations for global applications.

Product Overview

This 500kW 625kVA diesel generator set provides reliable industrial power with a durable KTAA19-G5 engine. Available in multiple configurations including open type, weatherproof, soundproof, or trailer-mounted designs.

Voltage Options

50Hz/1500RPM: 380/220V, 400/230V, 415/240V

60Hz/1800RPM: 220/127V, 380/220V, 440/254V

Optional Features

Automatic Transfer Switch (ATS)

Premium controller brands: Deepsea UK, ComAp Czech, DEIF Denmark, Smartgen China

Standard Configuration

KTAA19-G5 engine

40℃ environment-rated water tank radiator with belt-driven cooling fans and safety shield

24V charging generator

Single bearing generator with IP23 protection and H insulation class

Shock absorber system

Complete filtration system (dry air, fuel, and oil filters)

Power output circuit breaker

Standard control panel

12V battery with connection cables and charger

Complete exhaust system (pipe, bellows, flange, muffler)

8-hour base fuel tank

Full documentation and manuals

Technical Specifications

Generator Set

Genset Model	AC625
Rating Power (KW/KVA)	450/562.5
Standby Power (KW/KVA)	500/625
Rating Ammeter (A)	812

Diesel Engine

Engine Model	KTAA19-G5
Prime Power (KW/KVA)	470/639
Standby Power (KW/KVA)	555/754
Cylinder Configuration	6 cylinders in line
Bore * Stroke (mm)	159 * 159
Displacement (l)	19
Compression Ratio	13.9:1
Governor Type	Electronic governor
Rated RPM	1500

Exhaust System

Exhaust Gas Flow (m³/min)	103.2
Max. Exhaust Gas Temperature (℃)	450
Max. Exhaust Back Pressure (KPA)	10

Air Intake System

Aspiration Type	Turbo & Air-Air cooled
Max. Intake Depression (mbar)	6
Combustion Air Volume (m³/min)	40.3

Fuel System

Rating Fuel Consumption (l/h)	117
75% Full Fuel Consumption (l/h)	119

Lubrication System

Total Oil Capacity (l)	50
Max Permissible Oil Temp (℃)	121
Oil Pressure at Rated RPM (KPA)	241-345

Cooling System

Total Coolant Capacity (l)	91
Max. Temperature of Coolant (℃)	100
Fan Cooling Air Flow (m³/min)	735

Alternator

Alternator Model	HCI544C
Rating Voltage (V)	400/230
Rating Capacity (KW/KVA)	480/600
Efficiency (%)	93.8%
Power Factor	0.8
Exciting Type	Brushless self-exciter, AVR
Voltage Regulation	±0.5%
No. of Phase	3 phase 4 wire
Enclosure Class	IP23
Class of Insulation	H

Battery

Rating Capacity (AH)

2 * 200AH 12V

Dimensions & Weight

Generator Set Dimensions (LWH)	3750 * 1500 * 1900 mm
Generator Set Net Weight (kg)	5000

Frequently Asked Questions

Do you offer OEM service?

Yes

What is your payment term?

30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

What is your lead time?

About 15-25 days after receiving advance deposit or original L/C.

What certificates do you have?

We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

What warranty do you provide?

One year or 1200 hours' running (whichever occurs first). During warranty period, we supply free replacement for easily damaged parts (excluding incorrect operation). After expiration, we provide cost spare parts for maintenance.
