Diesel Generator Set 750kva 600kw Silent Diesel Generator Set with Diesel Engine 50HZ 1500RPM Adjustable Voltage

Diesel Generator Set 750kva 600kw Silent Diesel Generator Set with Diesel Engine 50HZ 1500RPM Adjustable Voltage

Brand Name:	AIKE POWER
Model Number:	AC825
MOQ:	1
Price:	USD
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Cummins Engine Model:

KTA38-G2

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

12V

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

750kva silent diesel generator set

600kw adjustable voltage diesel generator

Cummins diesel generator set 50HZ

Product Description

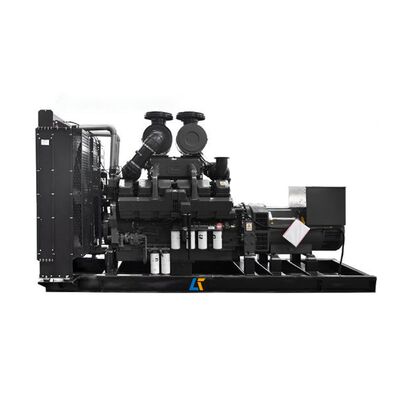

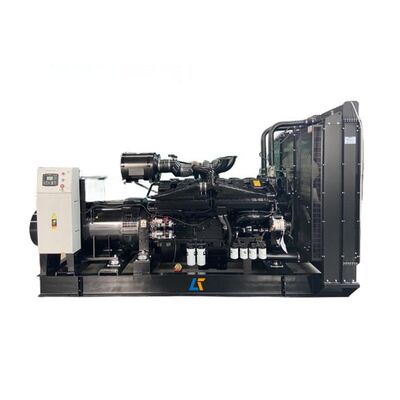

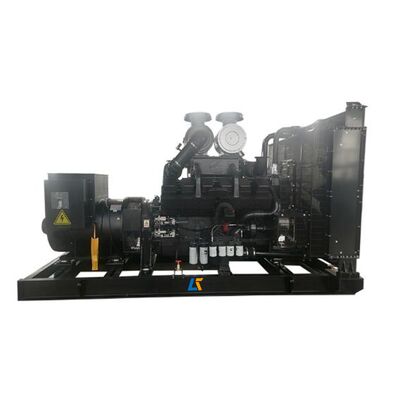

Diesel Generator Set 750kVA 600kW

Silent diesel generator set with diesel engine, 50Hz 1500RPM, featuring adjustable voltage configurations for reliable industrial power generation.

Product Overview

This 750kVA diesel generator features imported diesel engines with options for silent generator set configurations. Available in multiple voltage configurations including 380/220V, 400/230V, and 415/240V at 50Hz/1500RPM, or 60Hz/1800RPM with 220/127V, 380/220V, 440/254V options.

Configuration Options

Available in open type, weatherproof, soundproof, and trailer type configurations. ATS (Automatic Transfer Switch) available as optional equipment with controller brand options including UK Deepsea, Czech ComAp, Denmark DEIF, or Smartgen China.

Standard Components

Engine model KTA38-G2
Designed for 40℃ environmental temperature with water tank radiator
Driving belt cooling fans with fan safety shield
24V charging generators
Single bearing generator with IP23 protection, H insulation degree
Shock absorber system
Dry air filter, fuel filter, oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables and battery charger
Exhaust system with pipe, bellows, flange, and muffler set
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Generator Set

Genset Model	AC825
Rating Power (KW/KVA)	600/750
Standby Power (KW/KVA)	660/825
Rating Ammeter (A)	1154

Diesel Engine

Engine Model	KTA38-G2
Prime Power (KW/KVA)	664/903
Standby Power (KW/KVA)	731/994
Cylinder Configuration	12V
Bore × Stroke (mm)	159×159
Displacement (l)	38
Compression Ratio	14.5:1
Governor Type	Electronic governor
Rated RPM	1500

Performance Systems

Exhaust Gas Flow (m³/min)	143.8
Max Exhaust Temperature (℃)	479
Max Exhaust Back Pressure (KPA)	10
Aspiration Type	Turbo & Air-Air cooled
Max Intake Depression (mbar)	6
Combustion Air Volume (m³/min)	51
Rating Fuel Consumption (l/h)	167
75% Load Fuel Consumption (l/h)	125
Total Oil Capacity (l)	135
Max Oil Temperature (℃)	121
Oil Pressure at Rated RPM (KPA)	310-448
Total Coolant Capacity (l)	308
Max Coolant Temperature (℃)	103
Fan Cooling Air Flow (m³/min)	900

Alternator

Alternator Model	LVI634B
Rating Voltage (V)	400/230
Rating Capacity (KW/KVA)	600/750
Efficiency	93.8%
Power Factor	0.8
Exciting Type	Brushless self-exciter, AVR
Voltage Regulation	±0.5%
Phase Configuration	3 phase 4 wire
Enclosure Class	IP23
Insulation Class	H

Physical Specifications

Battery Capacity	2×150AH 12V
Dimensions (L×W×H mm)	4650×1630×2270
Net Weight (kg)	7000

Frequently Asked Questions

Do you offer OEM service?

Yes

What is your payment term?

30% T/T in advance, 70% balance when receiving B/L copy, or 100% irrevocable L/C at sight.

What is your lead time?

About 15-25 days after receiving advance deposit or original L/C.

What certificates do you have?

We have ISO certification and can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

What warranty do you provide?

One year or 1200 hours' running (whichever occurs first). During the guarantee period, we supply free replacement of easily damaged parts for problems not caused by incorrect operation. After expiration, we supply cost spare parts for genset maintenance.
