Complete Perkins Diesel Generator Set 220kW 275kVA With Exhaust System Including Muffler Flange Bellows And Exhaust Pipe

Brand Name:	AIKE POWER
Model Number:	AP200
MOQ:	1
Price:	negotiate
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

Perkins Diesel Generator Set

Alternator Model:

Leroysomer

Engine:

Perkins

Engine Model:

1106A-70TG3

Fuel:

Diesel

Options:

Silent Canopy/Trailer/ATS

Power Factor:

0.8lagging

Control Panel Brand:

Deif, Deepsea, Comap

Speed:

1500/1800 RPM

Insulation:

Class H

Voltage:

380/220V,400/230V,415/240V Adjustable

Circuit Breaker:

ABB,Chit,Delixi

Governor Type:

Electronic

Frequency:

50/60HZ

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

Perkins diesel generator set 220kW

275kVA diesel generator with exhaust system

Perkins generator set with muffler flange

Product Description

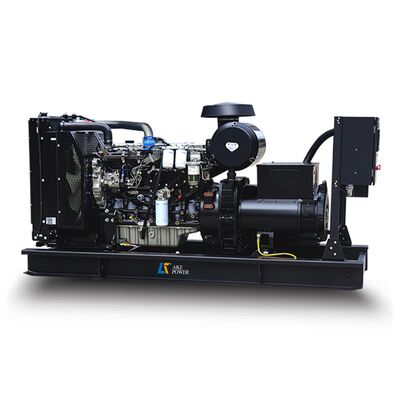

Complete Perkins Diesel Generator Set 220kW 275kVA

Professional Perkins diesel generator set with comprehensive exhaust system including muffler, flange, bellows, and exhaust pipe components.

Generator Specifications

Perkins Diesel Generator Set 144kW/180kVA
Perkins diesel power generator set designed for reliable performance in various configurations.

Technical Details:
• Perkins Diesel Engine
• Diesel Generator set 50Hz/1500RPM
• Voltage options: 380/220V, 400/230V, 415/240V (adjustable)

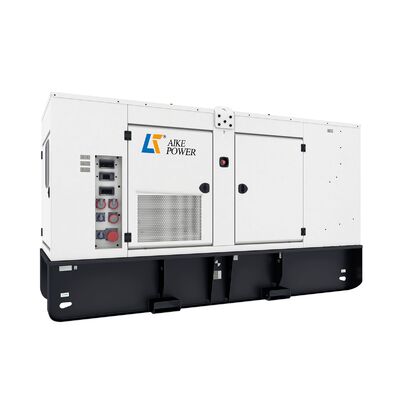

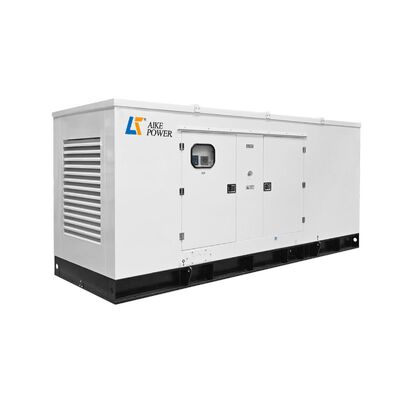

• Available configurations: Open Type, weatherproof type, soundproof type, trailer type
• 60Hz/1800RPM option available with voltages: 220/127V, 380/220V, 440/254V

Manufacturing Origins: Perkins engines available from China, UK, USA, and India depending on required model specifications.

Optional Features:
• Automatic Transfer Switch (ATS)
• Controller brands: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Standard Generator Components

Environmental temperature 40℃ water tank radiator with driving belt cooling fans and fan safety shield
24V charging generators
Single bearing generator with IP23 Grading Protection and H Insulation degree
Shock absorber system
Dry air filter, fuel filter, and oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system: exhaust pipe, bellows, flange, and muffler set
8-hour base fuel tank
Comprehensive documentation and manuals

Perkins Generator Set Models & Specifications

Model	Standby Power kVA/kW	Prime Power kVA/kW	Engine Model	Bore×Stroke (mm)	Fuel Consumption (L/h)	Weight (Kg)	Dimensions L×W×H (mm)
AP10	10/8	8/7	403A-11G1	77×81	3	359	1430×552×1150
AP14	14/11	13/10	403A-15G1	84×90	3.7	362	1430×552×1150
AP22	22/18	20/16	404A-22G1	80×100	5.3	467	1580×552×1150
AP33	33/26	30/24	1103A-33G	105×127	7.1	667	1580×720×1165
AP50	50/40	45/36	1103A-33TG1	105×127	10.7	730	1600×720×1180
AP66	66/53	60/48	1103A-33TG2	105×127	13.9	780	1600×720×1180
AP72	72/58	65/52	1104A-AATG1	105×127	14.8	800	1760×720×1180
AP88	88/71	80/64	1104A-44TG2	105×127	18.7	816	1760×720×1180
AP113	113/90	100/80	1104C-44TAG2	100×127	20.6	1100	2240×850×1380
AP150	150/120	135/108	1106-70TG1	100×127	31.5	1250	2240×850×1380
AP165	165/132	150/120	1106-70TG2	100×127	41	1300	2240×850×1380
AP200	200/158	180/144	1106A-70TG3	105×127	40.2	1360	2345×850×1400
AP225	225/183	200/160	1106A-70TAG4	117×136	45	2170	2430×960×1590
AP275	275/220	250/200	1506A-E88TAG2	117×136	48	2170	2430×960×1590
AP300	300/240	275/220	1506A-E88TAG3	117×136	45	2170	2430×960×1590
AP330	330/264	300/240	1506A-E88TAG4	117×146	56	2200	3000×1100×1700
AP400	400/320	350/280	1506A-E88TAG5	117×146	60	2200	3000×1100×1700
AP450	450/360	400/320	2206C-E13TAG2	130×157	71	3300	3100×1120×1800
AP500	500/400	455/364	2206C-E13TAG3	130×157	81	3400	3100×1120×1800
AP550	550/440	500/400	2506C-E15TAG1	137×171	95	3800	3300×1150×2050
AP660	660/528	600/480	2506C-E13TAG2	137×171	100	3950	3300×1150×2050
AP700	700/560	625/500	2806A-E18TAG1A	145×183	123	4710	3500×1150×2190
AP800	800/640	725/580	2806A-E18TAG2	145×183	132	4710	3500×1150×2190
AP900	900/720	800/640	4006-23TAG2A	160×190	157	5020	4200×1470×2200
AP1000	1000/800	900/720	2006-23TAG3A	160×190	172	5220	4400×1470×2200
AP1100	1100/880	1000/800	4008-TAG1A	160×190	195	7320	4800×2050×2450
AP1375	1375/1100	1250/1000	4008-TAG2A	160×190	226	7611	4800×2050×2450
AP1500	1500/1200	1350/1080	4012-46TWG2A	160×190	259	9154	5000×2120×2760
AP1500	1500/1200	1350/1080	4012-46TAG1A	160×190	283	11200	5000×2120×2760
AP1650	1650/1320	1500/1200	4012-46TWG3A	160×190	283	11200	5000×2120×2760
AP1875	1875/1500	1710/1368	4012-46TAG2A	160×190	301	12000	5200×2240×2870
AP2000	2000/1600	1850/1480	4016-46TAG3A	160×190	370	13200	5600×2240×2870
AP2000	2000/1600	1850/1480	4016-TAG1A	160×190	424	15430	5930×2300×3010
AP2250	2250/1800	2000/1600	4016-61TRG1	160×190	424	15430	5930×2300×3010
AP2255	2255/1800	2000/1600	4016-TAG2A	160×190	434	15430	5930×2300×3010
AP2500	2500/2000	2250/1800	4016-61TRG2	160×190	483	15960	6400×2300×3010
AP2750	2750/2200	2500/2000	4016-61TRG3	160×190	528	15960	6500×2300×3010

Frequently Asked Questions

Do you offer OEM service?

Yes

What is your payment term?

30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

What is your lead time?

About 15-25 days after receiving advance deposit or original L/C.

What certificates do you have?

We have ISO certification and can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

What warranty do you provide?

One year or 1200 hours' running (whichever occurs first). During the guarantee period, we supply free easily damaged parts for possible problems except for incorrect operation. After expiration, we supply cost spare parts for genset maintenance.
