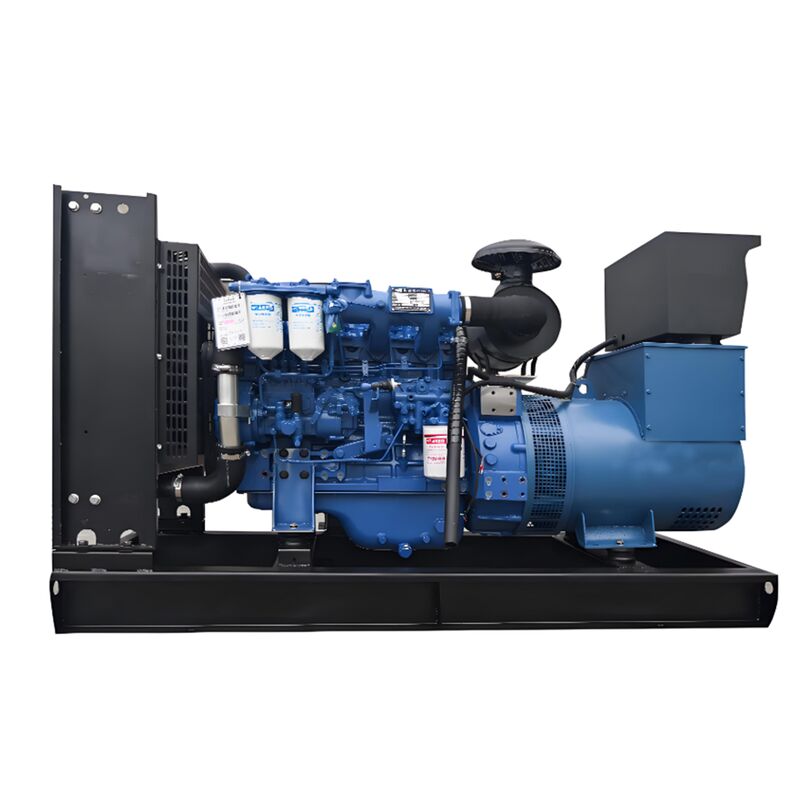

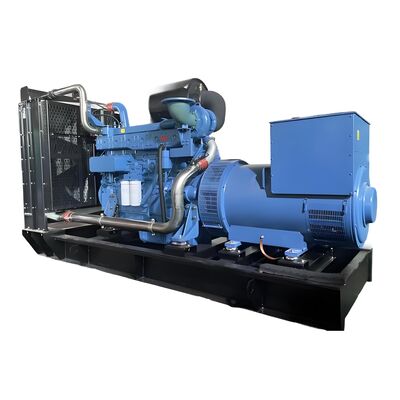

Yuchai 800kW 1000kVA 50Hz Standby Prime Diesel Generator for Large Industry

Name: Yuchai 800kW 1000kVA 50Hz Standby Prime Diesel Generator for Large Industry
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AY625
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AY625
MOQ:	1
Price:	USD
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

Yuchai Power Generator

Alternator Type:

Brushless, Self-exciting, AVR

Control Panel:

ComAp,Deif,Deepsea

Controller Type:

Digital

Engine Model:

YC6TD780-D30

Engine Type:

6 Cylinders In Line

Model:

AY625

Rated Power:

5KAW~3000KW

Speed:

1500rpm

Start Method:

Electric Start

Style:

Open-shelf

Frequency:

50Hz

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Yuchai 800kW diesel generator

1000kVA standby diesel generator

industrial prime power generator

Product Description

Yuchai 800kW 1000kVA 50Hz Standby Prime Diesel Generator for Large Industry

Yuchai Power Generator 450KW/562KVA 50HZ 1500RPM Diesel Engine Generator. This industrial-grade power solution features high-voltage YC6TD780-D30 engine technology with versatile configuration options for global applications.

Power Configuration Options

Available in 50HZ/1500RPM configuration with adjustable voltage options: 380/220V, 400/230V, 415/240V. Also available in 60HZ/1800RPM with voltage options: 220/127V, 380/220V, 440/254V.

Available Configurations

Open Type
Weatherproof Type
Soundproof Type
Trailer Type

Optional Components

ATS Options: ABB, Schneider Electric, SOCOMEC & Delixi brands
Controller Options: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Components

Yuchai Engine
Radiator for 40℃ environmental temperature with belt-driven cooling fans and safety shield
24V charging generator
Single bearing generator with IP23 protection and H insulation
Shock absorber system
Dry air filter, fuel filter, and oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system with muffler
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Generator Set

Genset Model	AY625
Rating Power (KW/KVA)	450/562
Standby Power (KW/KVA)	500/625
Rating Ammeter (A)	816

Diesel Engine

Engine Model	YC6TD780-D30
Prime Power (KW/KVA)	356/445
Number of Cylinders	6 cylinders in line
Bore * Stroke (mm)	152 * 180
Displacement (l)	19.598
Compression Ratio	14:1
Governor Type	Electric start
Rated RPM	1500

Exhaust System

Exhaust Gas Flow (m³/min)	33
Max. Exhaust Gas Temperature (℃)	550

Fuel System

Rating Fuel Consumption (l/h)	117
75% Load Fuel Consumption (l/h)	87.75

Dimensions & Weight

Generator Set Dimensions (LWH mm)	3303 * 1500 * 2000
Generator Set Net Weight (kg)	4130

Frequently Asked Questions

Do you offer OEM service?

Yes

What is your payment term?

30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

What is your lead time?

About 15-25 days after receiving advance deposit or original L/C.

What certificates do you have?

We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

What warranty do you provide?

One year or 1200 running hours (whichever occurs first). During warranty period, we supply free replacement for defective parts (excluding damage from incorrect operation). After warranty expiration, we provide spare parts at cost for maintenance.
