Cummins 500kW 625kVA Silent Diesel Generator For Sale In Africa Factory Price Industrial Backup Power Generator With ATS System

Cummins 500kW 625kVA Silent Diesel Generator For Sale In Africa Factory Price Industrial Backup Power Generator With ATS System

Brand Name:	AIKE POWER
Model Number:	AC625
MOQ:	1
Price:	USD
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cummins Engine Model:

KTAA19-G5

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

6 Cylinders In Line

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Alternator Model:

HCI544C

Name:

Cummins Diesel Generator Set

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Product Description

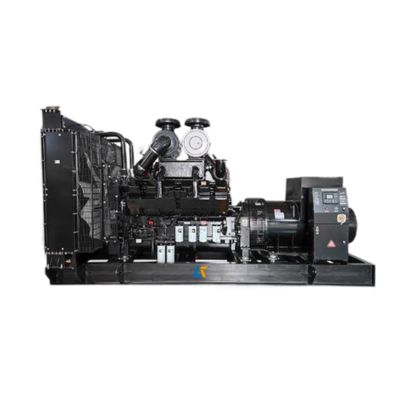

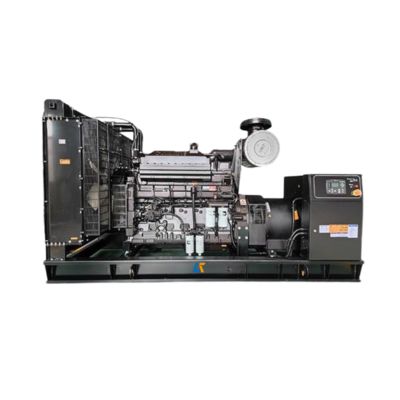

Cummins 500kW 625kVA Diesel Generator - Industrial Backup Power Solution

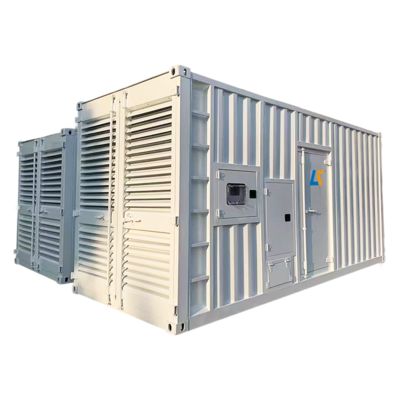

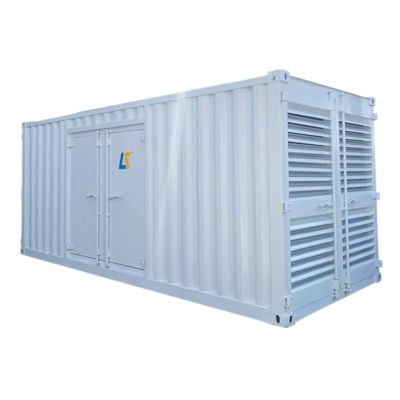

This Cummins diesel generator set features a robust KTAA19-G5 engine with multiple voltage options (50Hz/1500RPM: 380/220V, 400/230V, 415/240V or 60Hz/1800RPM: 220/127V, 380/220V, 440/254V). Available in open type, weatherproof, soundproof, or trailer-mounted configurations with optional ATS and premium controller brands (Deepsea UK, ComAp Czech, DEIF Denmark, Smartgen China).

Standard Configuration

Dongfeng Cummins Engine (Model KTAA19-G5)
40℃ environment-rated water tank radiator with belt-driven cooling fans and safety shield
24V charging generator
Single bearing generator with IP23 protection and H insulation class
Shock absorber system
Complete filtration system (dry air, fuel, and oil filters)
Power output circuit breaker
Standard control panel
12V battery with connection cables and charger
Complete exhaust system (pipe, bellows, flange, muffler)
8-hour base fuel tank
Full documentation and manuals

Technical Specifications

Generator Set
Genset Model	AC625
Rating Power (KW/KVA)	450/562.5
Standby Power (KW/KVA)	500/625
Rating Ammeter (A)	812
Diesel Engine
Engine Model	KTAA19-G5
Prime Power (KW/KVA)	470/639
Standby Power (KW/KVA)	555/754
Cylinder Configuration	6 cylinders in line
Bore * Stroke (mm)	159 * 159
Displacement (l)	19
Compression Ratio	13.9:1
Governor Type	Electronic governor
Rated RPM	1500
Exhaust System
Exhaust Gas Flow (m³/min)	103.2
Max. Exhaust Gas Temperature (℃)	450
Max. Exhaust Back Pressure (KPA)	10
Air Intake System
Aspiration Type	Turbo & Air-Air cooled
Max. Intake Depression (mbar)	6
Combustion Air Volume (m³/min)	40.3
Fuel System
Rating Fuel Consumption (l/h)	117
75% Full Fuel Consumption (l/h)	119
Lubrication System
Total Oil Capacity (l)	50
Max Permissible Oil Temp (℃)	121
Oil Pressure at Rated RPM (KPA)	241-345
Cooling System
Total Coolant Capacity (l)	91
Max. Temperature of Coolant (℃)	100
Fan Cooling Air Flow (m³/min)	735
Alternator
Alternator Model	HCI544C
Rating Voltage (V)	400/230
Rating Capacity (KW/KVA)	480/600
Efficiency (%)	93.8%
Power Factor	0.8
Exciting Type	Brushless self-exciter, AVR
Voltage Regulation	±0.5%
No. of Phase	3 phase 4 wire
Enclosure Class	IP23
Class of Insulation	H
Battery
Rating Capacity (AH)	2 * 200AH 12V
Dimensions & Weight
Generator Set Dimensions (LWH)	3750 * 1500 * 1900 mm
Generator Set Net Weight (kg)	5000

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 hours' running (whichever occurs first). During warranty period, we supply free replacement for easily damaged parts (excluding incorrect operation). After expiration, we provide cost spare parts for maintenance.
