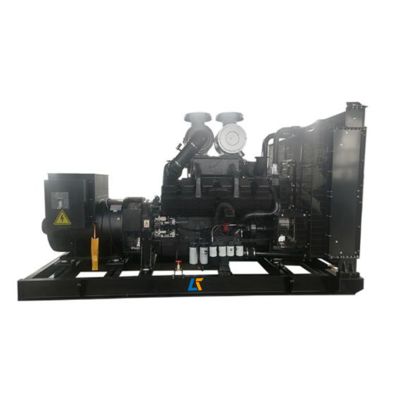

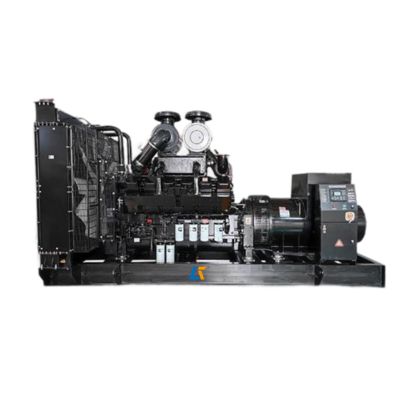

Cummins Diesel Generator Set 600kW 750kVA Heavy Duty Standby Power with KTA38-G2 Engine and 12V Cylinder

Cummins Diesel Generator Set 600kW 750kVA Heavy Duty Standby Power with KTA38-G2 Engine and 12V Cylinder

Brand Name:	AIKE POWER
Model Number:	AC825
MOQ:	1
Price:	USD
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Cummins Engine Model:

KTA38-G2

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

12V

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

600kW Cummins Diesel Generator

750kVA Cummins Generator Set

KTA38-G2 Engine Diesel Generator Set

Product Description

Cummins 600kW 750kVA Diesel Generator Heavy Duty Standby Power Generator For Factory Hospital Data Center Backup Supply

Product Description

High-performance Cummins diesel generator set designed for reliable standby power in industrial, medical, and critical infrastructure applications.

Key Specifications

Cummins Diesel Engine, Diesel Generator set 50HZ/1500RPM
Adjustable voltage options: 380/220V, 400/230V, 415/240V
Available configurations: Open Type, weatherproof, soundproof, and trailer type
Optional 60HZ/1800RPM with voltage options: 220/127V, 380/220V, 440/254V
Optional ATS (Automatic Transfer Switch) available
Controller brands: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Components

Dongfeng Cummins Engine, model KTA38-G2
Radiator designed for environmental temperatures up to 40℃ with driving belt cooling fans and fan safety shield
24V charging generators
Single bearing generator with IP23 Grading Protection and H Insulation degree
Shock absorber system
Dry air filter, Fuel filter, Oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery Charger
Complete exhaust system including pipe, bellows, flange, and muffler set
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Generator Set

Genset Model	AC825
Rating Power (KW/KVA)	600/750
Standby Power(KW/KVA)	660/825
Rating Ammeter(A)	1154

Diesel Engine

Engine model	KTA38-G2
Prime Power(KW/KVA)	664/903
Standby Power(KW/KVA)	731/994
Number of Cylinder & Configuration	12V
Bore X Stroke (mm)	159X159
Displacement(l)	38
Compression Ratio	14.5:1
Governor type	Electronic governor
Rated RPM	1500

Exhaust System

Exhaust gas flow(m³/min)	143.8
Max. Exhaust Gas Temperature(℃)	479
Max. Exhaust back Pressure(KPA)	10

Air Intake System

Aspiration Type	Turbo & Air-Air cooled
Max. intake depression(mbar)	6
Combustion air Volume(m³/min)	51

Fuel System

Rating Fuel Consumption(l/h)	167
75% full Fuel Consumption(l/h)	125

Lubrication System

Total oil capacity(l)	135
Max permissible oil temp(℃)	121
Oil pressure at rated rpm(KPA)	310-448

Cooling System

Total Coolant capacity(l)	308
Max. temperature of coolant(℃)	103
Fan cooling air flow (m³/min)	900

Alternator

Alternator model	LVI634B
Rating Voltage(V)	400/230
Rating Capacity(KW/KVA)	600/750
Eff.%	93.8%
Power Factor	0.8
Exciting type	Brushless self-exciter, AVR
Voltage regulation	±0.5%
No. of Phase	3 phase 4 wire
Enclosure Class	IP23
Class of Insulation	H

Battery

Rating Capacity(AH)

2X150AH 12V

Dimensions & Weight

Generator set dimension (LXWXH)	4650x1630x2270
Generator set Net Weight (kg)	7000

Frequently Asked Questions

Do you offer OEM service?

Yes

What is your payment term?

30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

What is your lead time?

About 15-25 days after receiving advance deposit or original L/C.

What certificates do you have?

We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

What warranty do you provide?

One year or 1200 hours' running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
