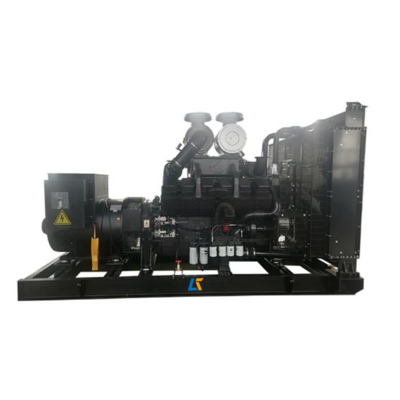

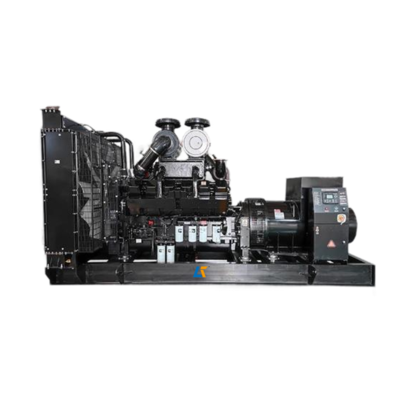

600kw 750kva Cummins Diesel Generator Set with KTA38-G2 Engine for Industrial Power Supply

600kw 750kva Cummins Diesel Generator Set with KTA38-G2 Engine for Industrial Power Supply

Brand Name:	AIKE POWER
Model Number:	AC825
MOQ:	1
Price:	USD
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Cummins Engine Model:

KTA38-G2

Cooling System:

Water Cooled

Cooling Way:

Water

Cylinder:

12V

Excitation Way:

Brushless Self-exciter, AVR

Governor Type:

Electronic Governor

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

600kw Cummins Diesel Generator

750kva Diesel Generator Set

KTA38-G2 Engine Gen Power Diesel Generator

Product Description

Cummins Diesel Generators 600kw 750kva Gen Power Diesel Generator

750kVA Cummins Diesel Generator Imported, featuring Diesel Engines with Silent Diesel Generator Set technology from Gen Power.

Product Specifications

Cummins Diesel Engine, Diesel Generator set 50HZ/1500RPM, with adjustable voltage options: 380/220V, 400/230V, 415/240V. Available in Open Type, weatherproof type, soundproof type, and trailer type configurations. Also available in 60HZ/1800RPM with voltage options: 220/127V, 380/220V, 440/254V.

ATS (Automatic Transfer Switch) available as optional equipment.

Controller brands: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China.

Generator Standard Components

Dongfeng Cummins Engine, model KTA38-G2
Radiator designed for environmental temperatures up to 40℃ with driving belt cooling fans and fan safety shield
24V charging generators
Single bearing generator with IP23 Grading Protection and H Insulation degree
Shock absorber system
Dry air filter, Fuel filter, Oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery Charger
Complete exhaust system including pipe, bellows, flange, and muffler set
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Generator Set
Genset Model	AC825
Rating Power (KW/KVA)	600/750
Standby Power(KW/KVA)	660/825
Rating Ammeter(A)	1154
Diesel Engine
Engine model	KTA38-G2
Prime Power(KW/KVA)	664/903
Standby Power(KW/KVA)	731/994
Number of Cylinder & Configuration	12V
Bore X Stroke (mm)	159X159
Displacement(l)	38
Compression Ratio	14.5:1
Governor type	Electronic governor
Rated RPM	1500
Exhaust System
Exhaust gas flow(m³/min)	143.8
Max. Exhaust Gas Temperature(℃)	479
Max. Exhaust back Pressure(KPA)	10
Air Intake System
Aspiration Type	Turbo & Air-Air cooled
Max. intake depression(mbar)	6
Combustion air Volume(m³/min)	51
Fuel System
Rating Fuel Consumption(l/h)	167
75% full Fuel Consumption(l/h)	125
Lubrication System
Total oil capacity(l)	135
Max permissible oil temp(℃)	121
Oil pressure at rated rpm(KPA)	310-448
Cooling System
Total Coolant capacity(l)	308
Max. temperature of coolant(℃)	103
Fan cooling air flow (m³/min)	900
Alternator
Alternator model	LVI634B
Rating Voltage(V)	400/230
Rating Capacity(KW/KVA)	600/750
Eff.%	93.8%
Power Factor	0.8
Exciting type	Brushless self-exciter, AVR
Voltage regulation	±0.5%
No. of Phase	3 phase 4 wire
Enclosure Class	IP23
Class of Insulation	H
Battery
Rating Capacity(AH)	2X150AH 12V
Dimensions & Weight
Generator set dimension (LXWXH)	4650x1630x2270
Generator set Net Weight (kg)	7000

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 hours' running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
