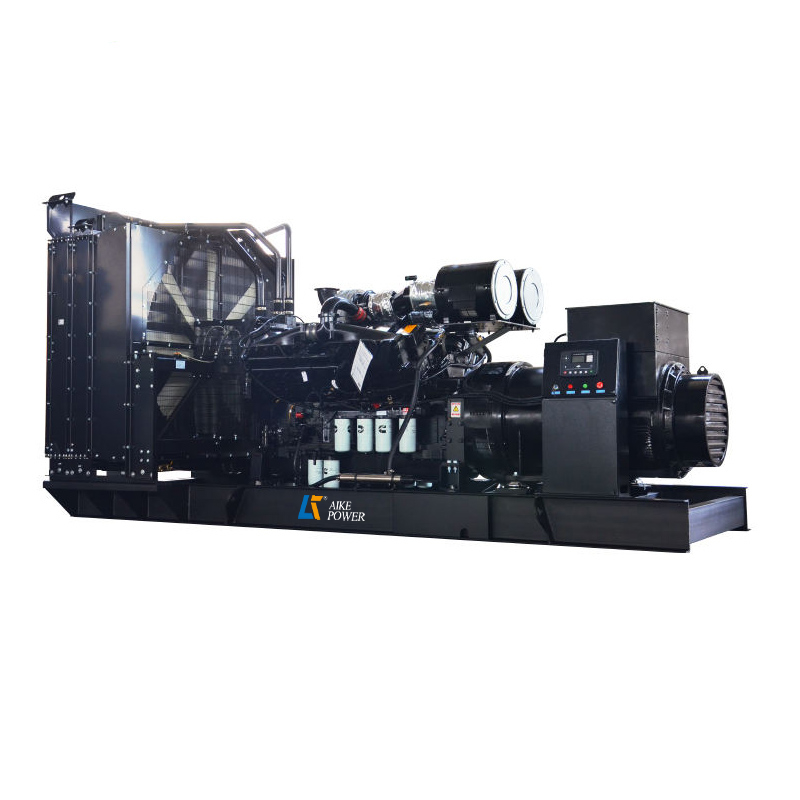

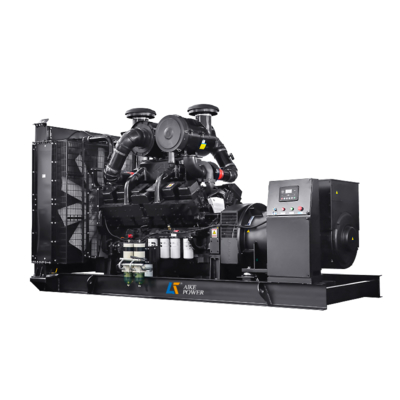

Cummins 1500 KVA Water Cooled Diesel Generator 1200KW

Cummins 1500 KVA Water Cooled Diesel Generator 1200KW

Brand Name:	AIKE POWER
Model Number:	AY1688
MOQ:	1
Price:	negotiate
Payment Terms:	L/C,T/T
Supply Ability:	1000 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO

Cummins Engine Model:

YC12VTD2070-D32

Name:

Cummins 1500 KVA Diesel Generator

Cooling System:

Water Cooled

Cylinder:

Excitation Way:

Brushless Self-exciter, AVR

Installation Method:

Fixed

Insulation Class:

Numner Of Cylinder:

6 Cylinders In Line

Governor Type:

Electronic Governor

Power Range:

From 20 KW To 2000 KW

Rate:

1500rpm

Rated Power:

20 KW-2000 KW

Packaging Details:

plastic wrap or wooden case

Supply Ability:

1000 set/m

Highlight:

Cummins 1500 KVA diesel generator

water cooled diesel generator 1200KW

Cummins diesel generator set with warranty

Product Description

Water Cooled Cummins 1500 KVA Diesel Generator

Cummins Diesel Engine, Diesel Generator set YC12VTD2070-D32

60HZ/1500RPM, 380/220V, 400/230V, 415/240V (adjustable). Available in Open Type, weatherproof type, soundproof type, or trailer type configurations.

Optional configurations: 60HZ/1800RPM with voltage options of 220/127V, 380/220V, or 440/254V.

Automatic Transfer Switch (ATS) available as optional equipment.

Controller brands: UK Deepsea, Czech ComAp, Denmark DEIF, or Smartgen China.

Generator Standard Components

Dongfeng Cummins Engine, model YC12VTD2070-D32
40℃ water tank radiator with driving belt cooling fans and fan safety shield
24V charging generators
Single bearing generator with IP23 protection and H insulation degree
Shock absorber system
Dry air filter, fuel filter, and oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system with pipe, bellows, flange, and muffler set
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Model	Standby Power (kVA/kW)	Prime Power (kVA/kW)	Engine Model	Bore×Stroke (mm)	Fuel Consumption (L/h)	Weight (Kg)	Lube Volume (L)	Dimensions (LxWxH mm)
AC28	28/23	26/21	4B3.9-G1	102×120	6.5	885	10.9	1600×830×1200
AC35	35/28	31/25	4B3.9-G1	102×120	6.8	885	10.9	1600×830×1200
AC2475	2475/1980	2250/1800	QSK60-G4	159×159	394	16644	280	6090×2282×2612

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 running hours (whichever occurs first). During warranty period, we supply free replacement for defective parts (excluding incorrect operation damage). After warranty, we provide cost spare parts for maintenance.
