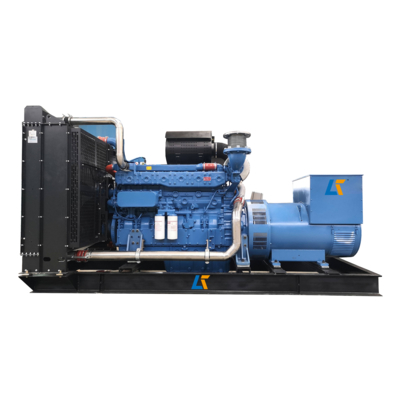

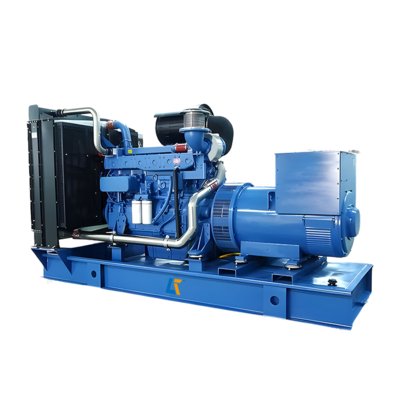

Yuchai 450KW Diesel Generator Set 50Hz 1500RPM AY625 Model

Name: Yuchai 450KW Diesel Generator Set 50Hz 1500RPM AY625 Model
Brand: Guangdong Aike Power Technology Co., Ltd
SKU: AY625
Availability: InStock

Brand Name:	AIKE POWER
Model Number:	AY625
MOQ:	1
Price:	USD
Supply Ability:	20 set/m

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO,OEM

Name:

Yuchai Power Generator

Alternator Type:

Brushless, Self-exciting, AVR

Control Panel:

ComAp,Deif,Deepsea

Controller Type:

Digital

Engine Model:

YC6TD780-D30

Engine Type:

6 Cylinders In Line

Model:

AY625

Rated Power:

5KAW~3000KW

Speed:

1500rpm

Start Method:

Electric Start

Style:

Open-shelf

Frequency:

50Hz

Packaging Details:

plastic wrap

Supply Ability:

20 set/m

Highlight:

Yuchai 450KW diesel generator set

50Hz diesel generator with warranty

AY625 model diesel generator set

Product Description

Yuchai Power Generator 450KW/562KVA 50HZ 1500RPM Diesel Engine Generator

Power Diesel Generator, 450kw Diesel Generator, Quiet Diesel Generator

Yuchai power generator set with high voltage YC6TD780-D30 engine. Available in 50HZ/1500RPM configuration with adjustable voltage options: 380/220V, 400/230V, 415/240V. Also available in 60HZ/1800RPM with voltage options: 220/127V, 380/220V, 440/254V.

Available in multiple configurations: Open Type, weatherproof type, soundproof type, and trailer type.

Optional Components

ATS options: ABB, Schneider Electric, SOCOMEC & Delixi brands
Controller options: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China

Generator Standard Components

Yuchai Engine
Radiator for 40℃ environmental temperature with belt-driven cooling fans and safety shield
24V charging generator
Single bearing generator with IP23 protection and H insulation
Shock absorber system
Dry air filter, fuel filter, and oil filter
Power output circuit breaker
Standard control panel
12V battery with connection cables
Battery charger
Complete exhaust system with muffler
8-hour base fuel tank
Complete documentation and manuals

Technical Specifications

Generator Set
Genset Model	AY625
Rating Power (KW/KVA)	450/562
Standby Power (KW/KVA)	500/625
Rating Ammeter (A)	816
Diesel Engine
Engine Model	YC6TD780-D30
Prime Power (KW/KVA)	356/445
Number of Cylinders	6 cylinders in line
Bore × Stroke (mm)	152 × 180
Displacement (l)	19.598
Compression Ratio	14:1
Governor Type	Electric start
Rated RPM	1500
Exhaust System
Exhaust Gas Flow (m³/min)	33
Max. Exhaust Gas Temperature (℃)	550
Fuel System
Rating Fuel Consumption (l/h)	117
75% Load Fuel Consumption (l/h)	87.75
Dimensions & Weight
Generator Set Dimensions (L×W×H mm)	3303 × 1500 × 2000
Generator Set Net Weight (kg)	4130

Frequently Asked Questions

Q: Do you offer OEM service?

A: Yes

Q: What is your payment term?

A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.

Q: What is your lead time?

A: About 15-25 days after receiving advance deposit or original L/C.

Q: What certificates do you have?

A: We have ISO certification and can apply for country-specific certificates including SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.

Q: What warranty do you provide?

A: One year or 1200 running hours (whichever occurs first). During warranty period, we supply free replacement for defective parts (excluding damage from incorrect operation). After warranty expiration, we provide spare parts at cost for maintenance.
